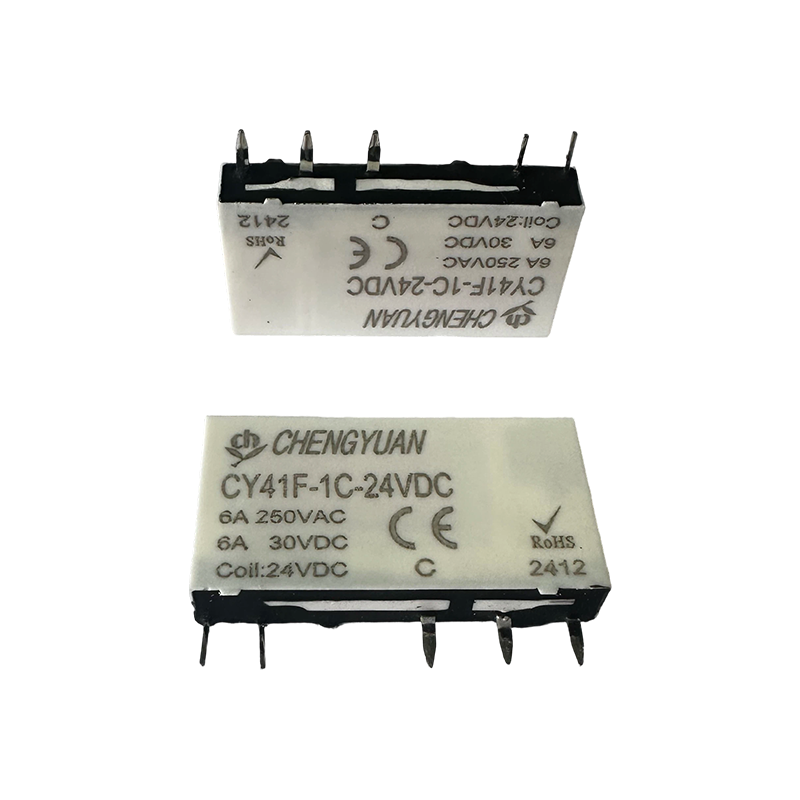

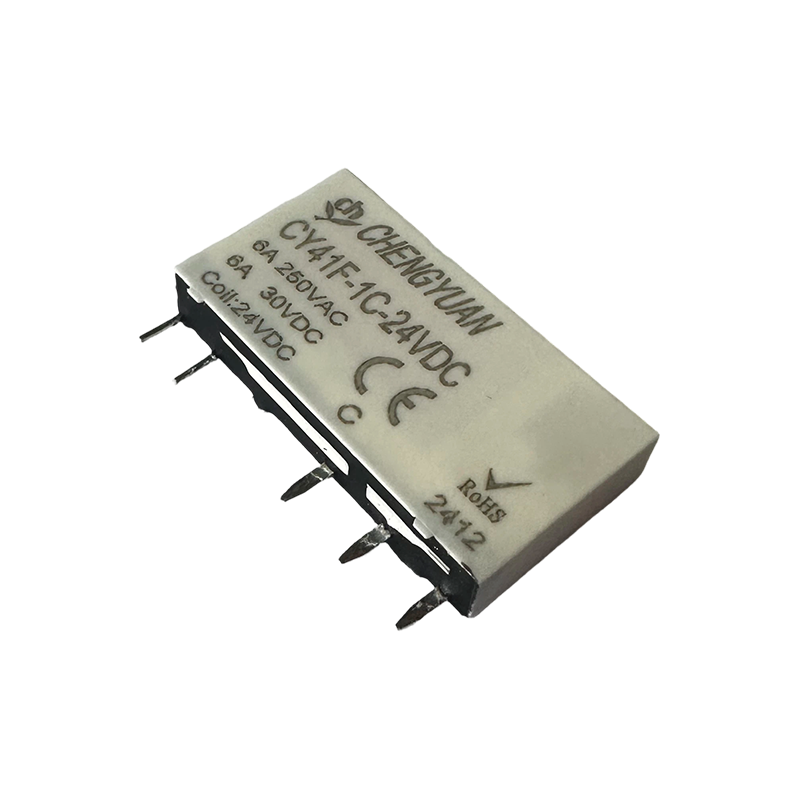

Features:
● Ultra-thin (only 5mm wide)
● 6A contact switching capacity
● Dielectric voltage between coil and contacts: 4kV
● Surge voltage resistance between coil and contacts: 6kV
● Meets VDE0700/0631 reinforced insulation requirements
● High sensitivity, power consumption approximately 0.17W
Applicable Scenarios:
● Home Appliances: Power control for high-power small appliances such as electric heaters and induction cookers
● Industrial Control: Automation equipment, small PLCs, motor control circuits
● Smart Power Equipment: Smart distribution boxes, auxiliary control of charging piles
● Security Equipment: Monitoring power supplies, access control system circuit switching
Contact Parameters
|
Contact Configuration
|
1H, 1Z
|
|
Contact Resistance (1)
|
Gold-plated contacts: ≤ 30mΩ (1A 6VDC); Non-gold-plated contacts: ≤ 100mΩ (1A 6VDC)
|
|
Contact Material
|
AgSnO₂, AgNi
|
|
Contact Load (Resistive)
|
6A 250VAC / 30VDC
|
|
Maximum Switching Voltage
|
400VAC / 300VDC
|
|
Maximum Switching Current
|
6A
|
|
Maximum Switching Power
|
1500VA / 180W
|
|
Minimum Load (2)
|
Non-gold-plated: 5VDC 100mA; Gold-plated: 5VDC 10mA
|
|
Mechanical Durability (3)
|
1×10⁷ cycles
|
|
Electrical Durability
|
H type: 6×10⁴ cycles (AgNi, 6A 250VAC/30VDC, resistive load, 85℃, 1s on 9s off)Z type: 3×10⁴ cycles (NO, AgNi, 6A 250VAC/30VDC, resistive load, 85℃, 1s on 9s off); 1×10⁴ cycles (NC, AgNi, 6A 250VAC/30VDC, resistive load, 85℃, 1s on 9s off)
|
Notes:
(1) All the above values are initial values.
(2) The above minimum load is a reference value, applicable to normal temperature, humidity, and pressure environments with pins facing up. This reference value may change according to switching frequency, environmental conditions, expected service life, and installation direction. Therefore, please conduct confirmation tests with actual loads before use, and it is recommended to avoid use below zero degrees Celsius.
(3) No-load test, no mechanical damage after the test.
Coil Parameters
|
Rated Coil Power
|
5VDC ~ 24VDC: Approximately 170mW
|
|
48VDC, 60VDC: Approximately 210mW
|
Note:
(1) For loads without a specified temperature in the table, the ambient temperature is room temperature.
Performance Parameters
|
Parameter
|
Specification
|
|
Insulation Resistance
|
1000MΩ (500VDC)
|
|
Dielectric Withstand Voltage
|
Between Coil and Contacts
|
4000VAC for 1min
|
|
Between Open Contacts
|
1000VAC for 1min
|
|
Operate Time (at rated voltage)
|
≤ 8ms
|
|
Release Time (at rated voltage)
|
≤ 4ms
|
|
Shock * (1)
|
Stability
|
49m/s²
|
|
Strength
|
980m/s²
|
|
Vibration * (1)
|
10Hz ~ 55Hz, 1mm double amplitude
|
|
Humidity
|
5% ~ 85% RH
|
|
Temperature Range
|
-40℃ ~ 85℃
|
|
Terminal Type
|
PCB type
|
|
Weight
|
Approximately 5g
|
|
Packaging Type
|
Plastic-sealed type, solder-resistant type
|
|
Rated Voltage (VDC)
|
Operate Voltage (VDC) (1)
|
Release Voltage (VDC) (1)
|
Maximum Voltage (VDC) (2)
|
Coil Resistance
|
|
5
|
≤ 3.75
|
≥ 0.25
|
7.5
|
147×(1±10%)Ω
|
|
6
|
≤ 4.50
|
≥ 0.30
|
9.0
|
212×(1±10%)Ω
|
|
9
|
≤ 6.75
|
≥ 0.45
|
13.5
|
476×(1±10%)Ω
|
|
12
|
≤ 9.00
|
≥ 0.60
|
18
|
848×(1±10%)Ω
|
|
18
|
≤ 13.5
|
≥ 0.90
|
27
|
1906×(1±15%)Ω
|
|
24
|
≤ 18.0
|
≥ 1.20
|
36
|
3390×(1±15%)Ω
|
|
48 (3)
|
≤ 36.0
|
≥ 2.40
|
72
|
10600×(1±15%)Ω
|
|
60 (3)
|
≤ 45.0
|
≥ 3.00
|
90
|
16600×(1±15%)Ω
|
