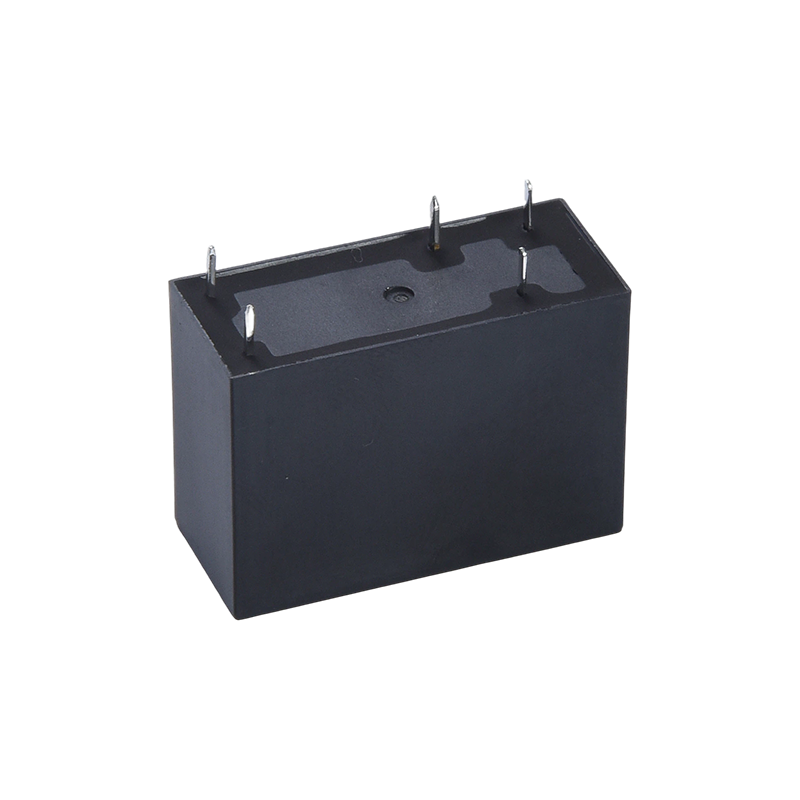

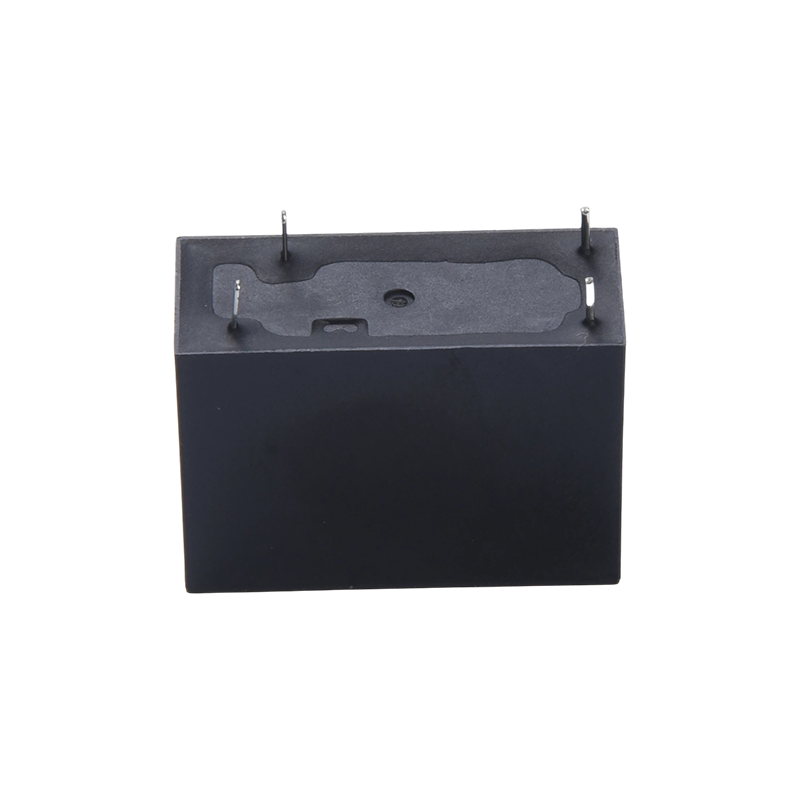

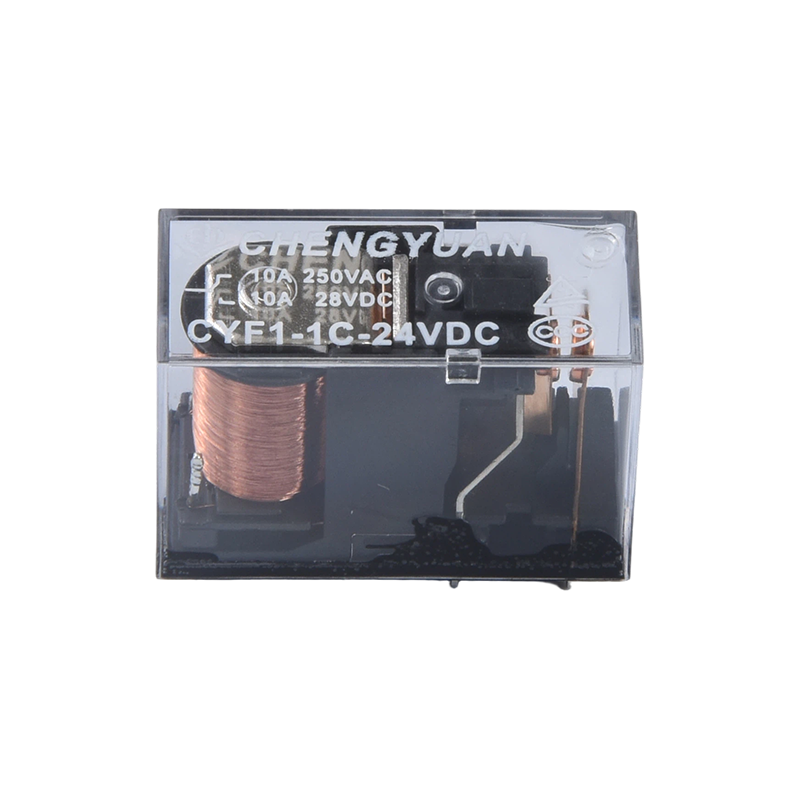

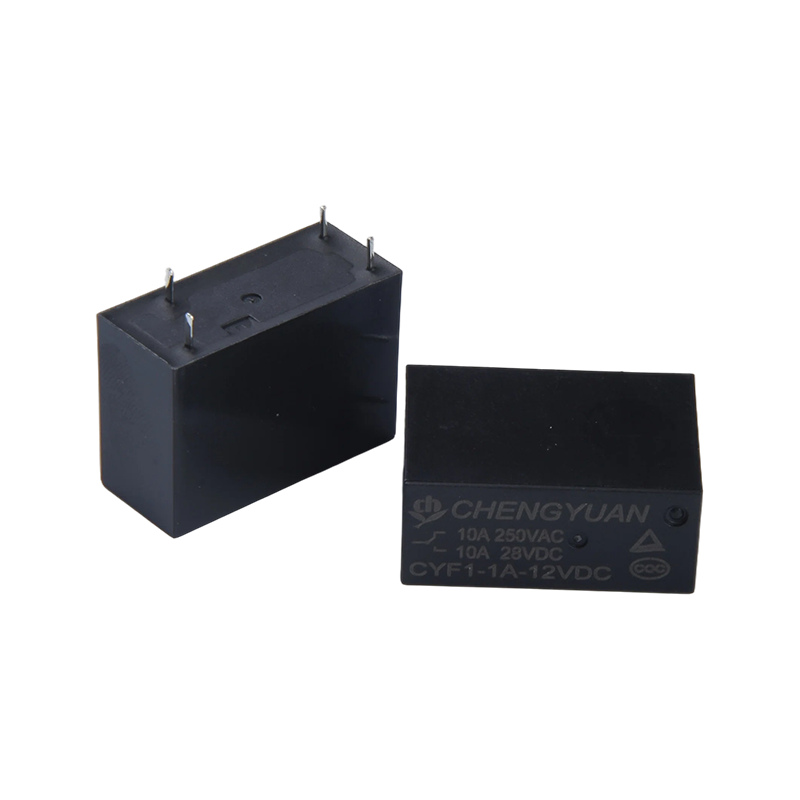

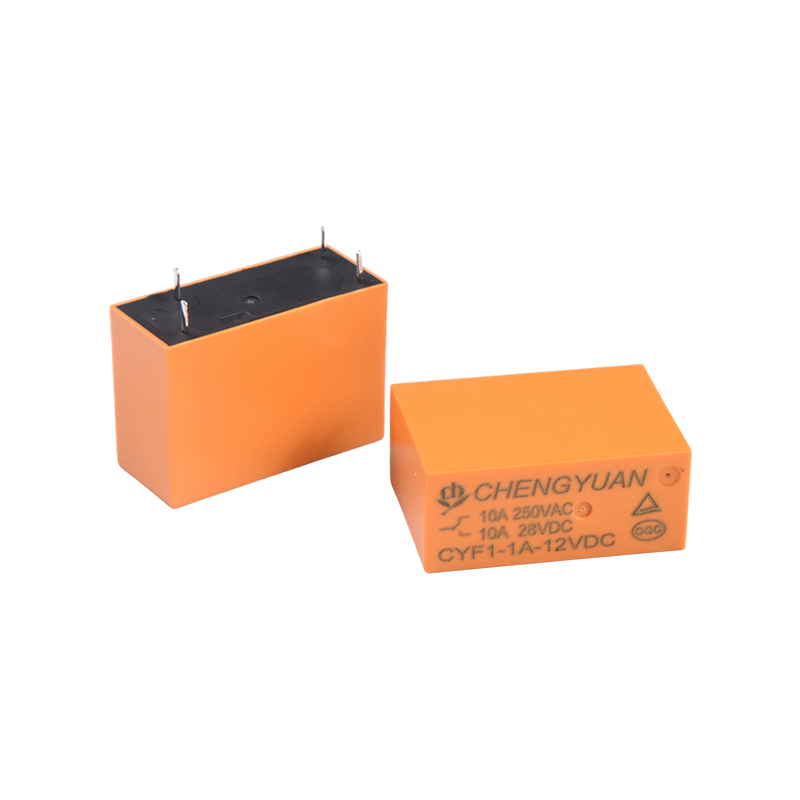

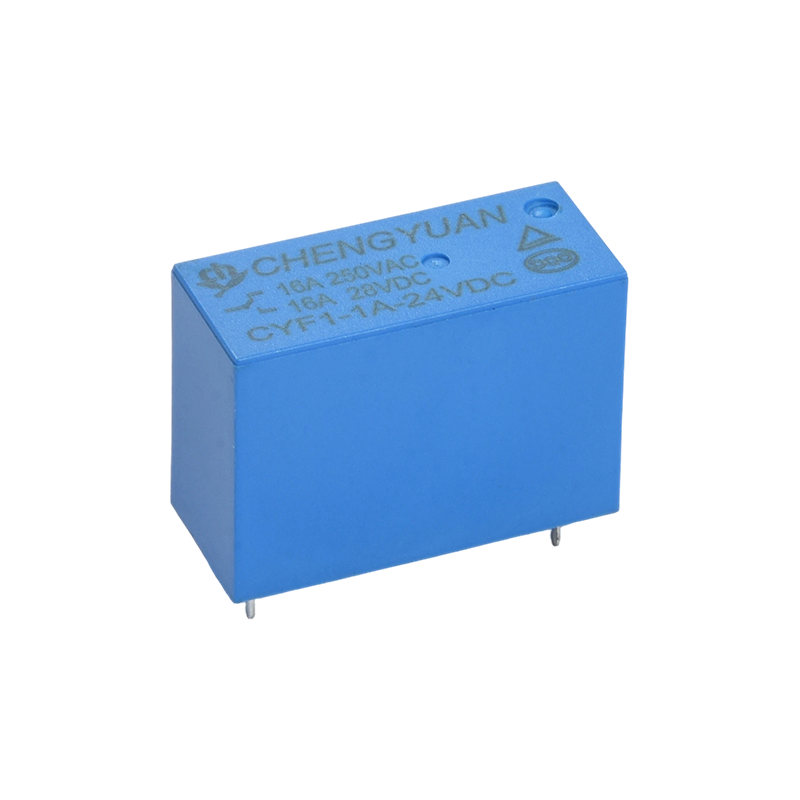

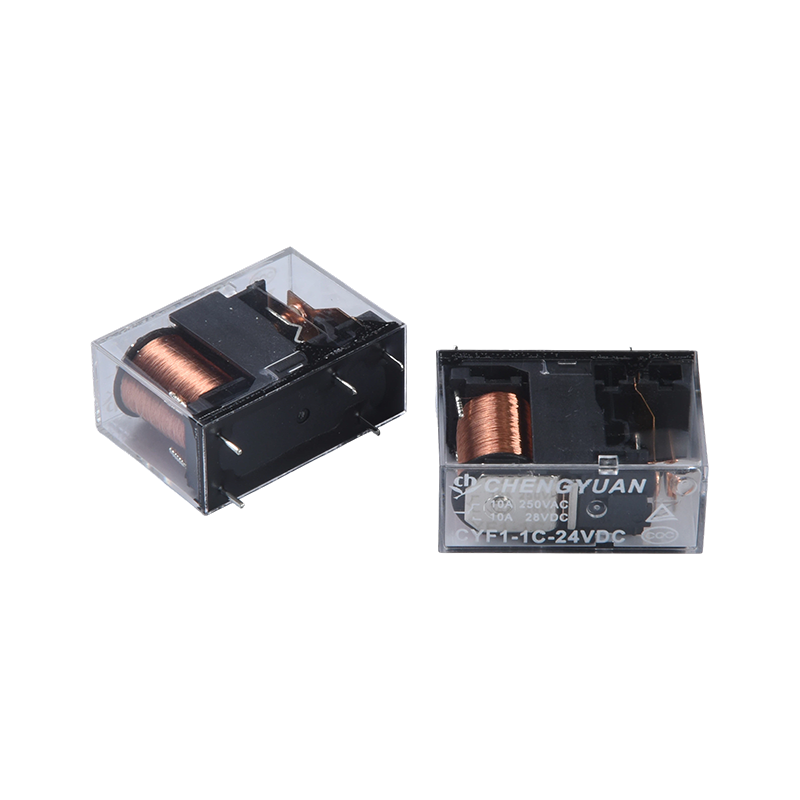

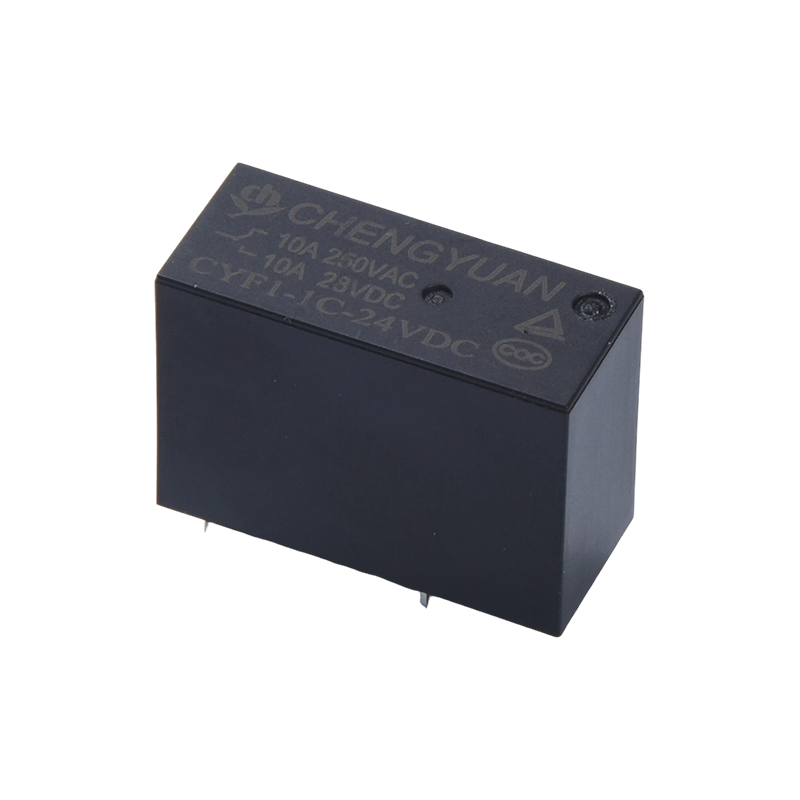

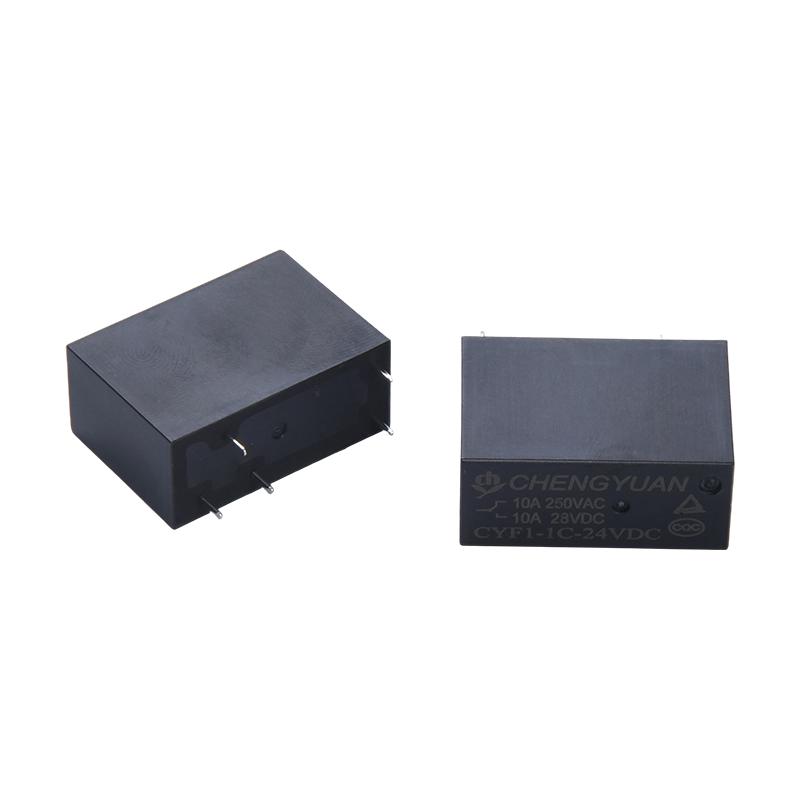

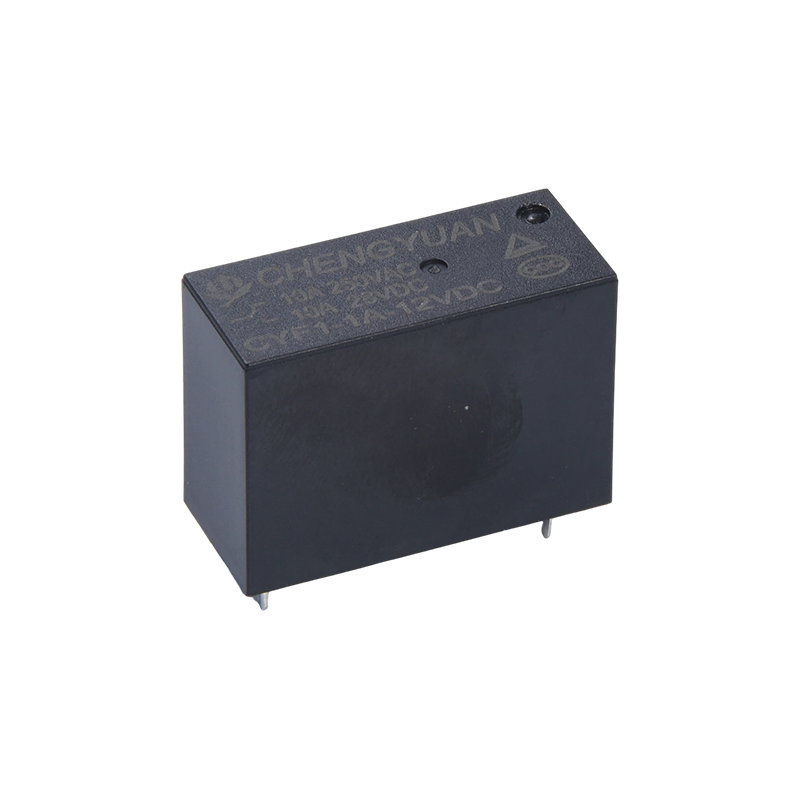

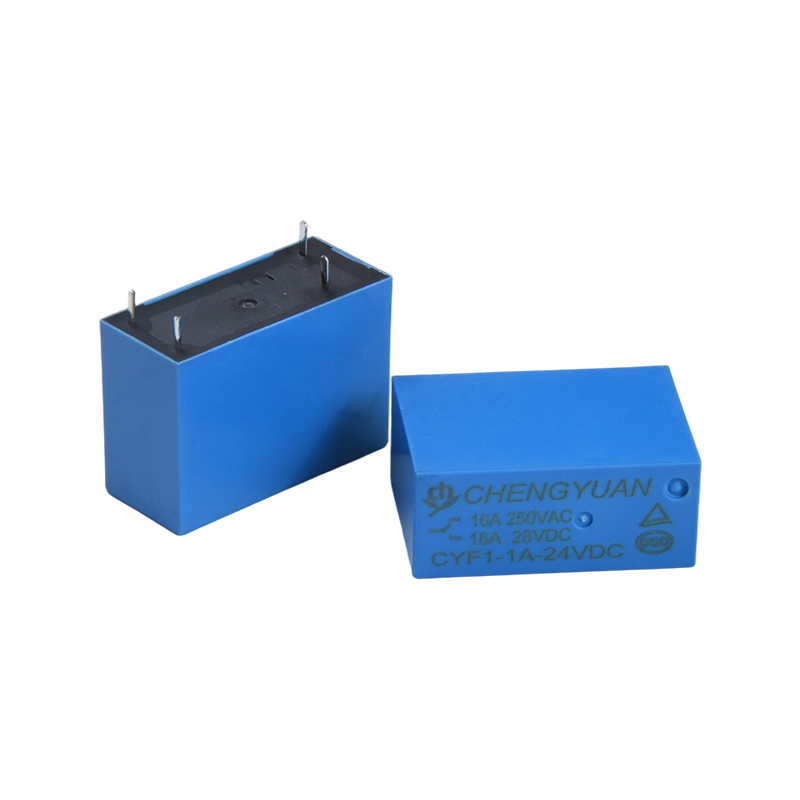

Features:
• Ultra-high voltage withstand performance: Withstands up to 5000 volts, providing excellent insulation performance, reducing the risk of circuit breakdown, and improving equipment operating safety.
• Flexible coil voltage: Supports a wide coil voltage range of 3VDC-48VDC, directly matching various control circuit voltage specifications without the need for additional voltage conversion components.
• Compact structural design: Small size, suitable for high-density PCB mounting scenarios, saving internal equipment space and improving circuit layout flexibility.
• High load switching capacity: Contact switching capacity up to 17 amps, with rated loads covering 10A 250VAC/28VDC and 16A 250VAC/28VDC, suitable for medium to high-power circuit switching needs.
• Dual authoritative certification: Certified by TUV and CQC, complying with international and domestic safety standards, meeting the needs of end-product applications in multiple markets.
• Convenient PCB assembly: Uses a 5-pin structure, facilitating easy soldering and fixing to printed circuit boards, resulting in high assembly efficiency and compatibility with automated production processes.
• Stable switching performance: Uses a single-pole single-throw (SPST) contact form, providing clear switching logic and stable contact resistance, ensuring the reliability of the circuit on/off switching.
Applicable Scenarios:
• Home appliances: Power on/off control for high-power small appliances (such as electric heaters, induction cookers), and automatic control of kitchen appliances.
• Industrial control: Signal switching and power control for industrial automation equipment, small PLC control modules, and motor control circuits. • Smart power equipment: Smart distribution boxes, power distribution modules, and charging pile auxiliary control circuits, adapted for high voltage and high load demand scenarios.
• Security equipment: Power supplies for security monitoring and circuit switching for access control systems, relying on stable performance to ensure continuous operation of the equipment.
Contact Data
|
Type
|
CYF1
|
|
Contact material
|
Silver alloy
|
|
Contact resistance
|
100mΩ Max.(at 1A 16VDC)
|
|
Rated load (Resistive load）
|
10A 250VAC/12A 277VAC
|
16A 250VAC/17A 277VAC
|
|
Max. switching current
|
12A
|
17A
|
|
Max. switching voltage
|
277VAC
|
|
Max. switching power
|
3324VA
|
4709VAC
|
|
Min. switching load
|
6V 1A
|
|
Characteristics
|
|
Operate time (at rated coil voltage)
|
15ms Max. (No diode)
|
|
Release time
|
5ms Max. ( No diode)
|
|
Insulation resistance
|
Min 1000MΩ (at 500VDC)
|
|
Dielectric strength
|
Between open contacts:1000VAC, 50/60Hz for 1min
|
|
Between coil and contact: 5000VAC, 50/60Hz for 1min
|
|
Vibration resistance
|
Destructive
|
10-55Hz, at double amplitude of 1.5 mm
|
|
Functional
|
10-55Hz, at double amplitude of 1.5 mm
|
|
Shock resistance
|
Functional
|
10G Min
|
|
Destructive
|
10G Min
|
|
Endurance
|
Mechanical endurance （10800ops./h)
|
10000000 ops.(at room temperature)
|
|
Electrical endurance (360ops./h)
|
100000 ops.(at room temperature)
|
|
Ambient atemperature
|
-40℃ ~ +85℃(no condensation)
|
|
Weight
|
Approx. 14g
|
Coil Data (at 20℃)
|
Nominal
voltage
(VDC)
|
Nominal
operating
current
±10%(mA)
|
Coil resistance
±10%(Ω)
|
Nominal operating
power
|
(Max.) Operate voltage
(Max.)
|
Release voltage
(Min.)
|
Max. allowable voltage
|
|
3
|
240
|
12.5
|
Approx 0.72W
|
75% of nominal
voltage
|
5% of nominal
voltage
|
130% of nominal voltage
|
|
5
|
144
|
35
|
|
6
|
120
|
50
|
|
9
|
80
|
113
|
|
12
|
60
|
200
|
|
18
|
40
|
450
|
|
24
|
30
|
800
|
|
48
|
15
|
3200
|
|
3
|
180
|
17
|
Approx 0.54W
|
|
5
|
108
|
46
|
|
6
|
90
|
67
|
|
9
|
60
|
150
|
|
12
|
45
|
270
|
|
18
|
30
|
600
|
|
24
|
22.5
|
1067
|
|
48
|
11.25
|
4267
|
The data shown above are initial values. Do not apply maximum allowable voltage on the coil for more than 10 minutes to avoid overheating of the coil.

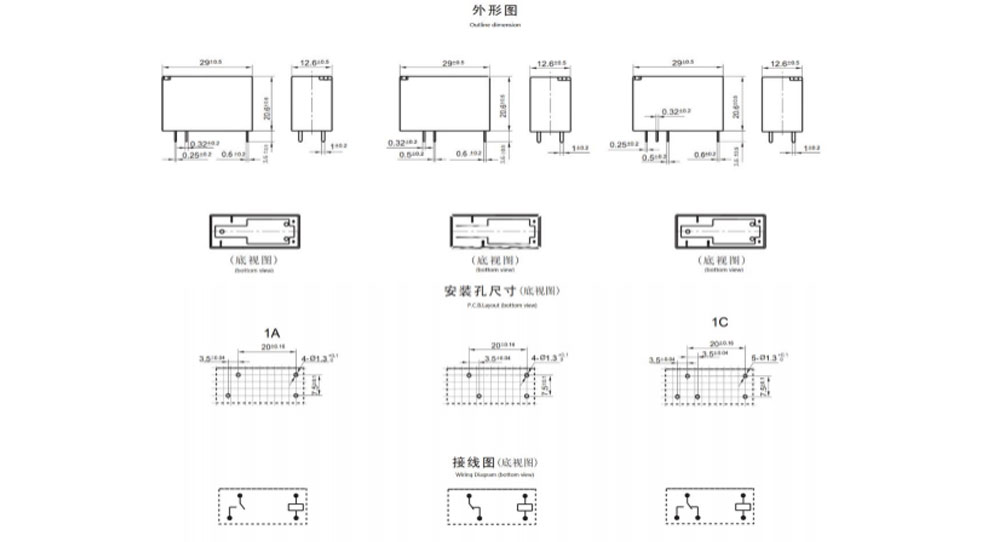

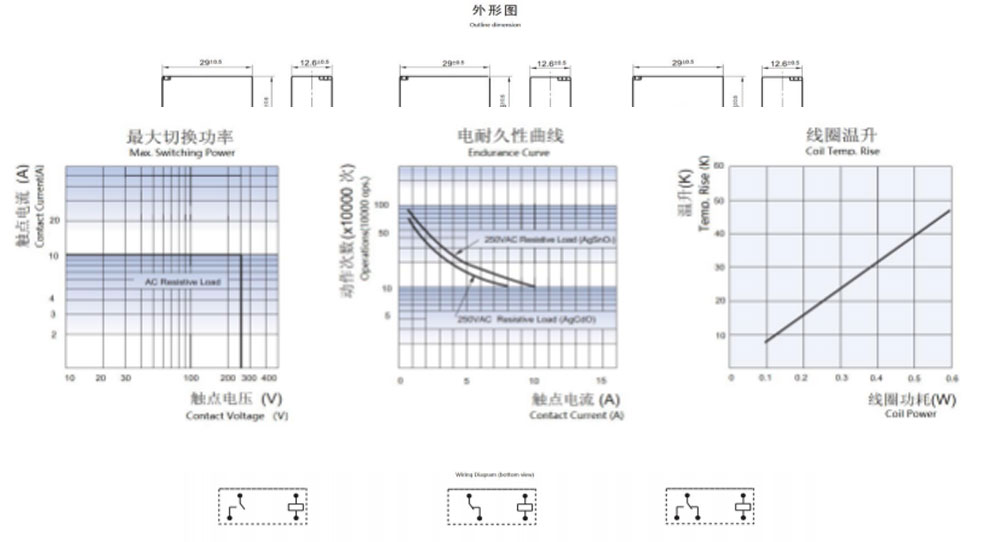

Outline dimension, Wiring diagram, PCB layout (Unit: mm)
Characteristic Curves
Ordering Information
CYF1 H - 1 - C - 12VDC - H - D - T - XX
1 2 3 4 5 6 7 8 9
1： Type：CYF1
2: With H: High-contact load, 16A Without H: Standard load, 10A
3: Number of Poles: 1-1Pole
4: Contact Arrangement: C Fom C ; H From A ; B From B
5: Nominal Voltage: 3,5,6,9, 12, 18,24,48VDC

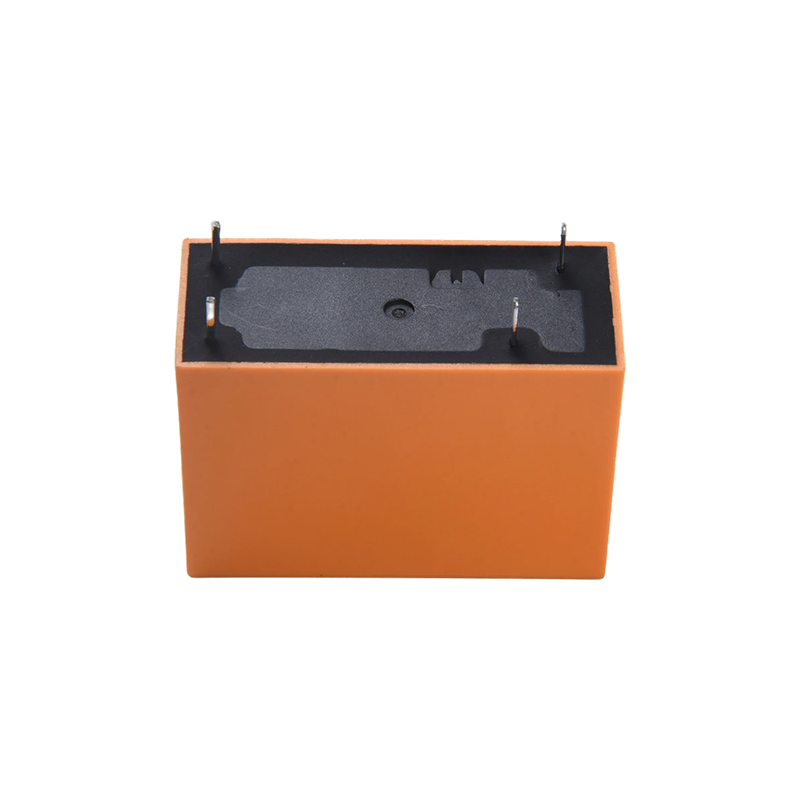

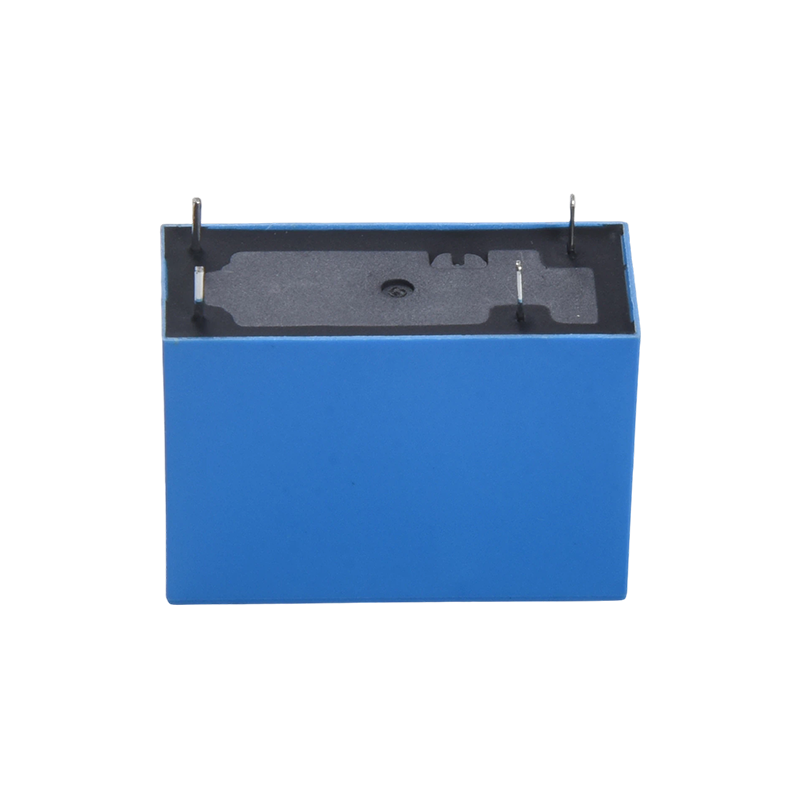

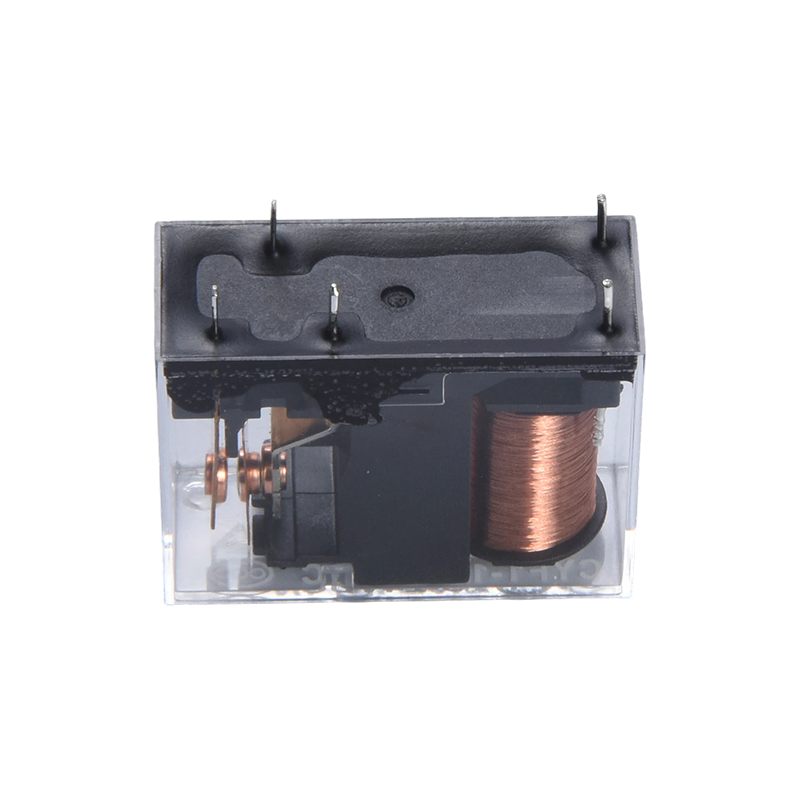

6: Enclosure Color: T -Transparent, H-Black, L-Blue
7: Coil Pwor: D-0.72W L-0.54W
8: Protective Construction: S-Flux proofed,
SH-Sealed type washable
9: Special Parameter: Nil-Standard type
Letter or number-Special requirement
Flux-proof relays can not be used in the environment with pollutants like H2S, SO2, NO2, dust, etc.
Water cleaning or surface processing is not suggested after the flux-proof relays are assembled on the PCB.
Disclaimer: The specification is for reference only. Specifications are subject to change without prior notice.
We could not evaluate all the performance and all the parameters for every possible application. Thus, the users should be in the right position to choose
Suitable product for their own application. For sealed relays, after installation and cleaning, please open the ventilation hole in the case before use. If there is any query, please contact Chengyuan for technical services. However, it is the user`s responsibility to determine which product should be used.
