I. Advantages
1. High Load Adaptability: A 16A high-current contact switching capability allows for direct driving of medium to high-Power loads without the need for additional amplification circuits.
2. Strong Environmental Adaptability: High voltage resistance handles voltage fluctuations in complex Power grid environments, reducing the risk of breakdown.
3. High Versatility: Wide coil voltage range and standard PCB packaging ensure compatibility with various industry equipment designs, increasing product reusability.

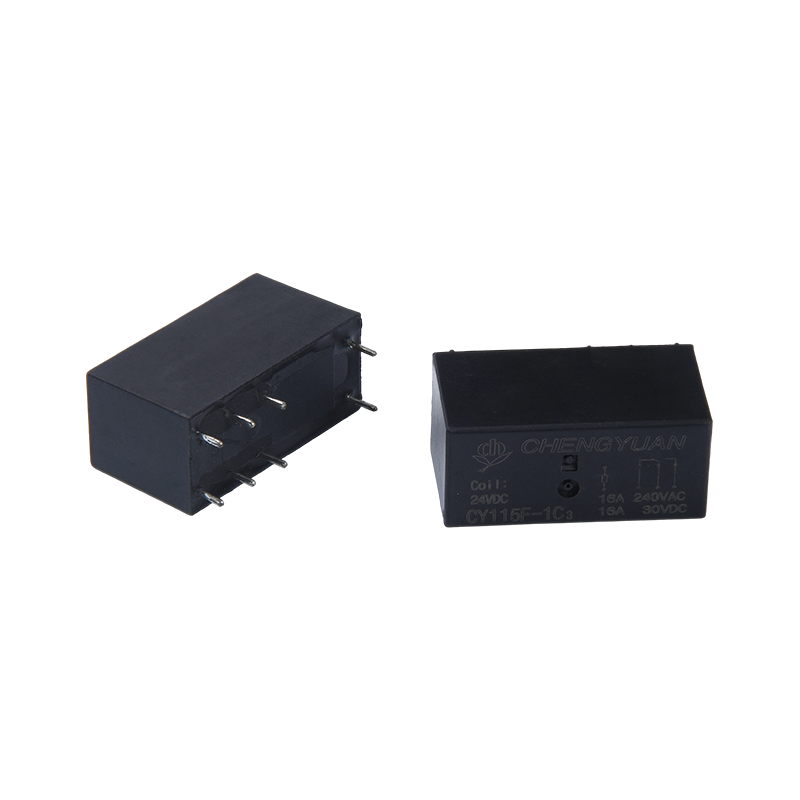

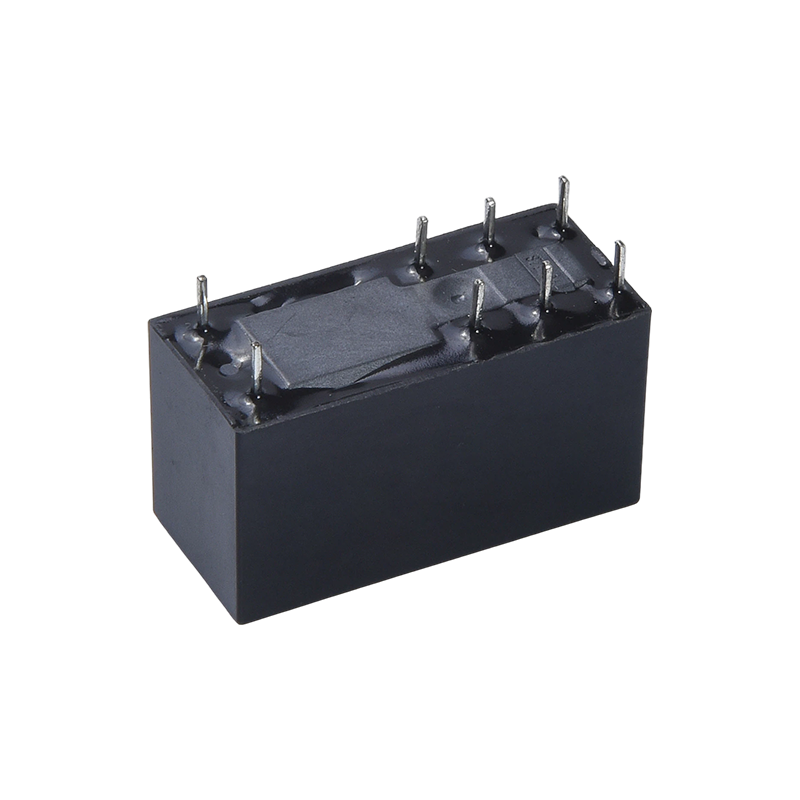

II. Product Structure and Installation Features
1. Packaging Specifications: Uses an 8-PIN PCB package with a reasonable pin layout, facilitating automated welding and mass assembly;
2. Compact Design: Compact size meets the needs of dense internal equipment installation, saving PCB board space and contributing to product miniaturization.
3. Structure Type: SPDT (Single-Pole Double-Throw) structure provides clear switching logic, adapting to various circuit switching needs.
III. Applicable Application Scenarios
1. Industrial Control: Suitable for motor control, contactor driving, and circuit switching in industrial automation equipment;
2. Home Appliances: Suitable for Power control and load switching in high-Power home appliances such as air conditioners, washing machines, and refrigerators;
3. Security and Power Equipment: Applicable to switch control in security monitoring systems, UPS Power supplies, and inverter circuit conversion;
4. Automotive Electronics: Can be used for load control of auxiliary electrical appliances in automobiles (requires matching the corresponding voltage specifications).
Contact Data
|
Type
|
CY115F
|
|
Contact material
|
Silver alloy
|
|
Contact resistance
|
100mΩ Max.(at 1A 6VDC)
|
|
Rated load (Resistive load）
|
16A 250VAC
|
|
Max. switching current
|
16A
|
|
Max. switching voltage
|
277VAC
|
|
Max. switching power
|
4432VA
|
|
Min. switching load
|
6V 1A
|
|
Characteristics
|
|
Operate time (at rated coil voltage)
|
15ms Max. (No diode)
|
|
Release time
|
5ms Max. ( No diode)
|
|
Insulation resistance
|
Min. 1000MΩ (at 500VDC)
|
|
Dielectric strength
|
Between open contacts:1000VAC, 50/60Hz for 1min
|
|
Between coil and contact: 5000VAC, 50/60Hz for 1min
|
|
Vibration resistance
|
Destructive
|
10-55Hz, at double amplitude of 1.5 mm
|
|
Functional
|
10-55Hz, at double amplitude of 1.5 mm
|
|
Shock resistance
|
Functional
|
10G Min.
|
|
Destructive
|
100G Min.
|
|
Endurance
|
Mechanical endurance （10800ops./h)
|
10000000 ops.(at room temperature)
|
|
Electrical endurance (360ops./h)
|
100000 ops.(at room temperature)
|
|
Ambient temperature
|
-40℃~+85℃( no condensation)
|
|
Weight
|
Approx. 13.5g
|
|
Nominal
voltage
(VDC)
|
Nominal
operating
current
±10%(mA)
|
Coil resistance
±10%(Ω)
|
Nominal operating
Fower
|
Operate voltage
(Max.)
|
Release voltage
(Min.)
|
Max. allowable voltage
|
|
5
|
80.00
|
62.5
|
Approx 0.4W
|
75% of nominal
voltage
|
5% of nominal
voltage
|
130% of nominal voltage
|
|
6
|
66.67
|
90
|
|
9
|
44.44
|
202.5
|
|
12
|
33.33
|
360
|
|
18
|
22.22
|
810
|
|
24
|
16.67
|
1440
|
|
48
|
8.33
|
5760
|
The data shown above are initial values. Do not apple maximum allowable voltage on coil for more than 10 minutes to avoid overheating of thd coil.

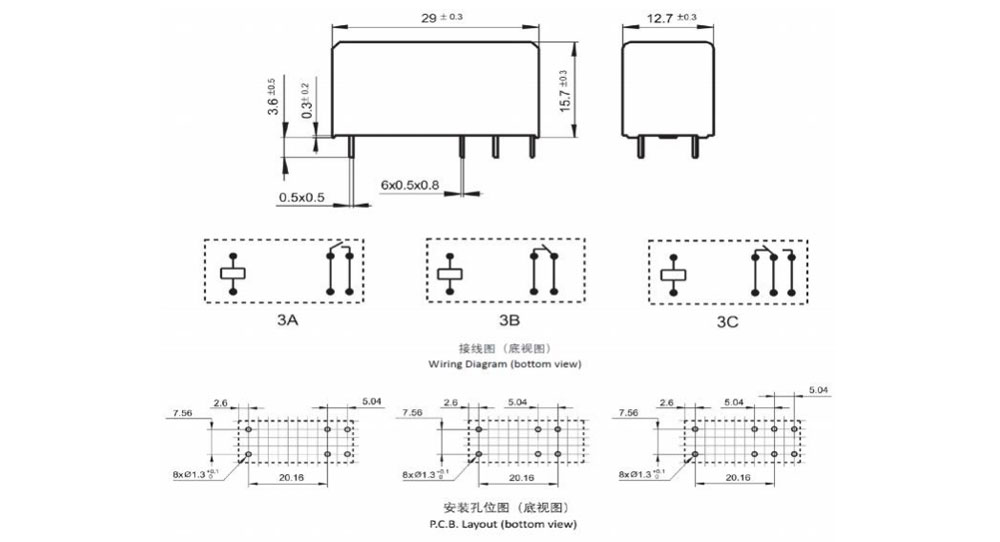

Outline dimension, Wiring diagram, PCB layout (Unit: mm)

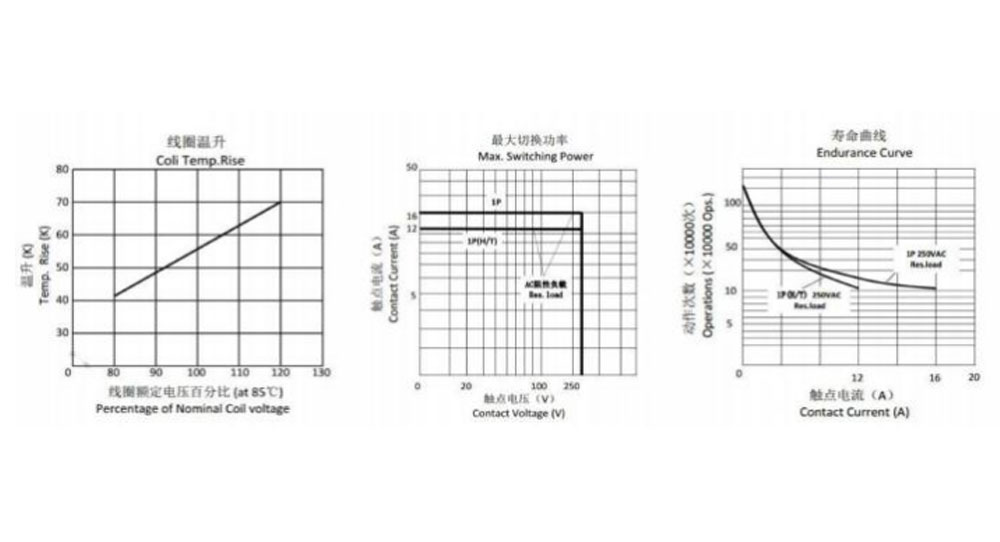

Characteristic Curves
Ordering Information
CY115F - 1 - C - 12VDC - B - D - T - XX
1 2 3 4 5 6 7 8
1：Type：CY115F
2: Number of Poles: 1-1Pole
3: Contact Arrangement: A-Form A ; B-Form B ; C-Form C
4: Nominal Voltage: 5,6,9,12,18,24,48VDC
5: Enclosure Color: B-Black
6: Coil Pwor: D-0.4W
7: Protective Construction: S-Flux proofed,
SH- Sealed type washable
8: Special Parameter: Nil-Standard type
Letter or number-Special requirement
Flux-proof relays can not be used in the environment with pollutants like H2S, SO2, NO2, dust, etc.
Water cleaning or surface processing is not suggested after the flux-proof relays are assembled on the PCB.
Disclaimer: The specification is for reference only. Specifications are subject to change without prior notice.
We could not evaluate all the performance and all the parameters for every possible application. Thus, the users should be in the right position to choose
Suitable product for their own application. For sealed relays, after installation and cleaning, please open the ventilation hole in the case before use. If there is any query, please contact Chengyuan for technical services. However, it is the user`s responsibility to determine which product should be used.
