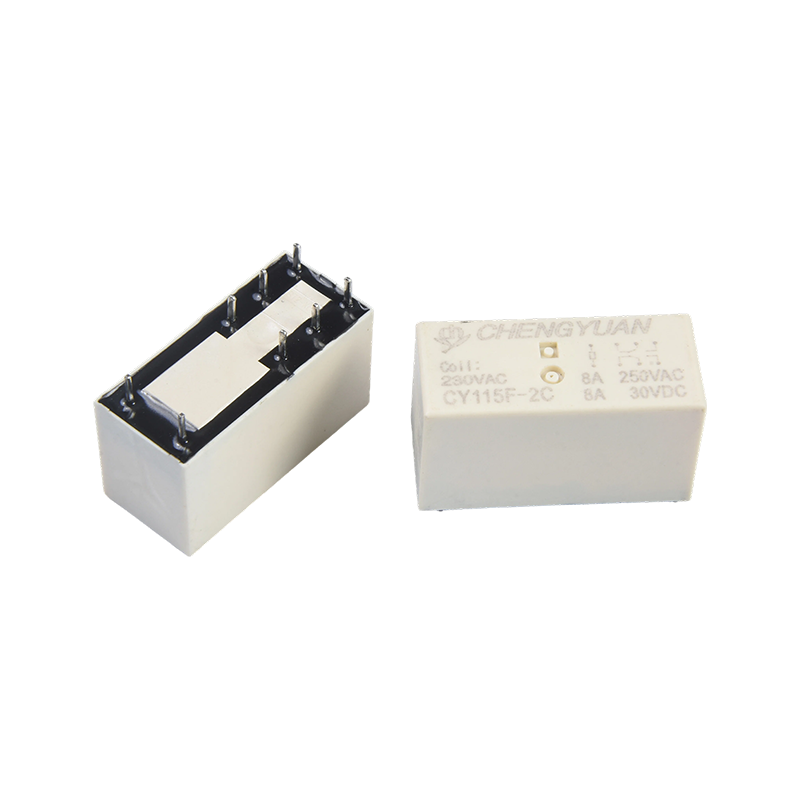

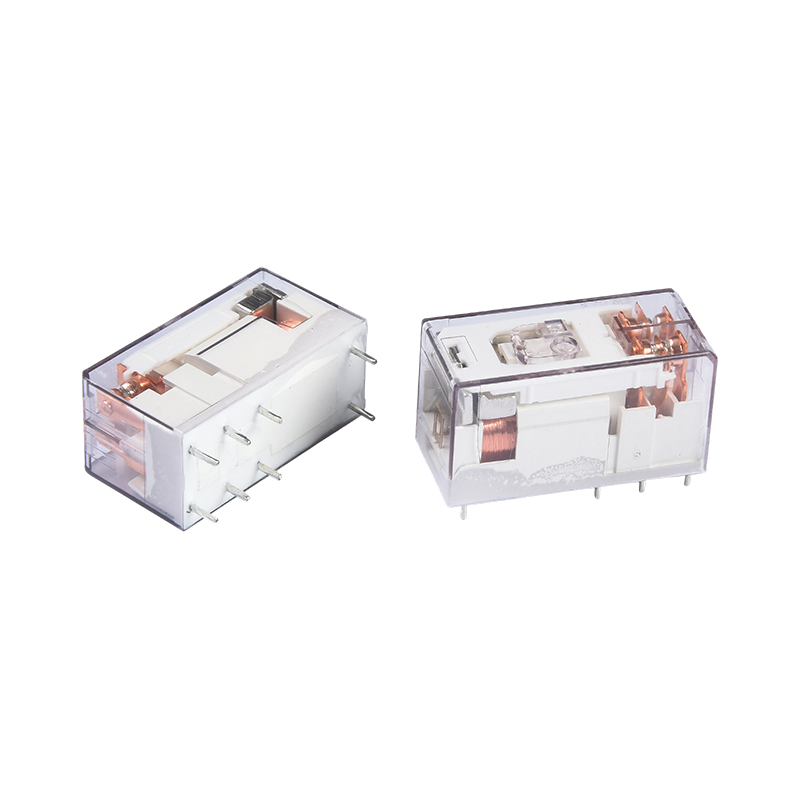

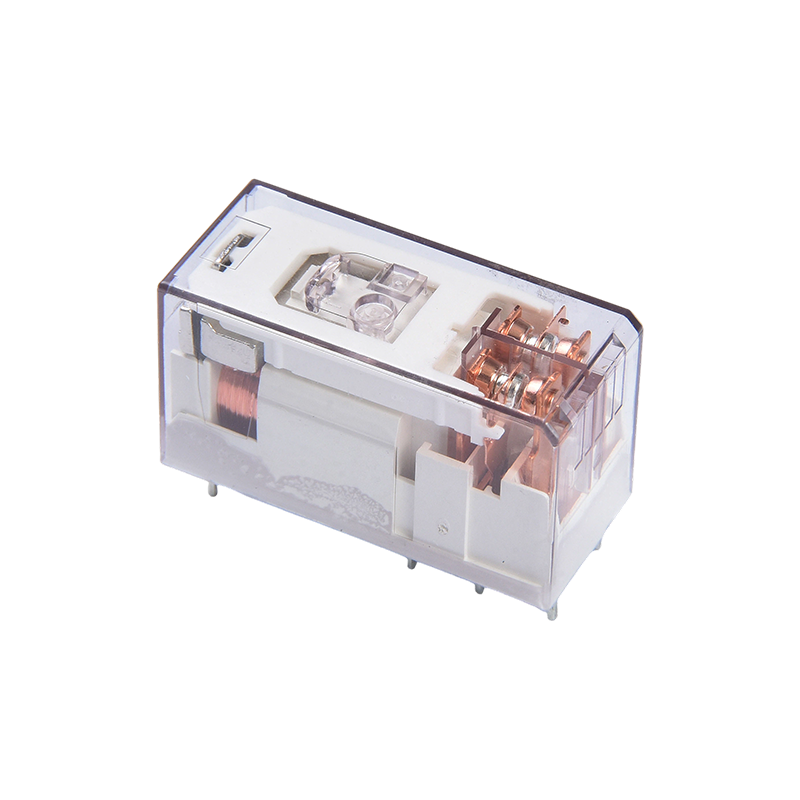

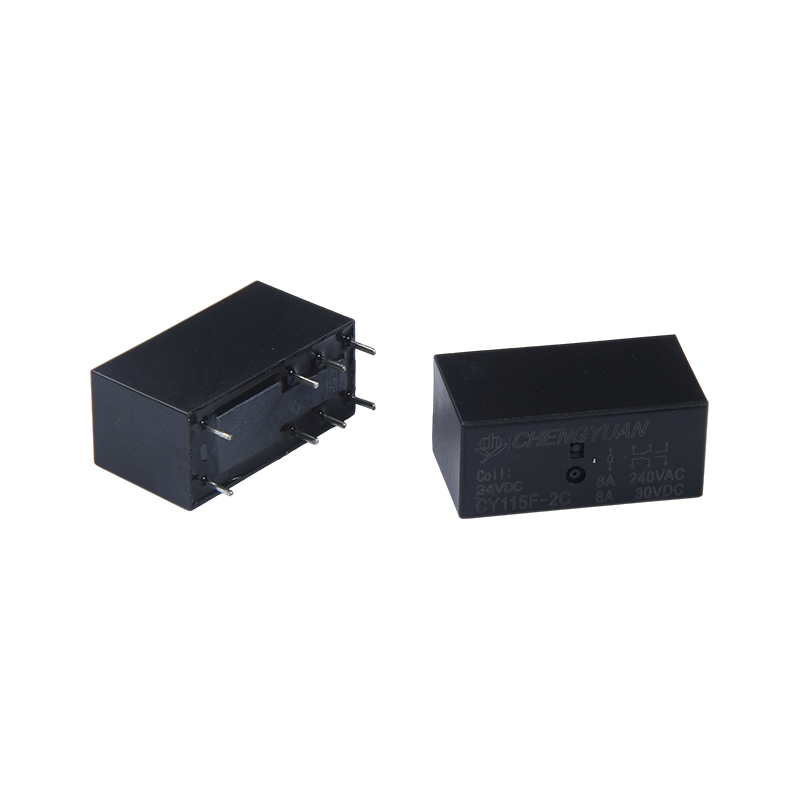

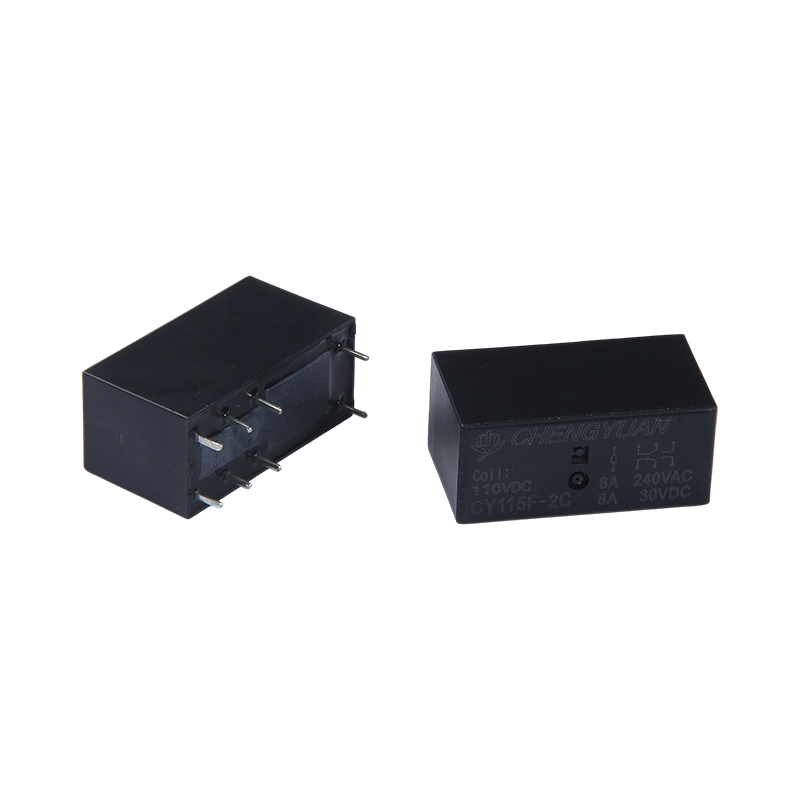

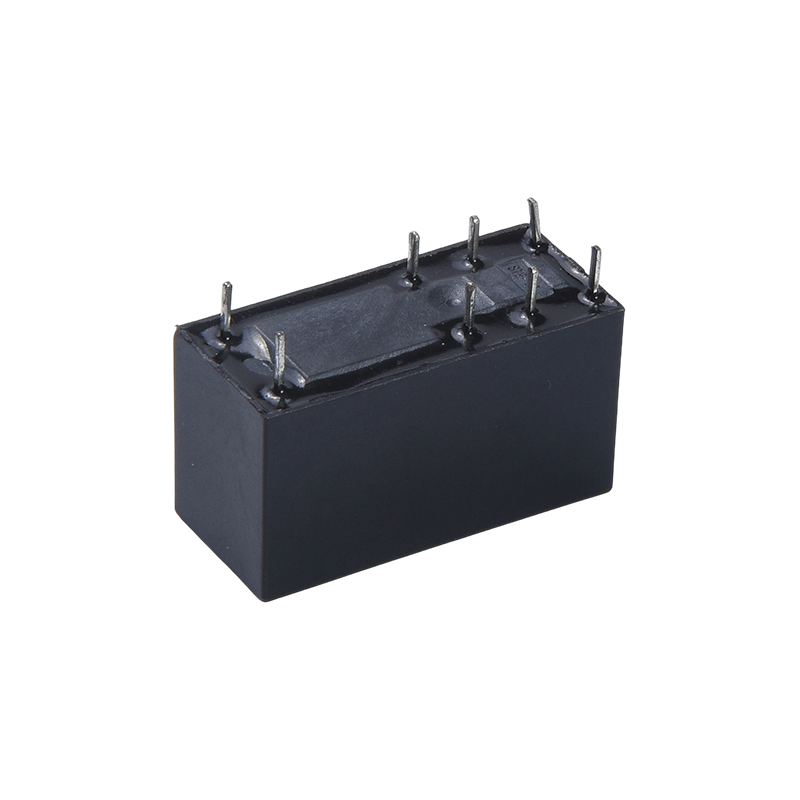

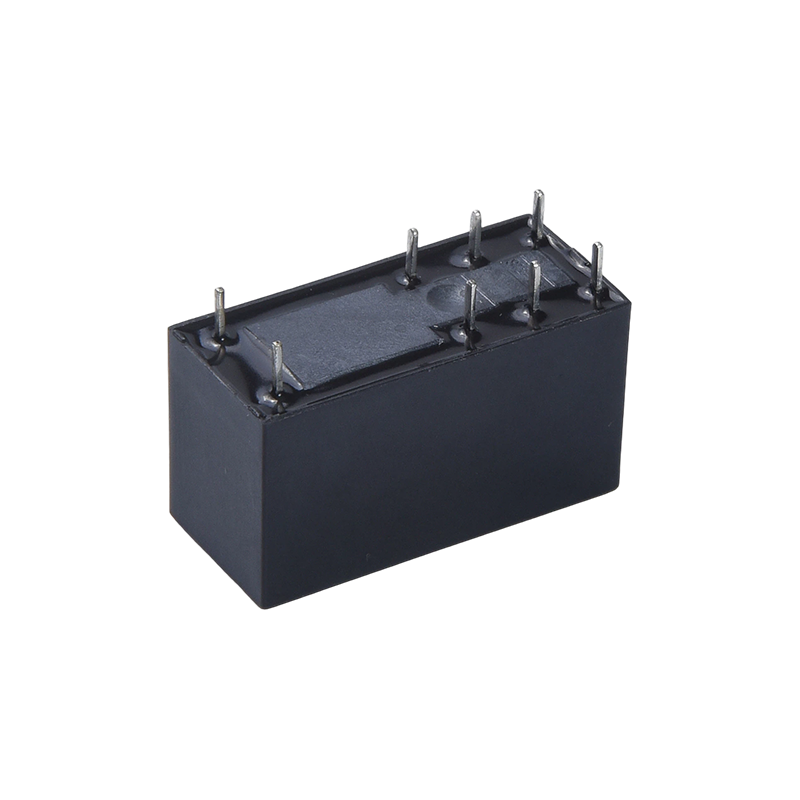

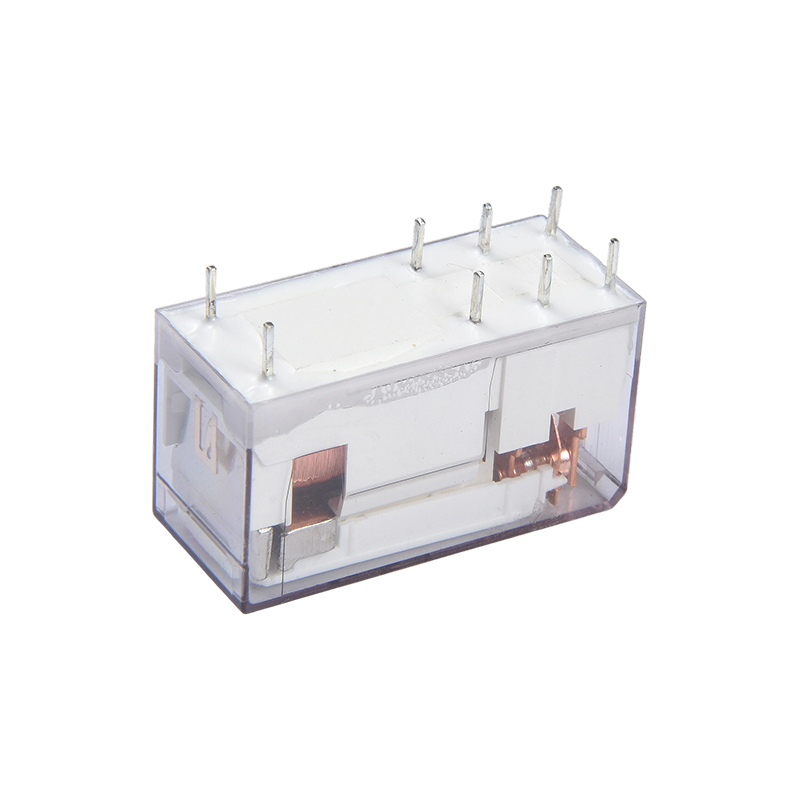

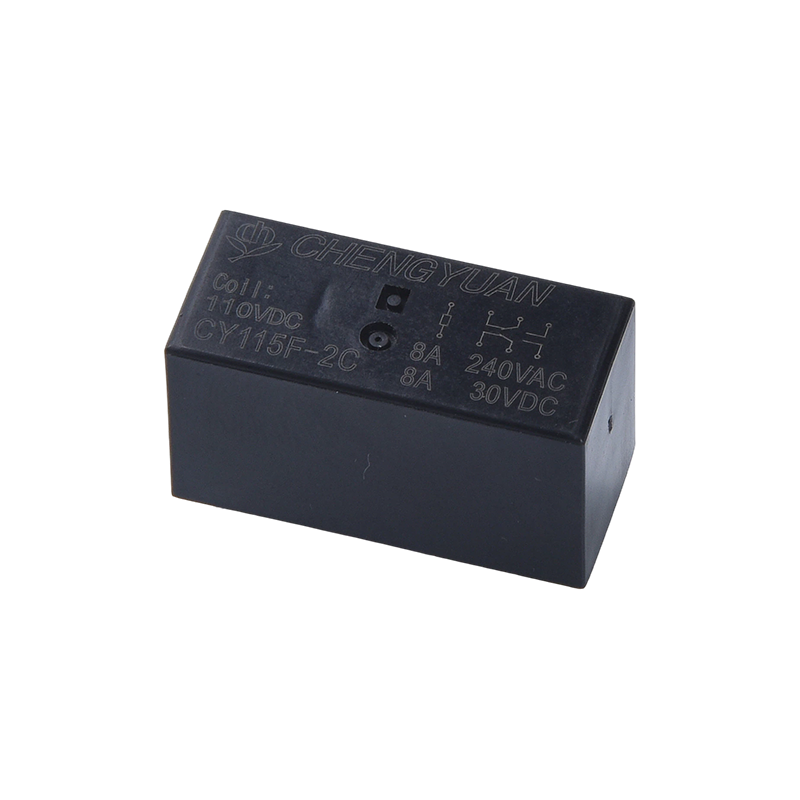

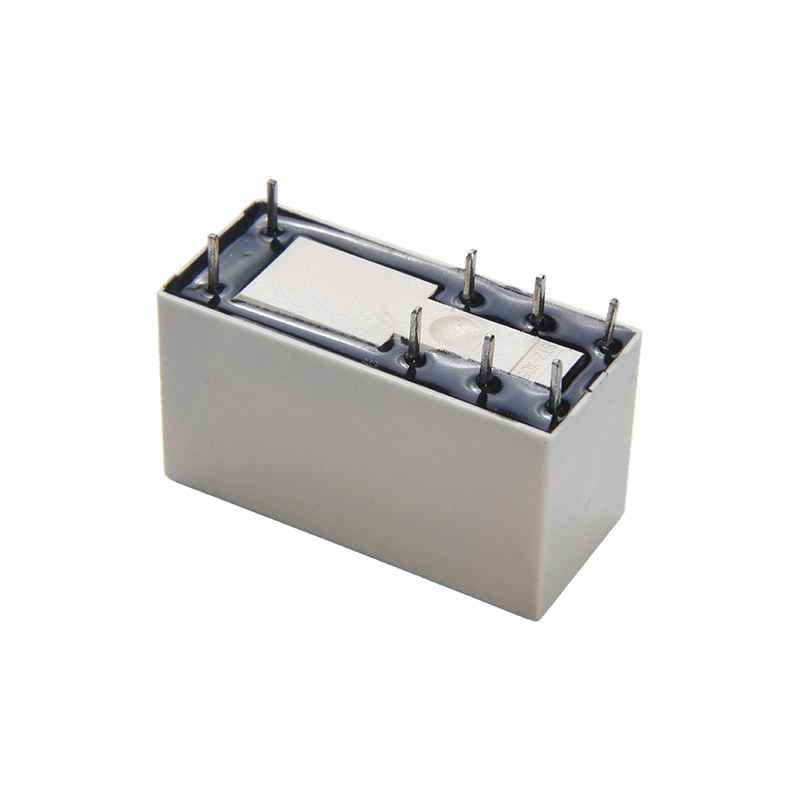

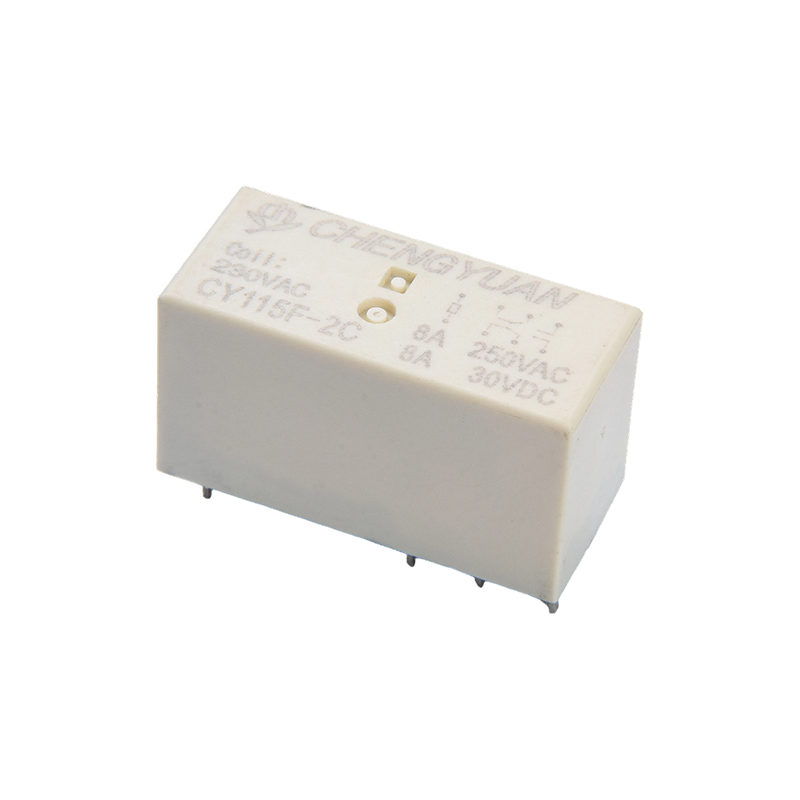

Product Features:
• High Load Switching Capacity: The contacts support 8 amps of current switching, effectively controlling high-power circuits and meeting various load requirements.
• Low Power Consumption Design: The coil sensitivity is as low as 0.4W, helping to reduce overall device energy consumption and heat generation.
• High Voltage Withstand and Isolation: The voltage withstand between the coil and contacts reaches 5000 volts, providing reliable electrical isolation and ensuring safe operation.
• Compact Structure: The small size optimizes space utilization, making it ideal for dense mounting on printed circuit boards.
• Sensitive Control: Controls high-power circuits with weak signals, enabling remote control and isolation in automated systems.
Typical Applications:
• Home Appliances: Used in washing machines, air conditioners, microwave ovens, and other devices for circuit control of motors or heating elements.
• Industrial Automation: Suitable for PLC control systems, motor and solenoid valve drives, providing stable automated switching.
• New Energy Equipment: Applied in UPS uninterruptible power supplies, energy storage systems, and inverters as a reliable automatic switch.
• Smart Home: Used to control air conditioners, underfloor heating, curtains, and other systems for remote intelligent management.
• Audio-Visual and Display Equipment: Used in audio systems, monitors, and other devices to ensure accurate switching of signals and power.
Contact Data
|
Type
|
CY115F
|
|
Contact material
|
Silver alloy
|
|
Contact resistance
|
100mΩ Max.(at 1A 6VDC)
|
|
Rated load (Resistive load）
|
8A 250VAC
|
|
Max. switching current
|
10A
|
|
Max. switching voltage
|
277VAC
|
|
Max. switching power
|
2500VA
|
|
Min. switching load
|
6V 1A
|
|
Characteristics
|
|
Operate time (at rated coil voltage)
|
15ms Max. (No diode)
|
|
Release time
|
5ms Max. (No diode)
|
|
Insulation resistance
|
Min. 1000MΩ (at 500VDC)
|
|
Dielectric strength
|
Between open contacts:1000VAC, 50/60Hz for 1min
|
|
Between coil and contact : 5000VAC , 50/60Hz for 1min
|
|
Between contact sets:2,500VAC, 50/60Hz for 1min
|
|
Vibration resistance
|
Destructive
|
10-55Hz, at double amplitude of 1.5 mm
|
|
Functional
|
10-55Hz, at double amplitude of 1.5 mm
|
|
Shock resistance
|
Functional
|
10G Min.
|
|
Destructive
|
100G Min.
|
|
Endurance
|
Mechanical endurance （10800ops./h)
|
10000000 ops.(at room temperature)
|
|
Electrical endurance (360ops./h)
|
100000 ops.(at room temperature)
|
|
Ambient temperature
|
-40℃~+85℃(no condensation)
|
|
Weight
|
Approx.13.5g
|
|
Coil Data (at 20℃)
|
|
Nominal
voltage
(VDC)
|
Nominal
operating
current
±10%(mA)
|
Coil resistance
±10%(Ω)
|
Nominal operating
power
|
Operate voltage
(Max.)
|
Release voltage
(Min.)
|
Max. allowable voltage
|
|
5
|
80.00
|
62.5
|
Approx 0.4W
|
75% of nominal
voltage
|
5% of nominal
voltage
|
130% of nominal voltage
|
|
6
|
66.67
|
90
|
|
9
|
44.44
|
202.5
|
|
12
|
33.33
|
360
|
|
18
|
22.22
|
810
|
|
24
|
16.67
|
1440
|
|
48
|
8.33
|
5760
|
The data shown above are initial values. Do not apply maximum allowable voltage on the coil for more than 10 minutes to avoid overheating of the coil.

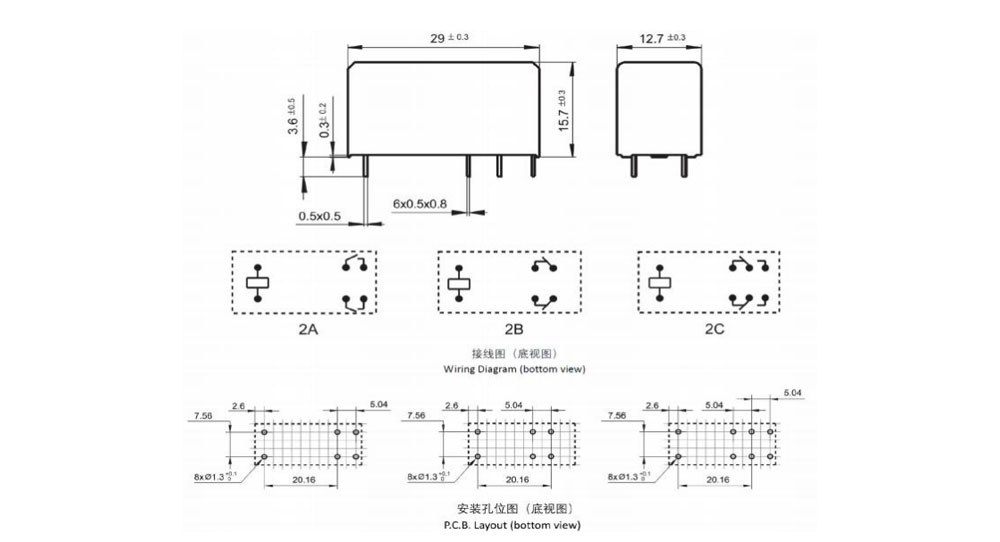

Outline dimension, Wiring diagram, PCB layout (Unit:mm)

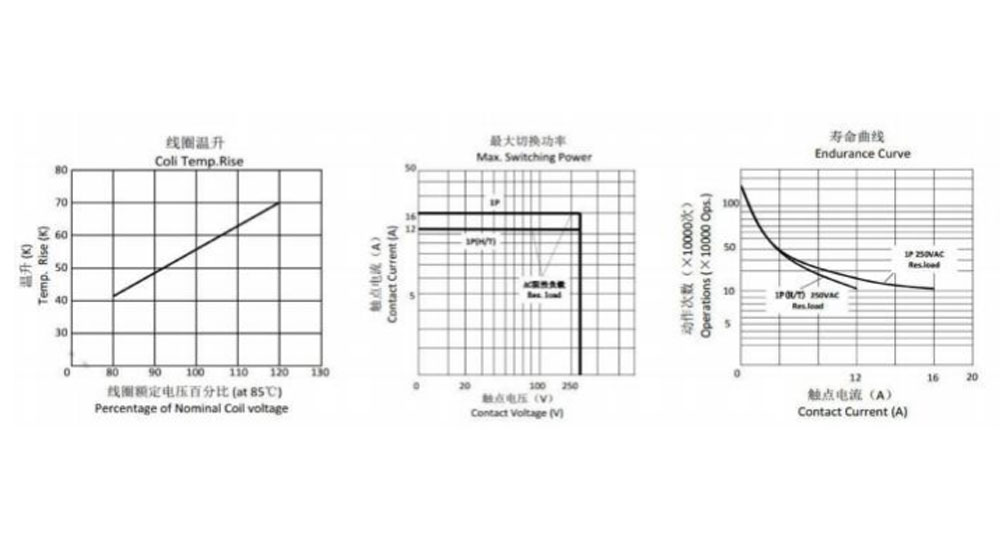

Characteristic Curves
Ordering Information
CY115F - 2 - C - 12VDC - B - D - T - XX
1 2 3 4 5 6 7 8
1：Type：CY115F
2: Number of Poles: 2-2Pole
3: Contact Arrangement: A-Form A ; B-Form B ; C-Form C
4: Nominal Voltage: 5,6,9,12,18,24,48VDC
5: Enclosure Color: B-Black
6: Coil Pwor: D-0.4W
7: Protective Construction: S-Flux proofed,
SH-Sealed type washable
8: Special Parameter: Nil-Standard type
Letter or number-Special requirement
Flux-proof relays can not be used in the environment with pollutants like H2S , SO2 , NO2 , dust,etc.
Water cleaning or surface process is not suggested after the flux-proof relays are assembled on PCB.
Disclaimer: The specification is for reference only . Specifications are subject to change without prior notice.
We could not evaluate all the performance and all the parameters for every possible applications . Thus the users should in a right position to choose
suitable product for their own application. For sealed relays, after installation fand cleaning, please open the ventilation hole in the case before use . If there is any query , please contact Chengyuan for technical services. However it is the user`s responsibility to determine which product should be used.
