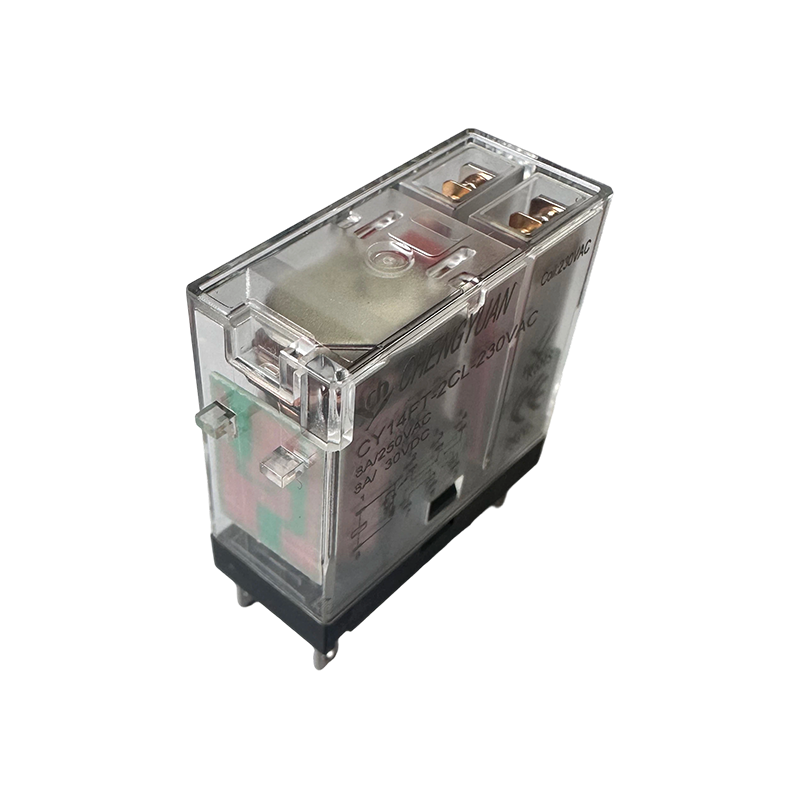

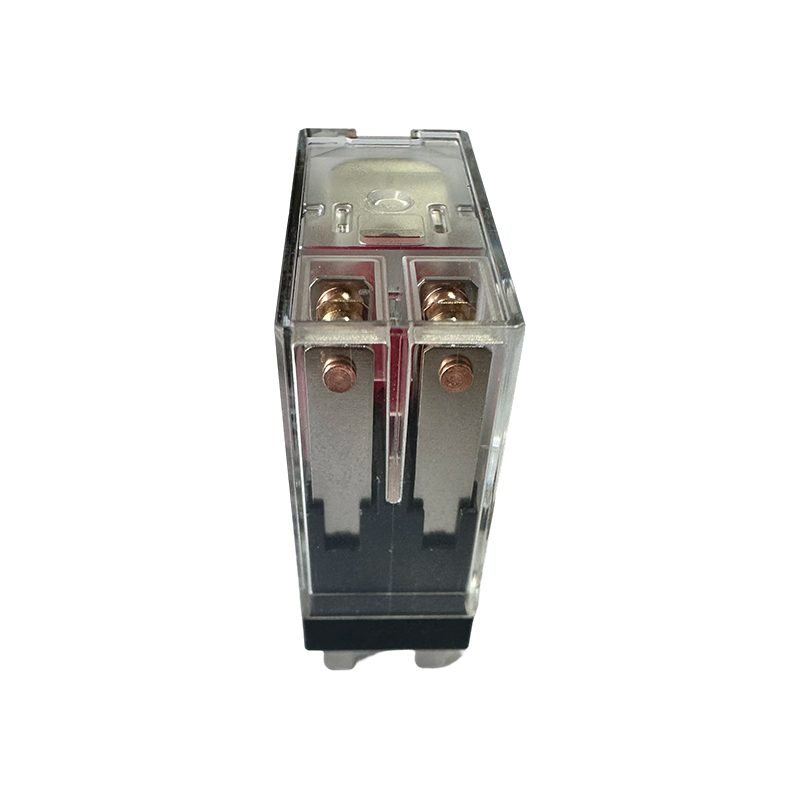

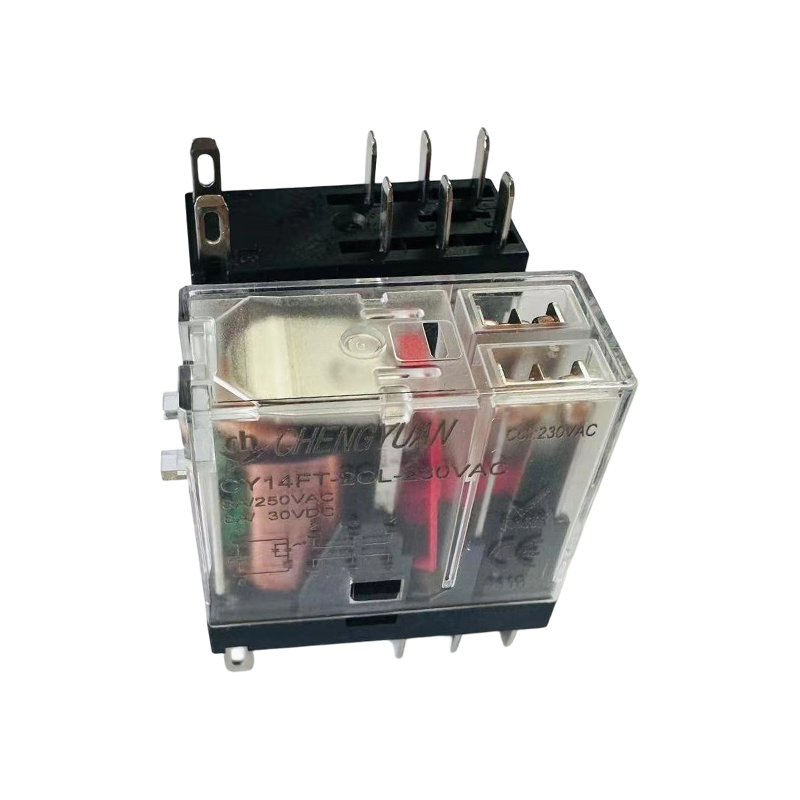

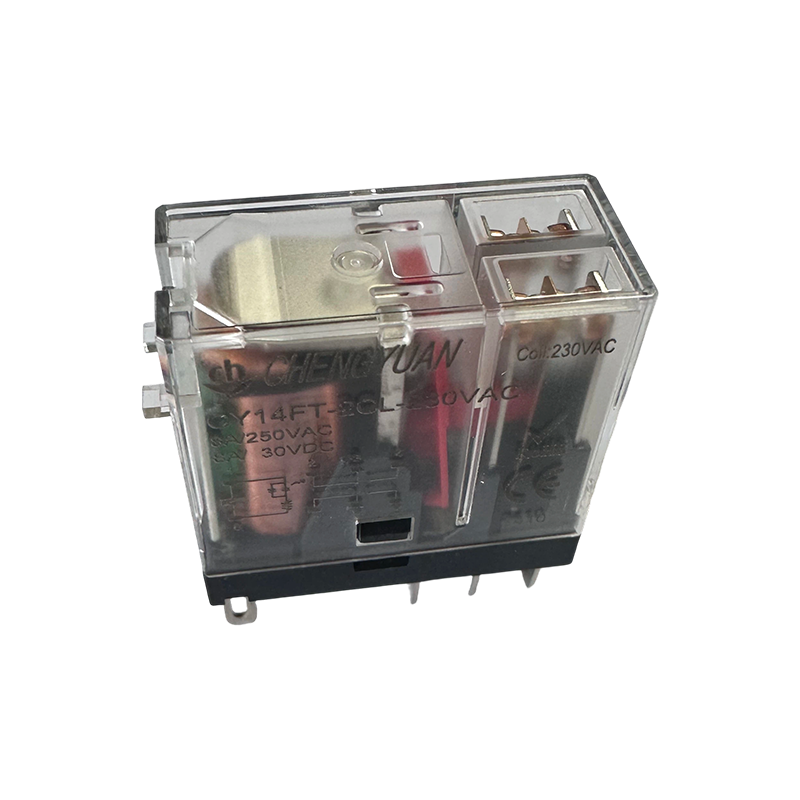

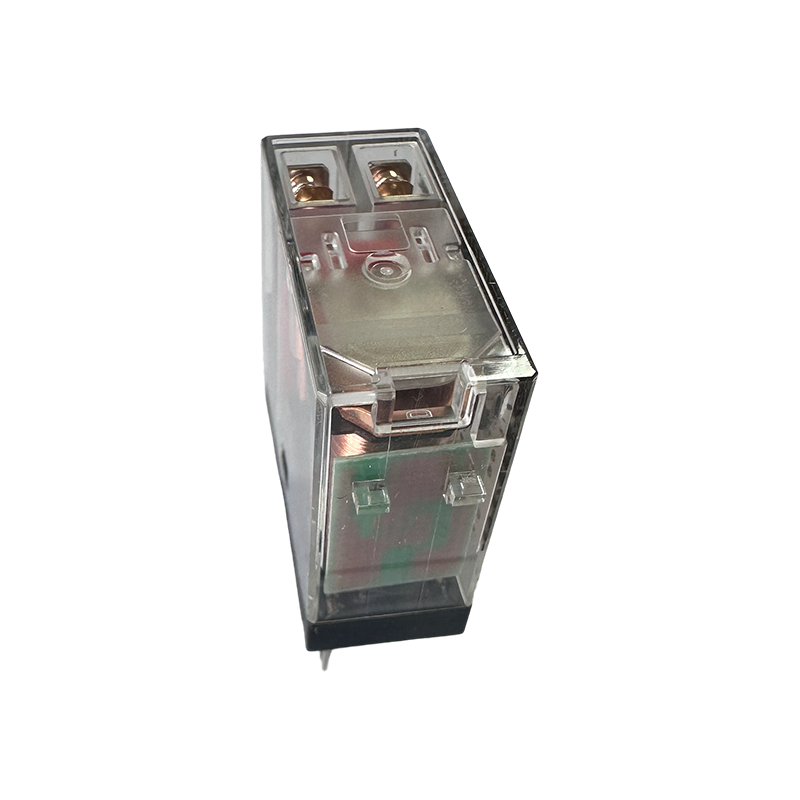

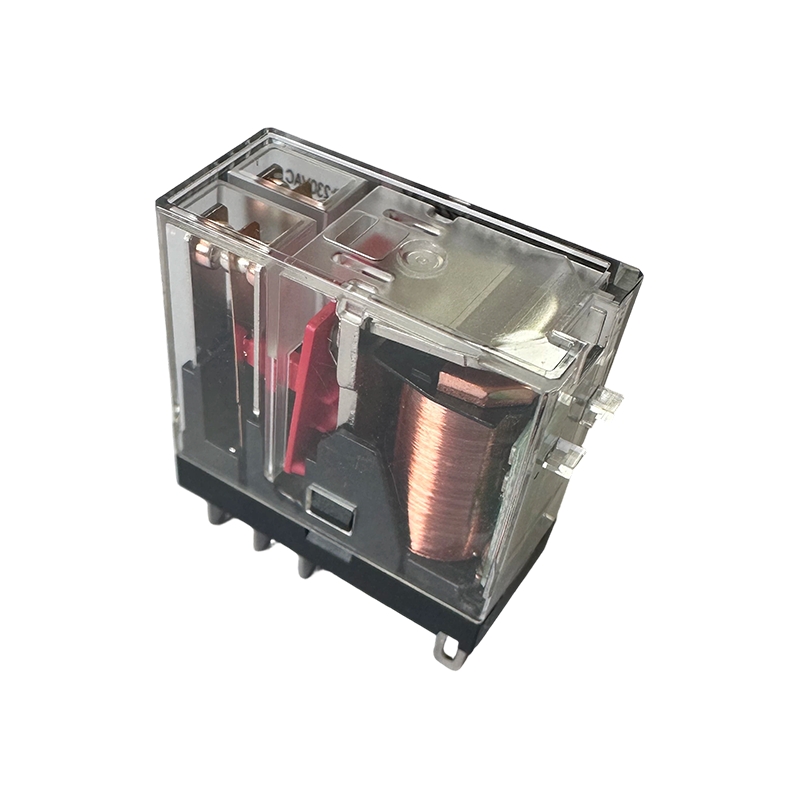

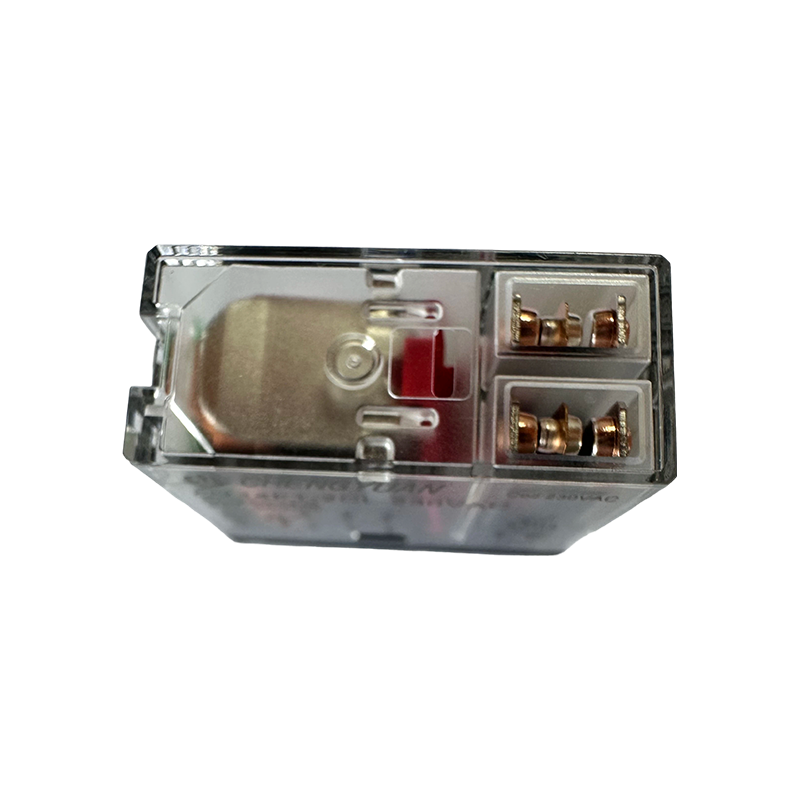

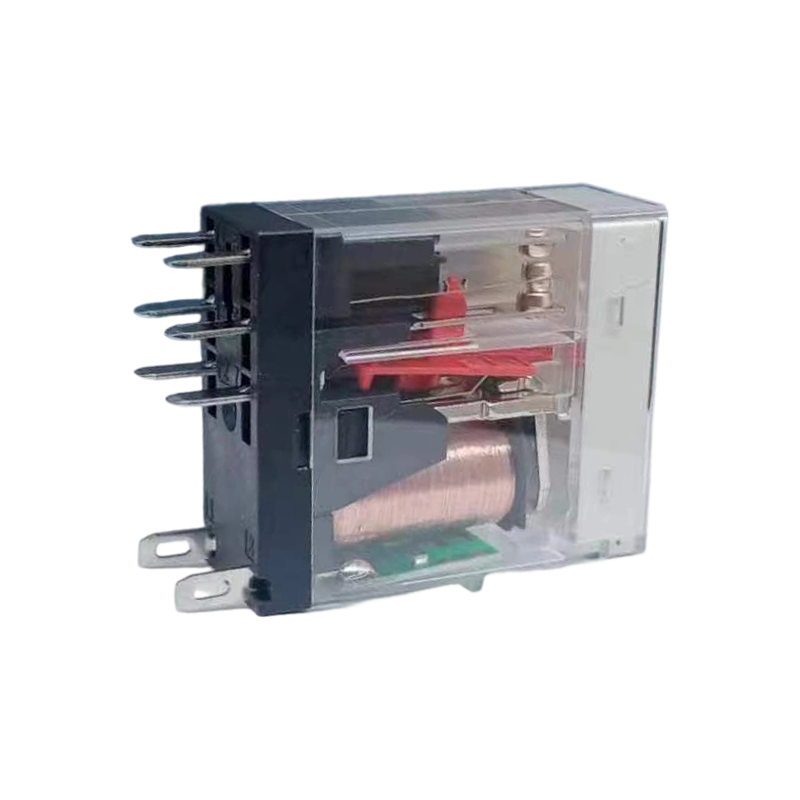

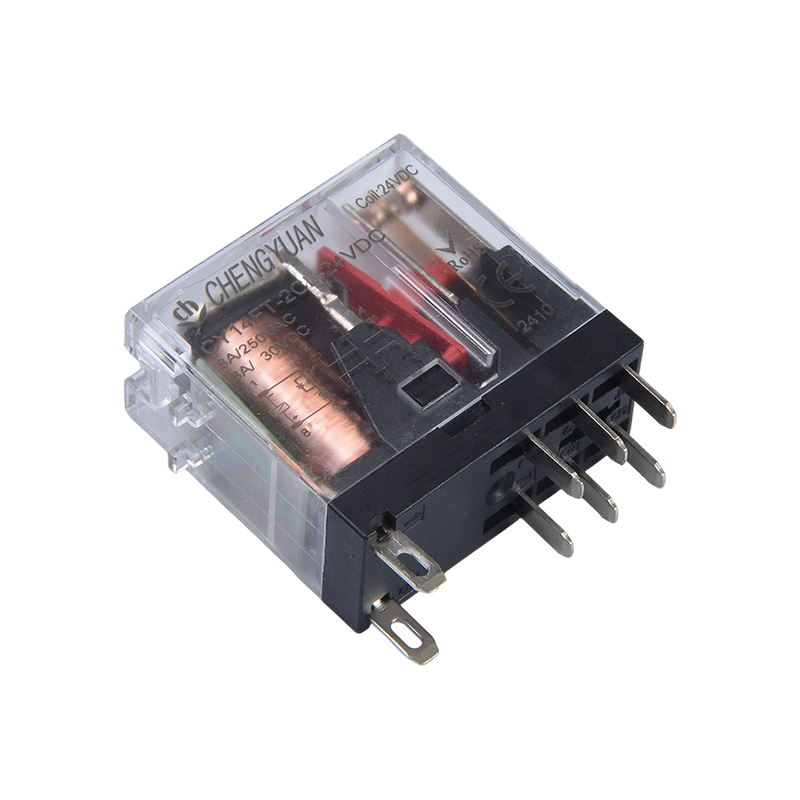

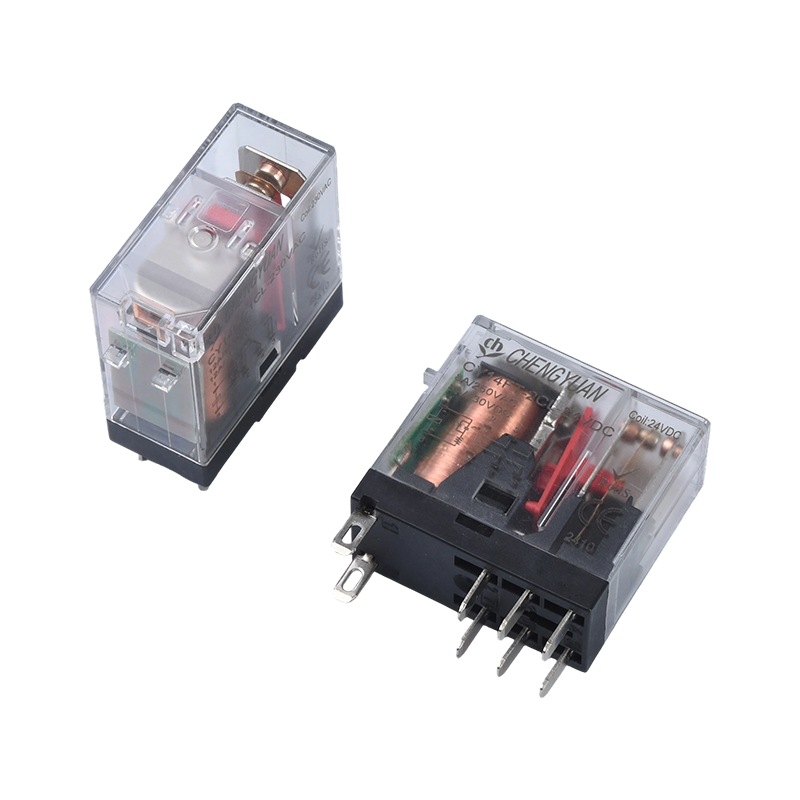

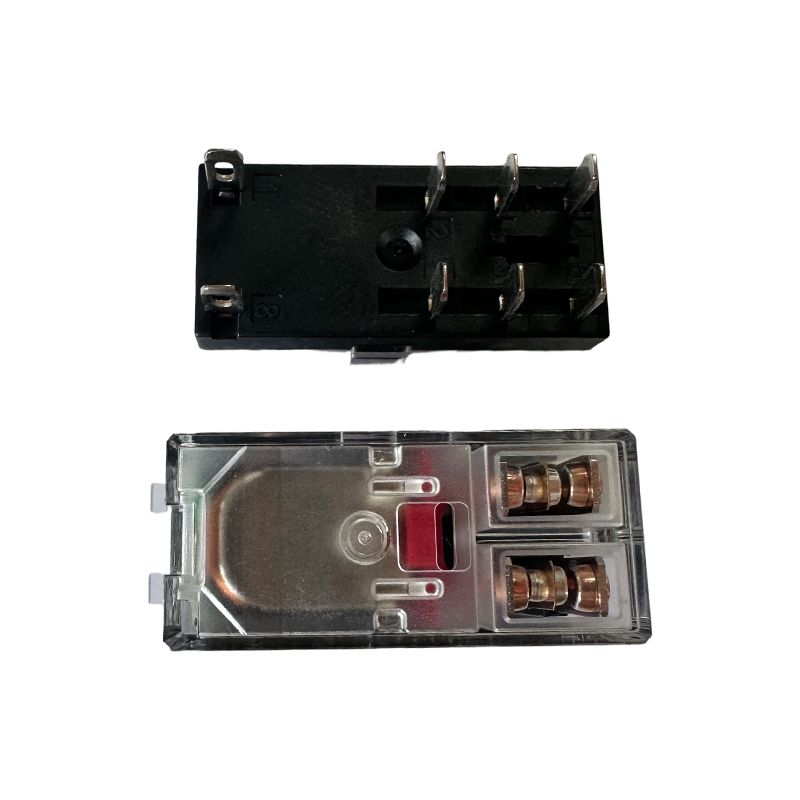

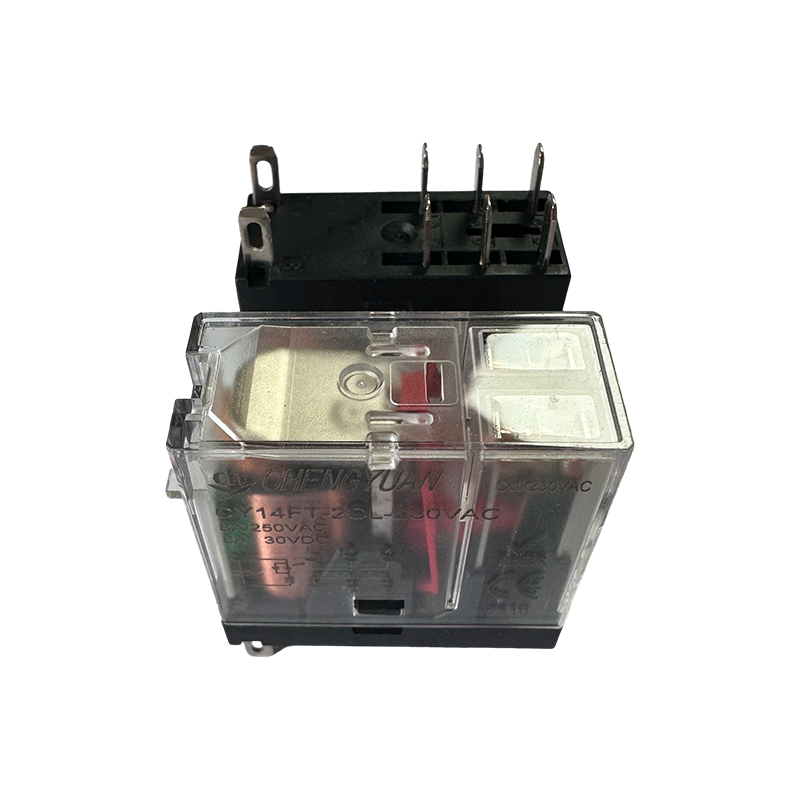

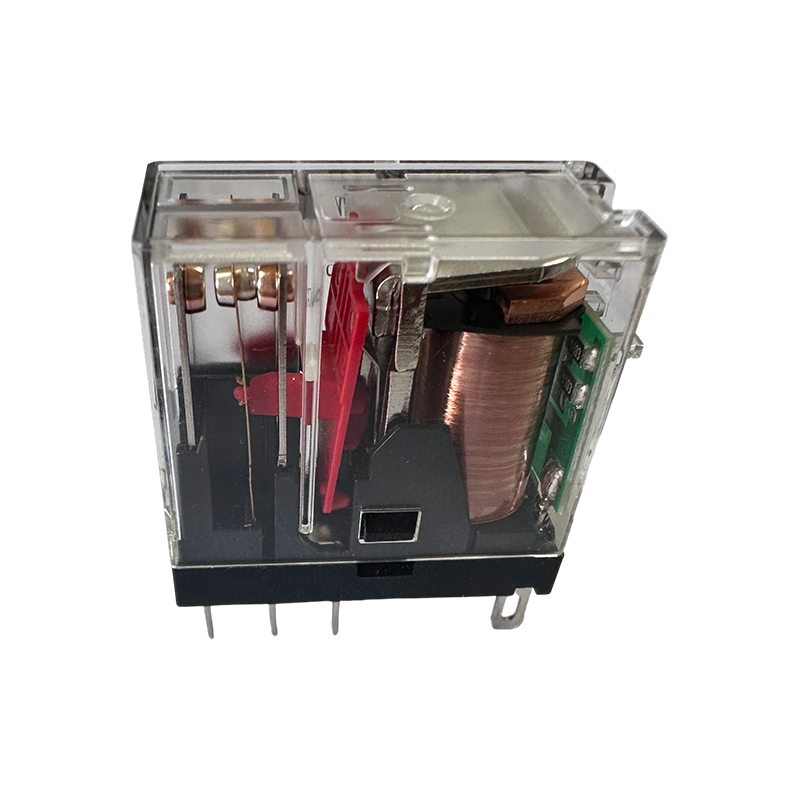

CY14FT-2CL Relay,DPDT Relay,14F wide foot relay,8A 5PIN Power Relay.

The CY14FT-2CL Relay is a power relay with a wide-foot design, also known as a DPDT Relay, 14F wide foot relay, or 8A 5PIN Power Relay. Its core differentiating features are its wide coil voltage range of 12VDC-220VDC/VAC and its unique wide-foot structure, making it more versatile than similar relays. With a rated load of 8A 250VAC/30VDC, it uses a 5-pin configuration and a double-pole double-throw (DPDT) contact structure, enabling multi-circuit control and suitability for various complex circuit scenarios, while complying with general industrial safety and reliability standards.

Contact Us
PREV：CY49F Relay,Slim Power Relay,49F Relay,Signal Relay , 4PIN PCB 5A 0.12W Small Relay. NEXT：CY14FT-1CL Relay,SPSP Relay，14F wide foot relay,12A 5PIN Power Relay.
  • Product Details
  • FAQ

Advantages:
• Wide AC/DC Voltage Compatibility: The coil voltage supports 12VDC-220VDC/VAC, covering multiple AC and DC voltage specifications, allowing direct matching with different power supply types of control circuits without additional adaptation components.
• Exclusive Wide-Foot Design: The 14F wide-foot structure provides a larger contact area, stronger welding stability, and adapts to specific PCB board layout requirements, reducing the risk of loosening.
• Double-Pole Double-Throw Function: The DPDT contact form allows for simultaneous or independent control of two sets of circuits, expanding circuit control dimensions, reducing the number of relays used, and simplifying circuit design.
• Stable Load Performance: Rated load of 8A 250VAC/30VDC, stable contact resistance, and fast switching response meet the continuous switching needs of medium-to-low power circuits.
• Convenient Installation and Assembly: The 5-pin layout is regular, and the wide-foot design facilitates positioning and welding, adapting to automated production processes and improving assembly efficiency and accuracy.
• Wide Range of Applications: Compatible with AC and DC control circuits, the combination of wide voltage and wide-foot design makes it suitable for terminal equipment with different voltage environments and PCB layouts.

Applicable Scenarios:
• Industrial Control Equipment: Small and medium-sized PLC expansion modules, automation control circuits, machine tool auxiliary control circuits, suitable for mixed AC/DC control scenarios.
• Home Appliances: Mode switching circuits for large home appliances (such as air conditioners and washing machines), and power control modules for multi-functional small appliances.
• Commercial Electronic Equipment: Signal switching and power control circuits for office automation equipment (printers, copiers) and audio-visual equipment. • Security and Smart Home: Access control systems, security monitoring, power circuits, and multi-mode control circuits for smart lighting all rely on wide voltage adaptability to ensure stable operation.
