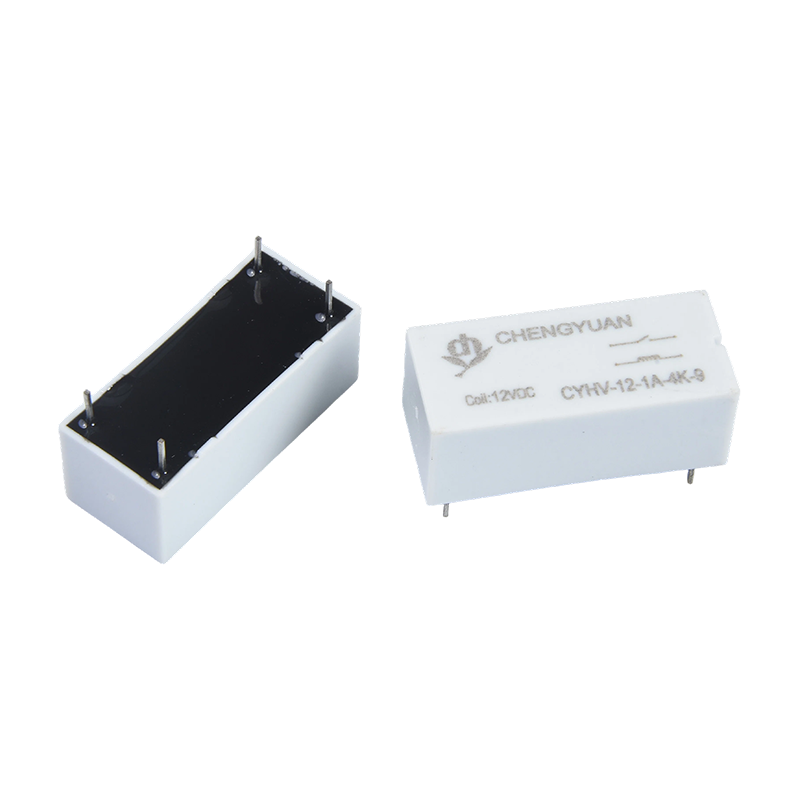

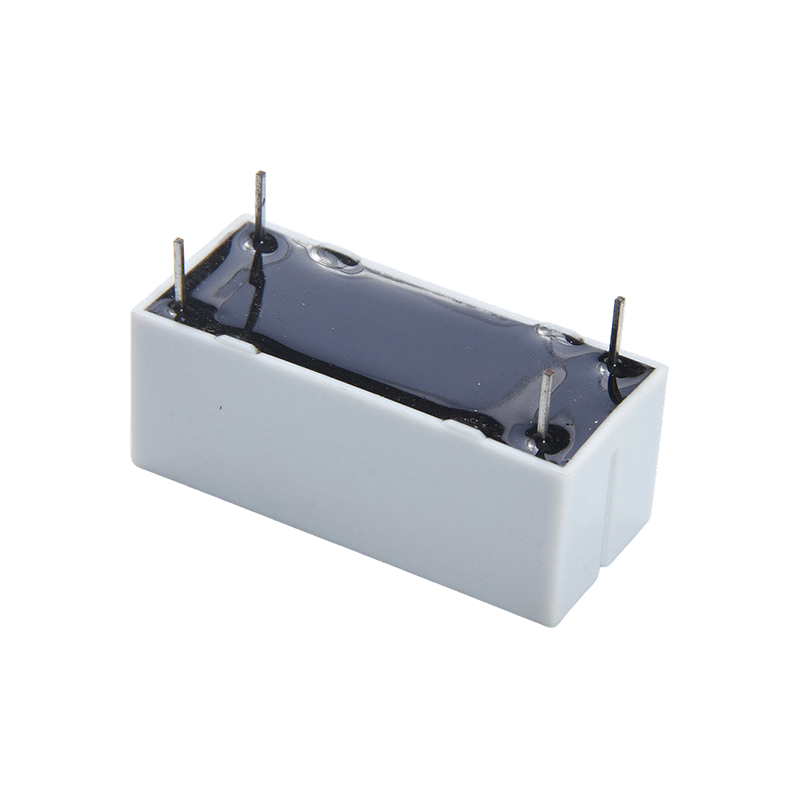

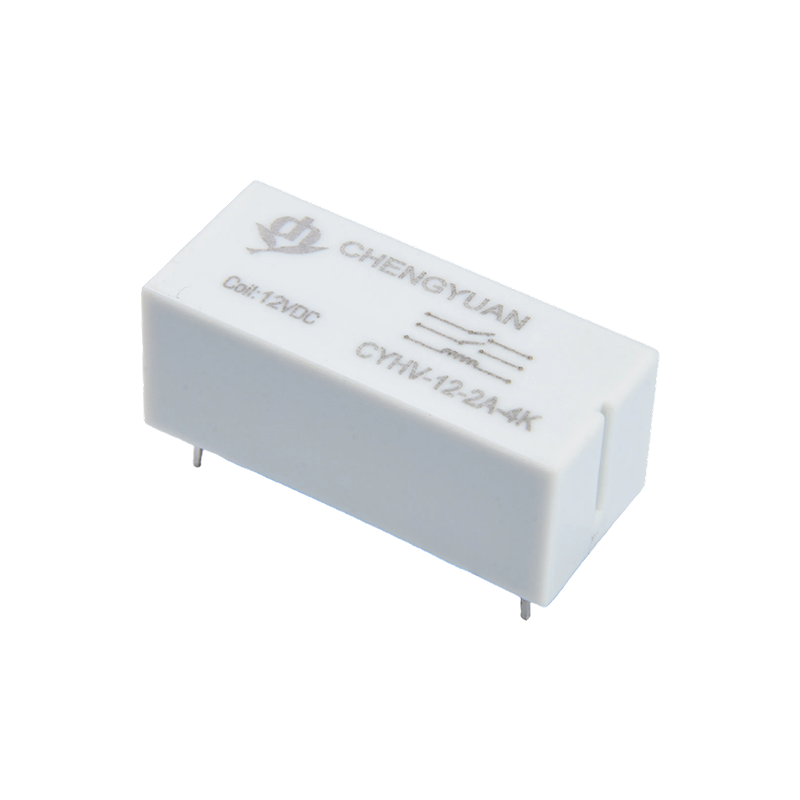

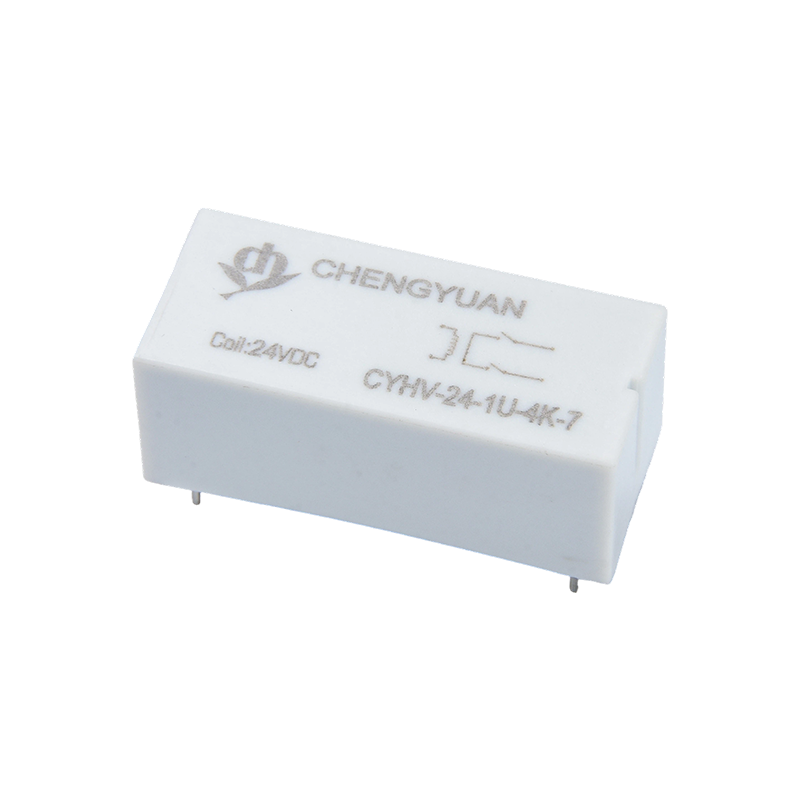

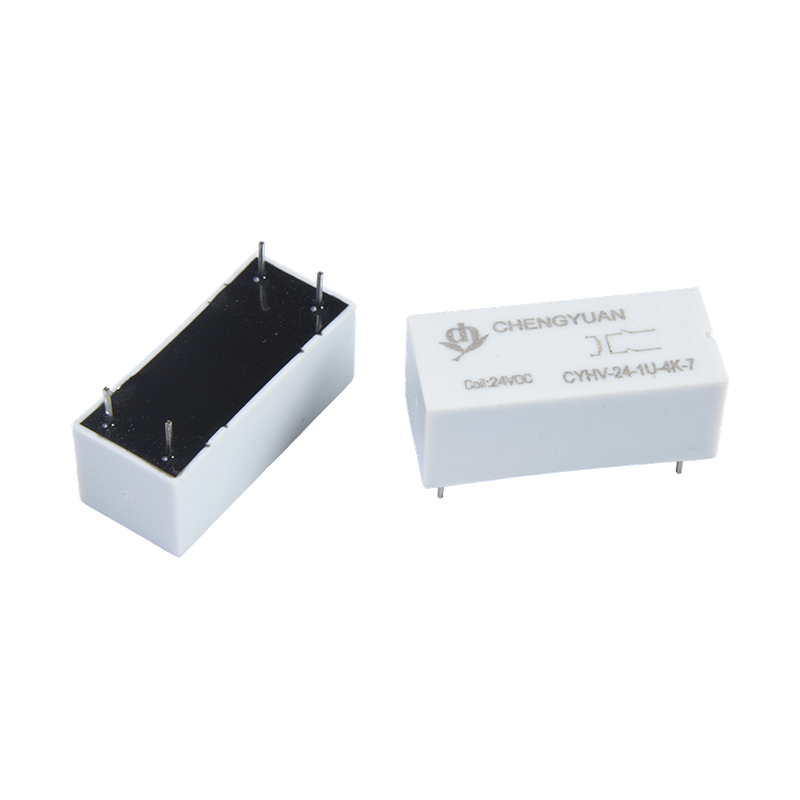

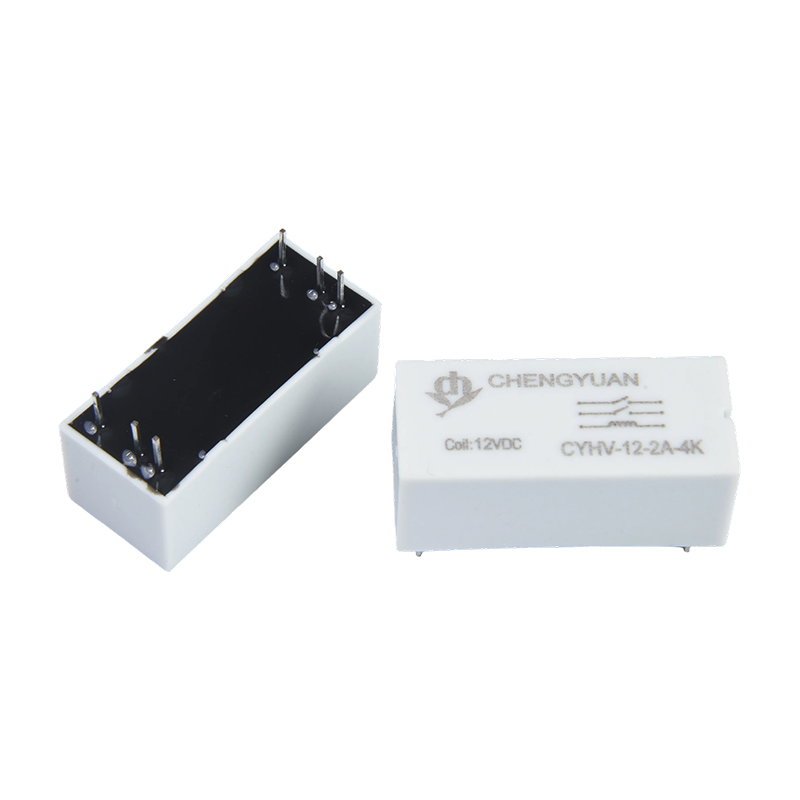

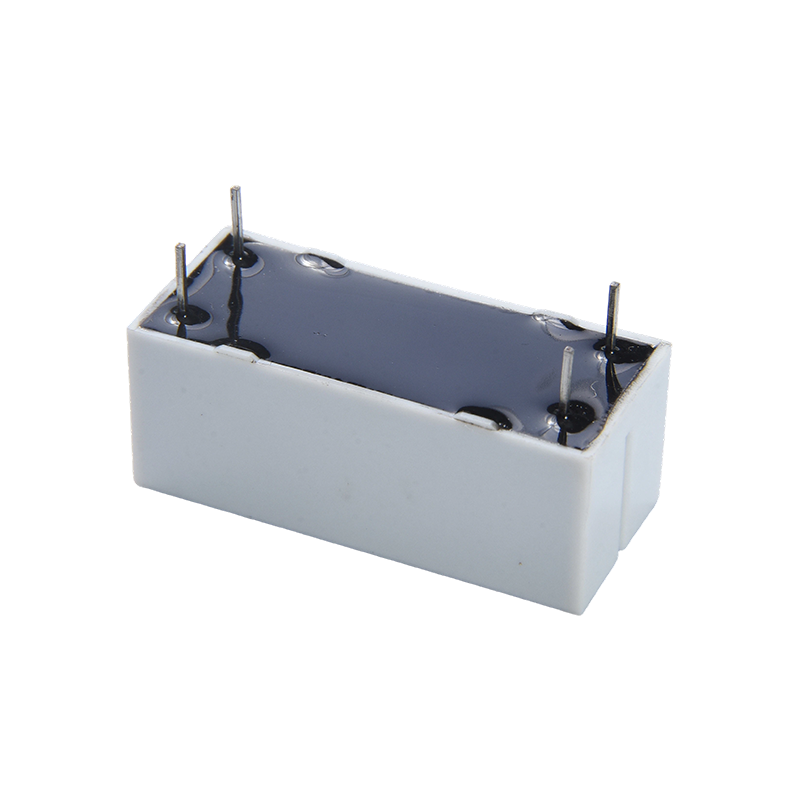

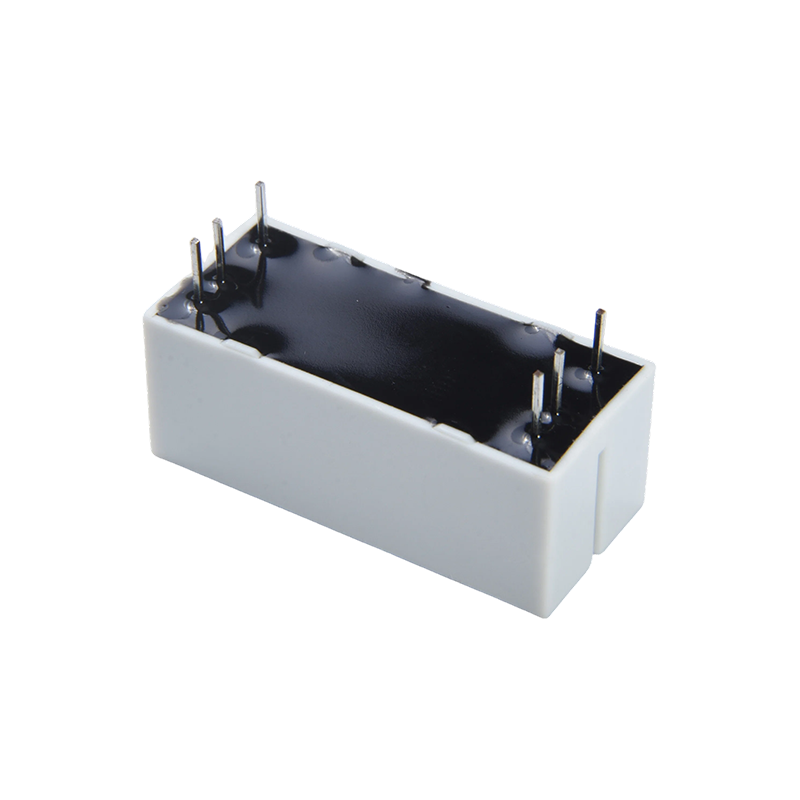

Product Advantages:
Ultra-High Voltage Isolation: Withstand voltage between contacts up to 6000V, providing excellent high-voltage isolation capabilities for PCB-level relays, effectively blocking high-voltage interference.
High-Voltage Low-Current Switching: Optimized for switching weak currents under high voltage (e.g., 10mA @ 1500VDC) or conventional currents under low voltage (e.g., 1A @ 30VDC), with a clearly defined application range.
Sealed Long-Life Structure: The reed switch is sealed in an inert gas, with no moving wear parts, resulting in an extremely long mechanical life and immunity to environmental dust and humidity.
Key Features:
Multi-Level Load Specifications: Supports various load conditions: 10mA/1500VDC, 15mA/1000VDC, 1A/30VDC, accommodating both high-voltage microcurrent and low-voltage conventional current scenarios.
High-Sensitivity Coil: Low coil driving power consumption, compatible with 3-24VDC low-voltage control signals, easily driven directly by integrated circuits.
Compact PCB Mounting: Miniature package design, directly soldered to the PCB, saving space and suitable for high-density instrument internal layouts.
Fast Response: Rapid reed switch action and short switching time meet the timing requirements for signal sampling in instrumentation.
Main Applications:
Safety Monitoring Equipment: Used in high-voltage signal sampling or test circuit switching in insulation monitors, withstand voltage testers, and fault arc detectors.
Precision Instruments: Integrated into high-precision power supplies, meters, and medical imaging equipment (such as X-ray high-voltage generator control) to provide high-voltage isolation and signal switching.
Communication and Industrial Control: Used as a reliable isolation and switching component in communication interfaces and PLC high-voltage input modules requiring high potential isolation.
New Energy Systems: Applied in voltage sampling isolation circuits of photovoltaic inverters and battery management systems (BMS).
|
Contact Data
|
|
Type
|
CYHV
|
|
Contact material
|
electroplate Ir Rh
|
|
Contact Arrangement
|
1A; 2A; 1U
|
|
Contact resistance
|
1A/2A:150mΩ Max.(at 1A 16VDC) 1U:150mΩ*2 Max.(at 1A 16VDC)
|
|
Rated load (Resistive load）
|
100W
|
|
Max. switching current
|
1A
|
|
Max. switching voltage
|
1000VDC
|
|
Max. Carrying Current
|
2.5A
|
|
Characteristics
|
|
Operate time (at rated coil voltage)
|
1ms Max. ( No diode)
|
|
Release time
|
0.3ms Max. ( No diode)
|
|
Insulation resistance
|
Min 100MΩ (at 100VDC)
|
|
Dielectric strength
|
Between open contacts : (1A/2A)4000VAC, (1U)6000VDC
|
|
Between coil and contact : (1A/2A)4000VAC, (1U)6000VDC
|
|
Vibration resistance
|
Destructive
|
10-55Hz, at double amplitude of 1.5 mm
|
|
Functional
|
10-55Hz, at double amplitude of 1.5 mm
|
|
Shock resistance
|
Functional
|
10G Min
|
|
Destructive
|
10G Min
|
|
Endurance
|
Mechanical endurance （10800ops./h)
|
100000000 ops.(at room temperature)
|
|
Electrical endurance (360ops./h)
|
1000000 ops.(at room temperature)
|
|
Ambient temperature
|
-10℃~+65℃( no condensation)
|
|
Weight
|
Approx. 10g
|
|
Coil Data (at 20℃)
|
|
Nominal
voltage
(VDC)
|
Nominal
operating
current
±10%(mA)
|
Coil resistance
±10%(Ω)
|
Nominal operating
power
|
Operate voltage
(Max.)
|
Release voltage
(Min.)
|
Max. allowable voltage
|
|
5
|
33.3
|
150
|
0.166
|
75% of nominal
voltage
|
5% of nominal
voltage
|
130% of nominal voltage
|
|
12
|
24
|
500
|
0.288
|
|
24
|
15
|
1600
|
0.36
|
The data shown above are initial values. Do not apply maximum allowable voltage on the coil for more than 10 minutes to avoid overheating of the coil.

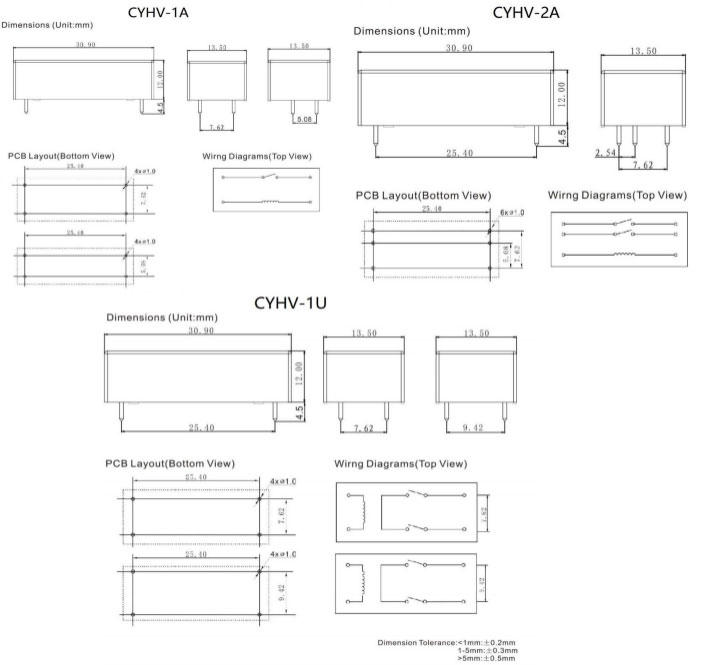

Outline dimension, Wiring diagram, PCB layout (Unit: mm)
Ordering Information
CYHV - 1 A - 12VDC -7 - XX
1 2 3 4 5 6
1： Type： CYHV
2: Number of Poles: 1-1Pole
3: Contact Arrangement: A From A ; U From U
4: Nominal Voltage: 5,12,24VDC
5： Foot distance：5-5.08 ; 7- 7.62 ; 9 - 9.42
6: Special Parameter: Nil-Standard type
Letter or number-Special requirement
Disclaimer: The specification is for reference only. Specifications are subject to change without prior notice.
We could not evaluate all the performance and all the parameters for every possible application. Thus, the users should be in the right position to choose
suitable product for their own application. For sealed relays, after installation and cleaning, please open the ventilation hole in the case before use. If there is any query, please contact Chengyuan for technical services. However, it is the user`s responsibility to determine which product should be used.
