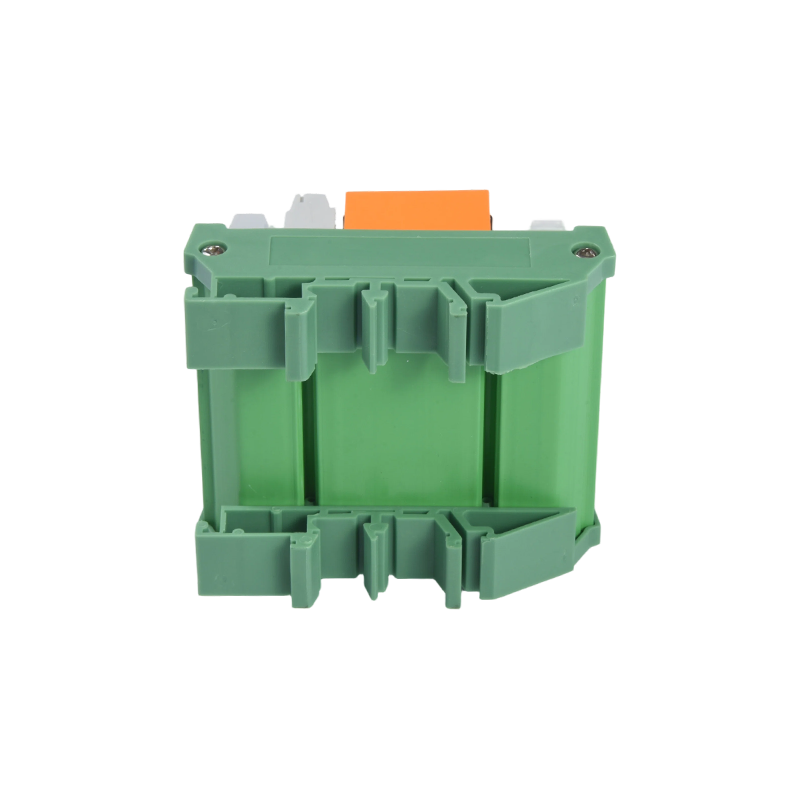

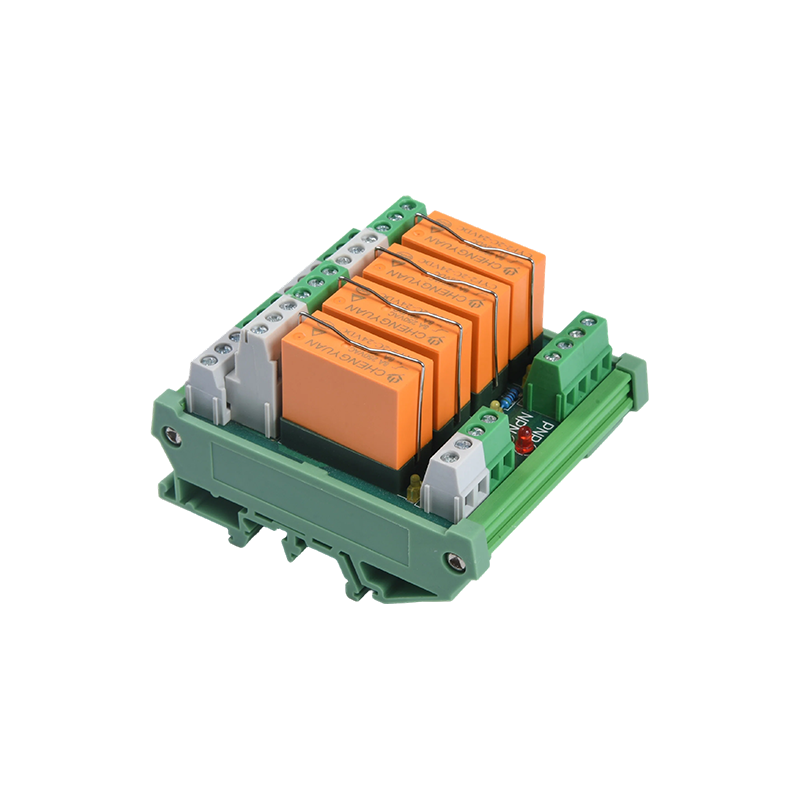

MCYF3 Relay Module,14F Rail Relay Module,14F 16A Industrial connection module.

In industrial applications requiring high power density and large-scale centralized control, the MCYF3 Relay Module series represents a higher-capacity modular solution based on the 14F relay platform. This series features a core capability of switching loads up to 16A per channel and offers up to 32 channel configurations, enabling centralized control of larger power loads within a single module. This provides a higher level of integration for automation systems that need to drive multiple high-current devices simultaneously, effectively simplifying wiring and management in complex systems.

Contact Us
PREV：No previous article NEXT：MCYF2 Relay Module,14F Rail Relay Module,14F 5A 8A Industrial connection module.
  • Product Details
  • FAQ

Features:
Flexible Scale Configuration: Offers various standard configurations from single-channel to 32-channel, allowing users to select precisely the required number of channels and supporting modular system expansion.
Enhanced Heat Dissipation and Structure: Optimized internal layout and heat dissipation paths for high-current characteristics, using industrial-grade connection terminals to ensure stability and safety during long-term high-current operation.
Intelligent Signal Interface: Compatible with various industrial control signals (such as PLC transistor output, 485 bus control, etc.), with some models integrating internal power isolation and signal conditioning circuits.
Comprehensive Status Monitoring: Each channel is equipped with independent LED work status indicators and contact mechanical indicators, supporting rapid fault location; some models have configuration address and communication functions.

Main Applications:
Industrial Production Lines and Heavy Equipment: Centralized control of multiple high-power motors, hydraulic valve groups, industrial furnaces, or large conveyor belts on production lines.
Commercial Building Energy Management: Used for centralized lighting control, fan coil unit group control, and high-power billboard power management in shopping malls and venues.
Power Distribution and Automation: In low-voltage power distribution systems, it acts as a remote switching unit for multiple outgoing circuits, enabling intelligent power distribution.
Experimental Equipment and Test Benches: Provides a programmable load power switching matrix for high-power multi-channel test systems (such as aging test cabinets, environmental test chambers).

Single, 4 groups, 8 groups, 16 groups, 32 groups
