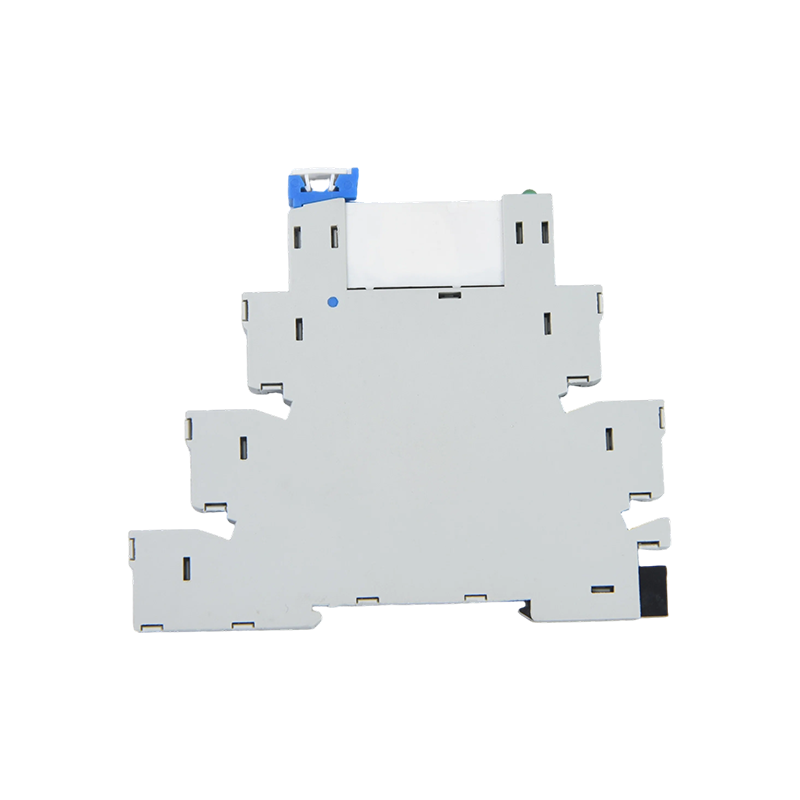

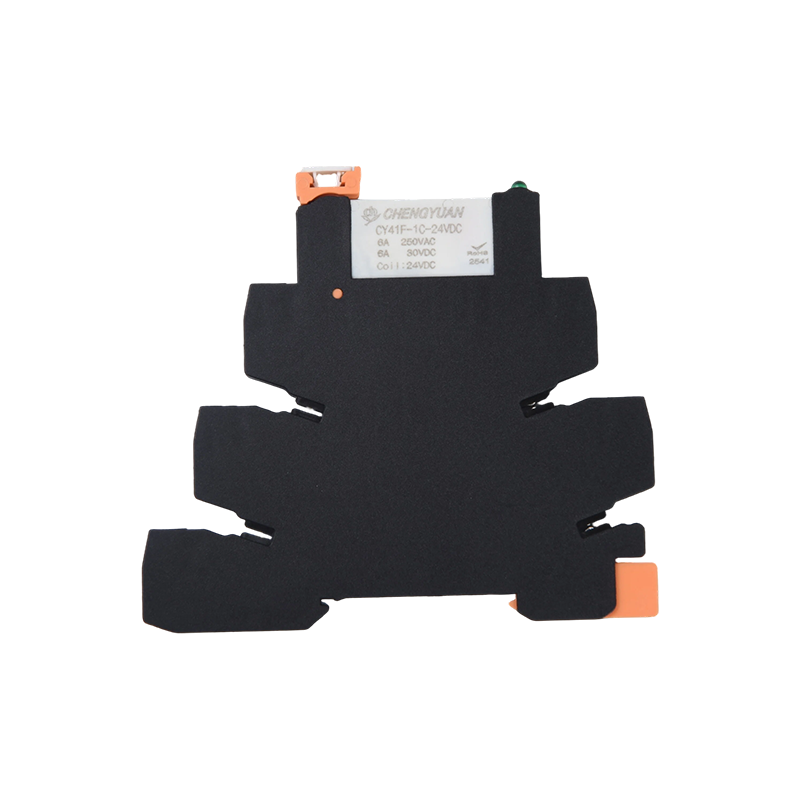

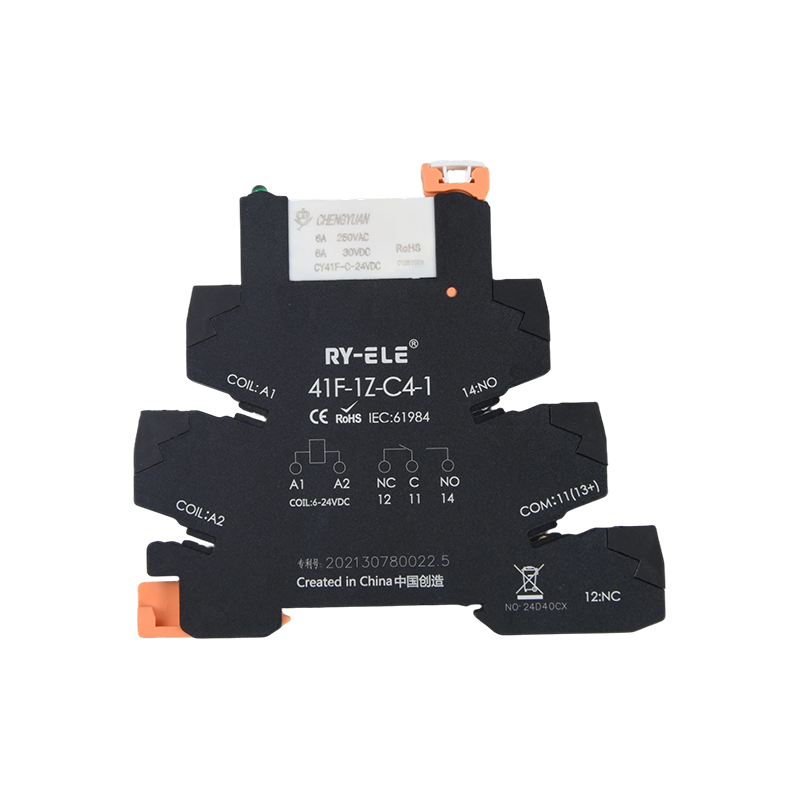

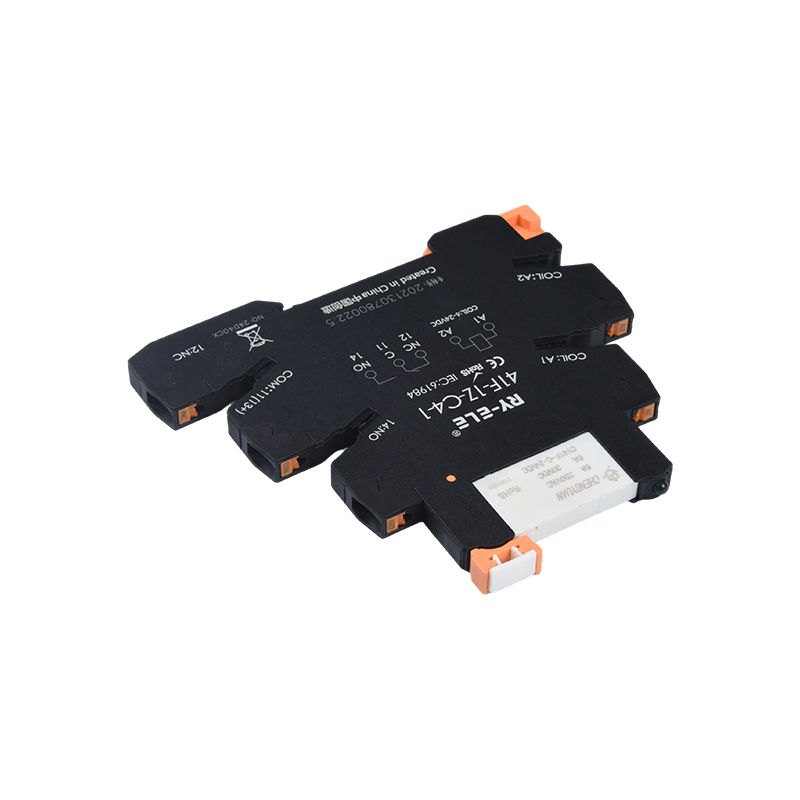

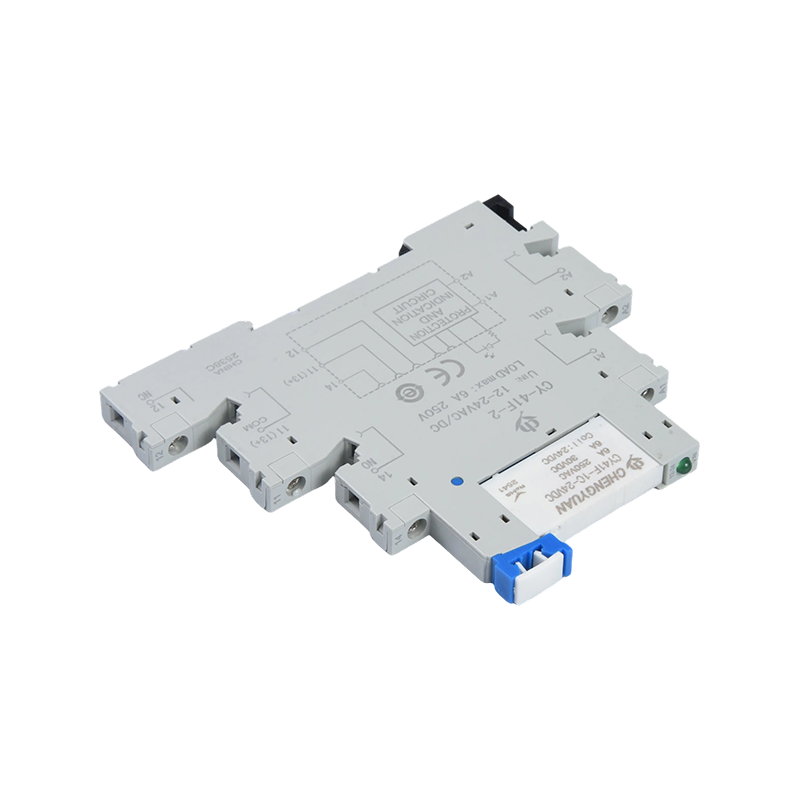

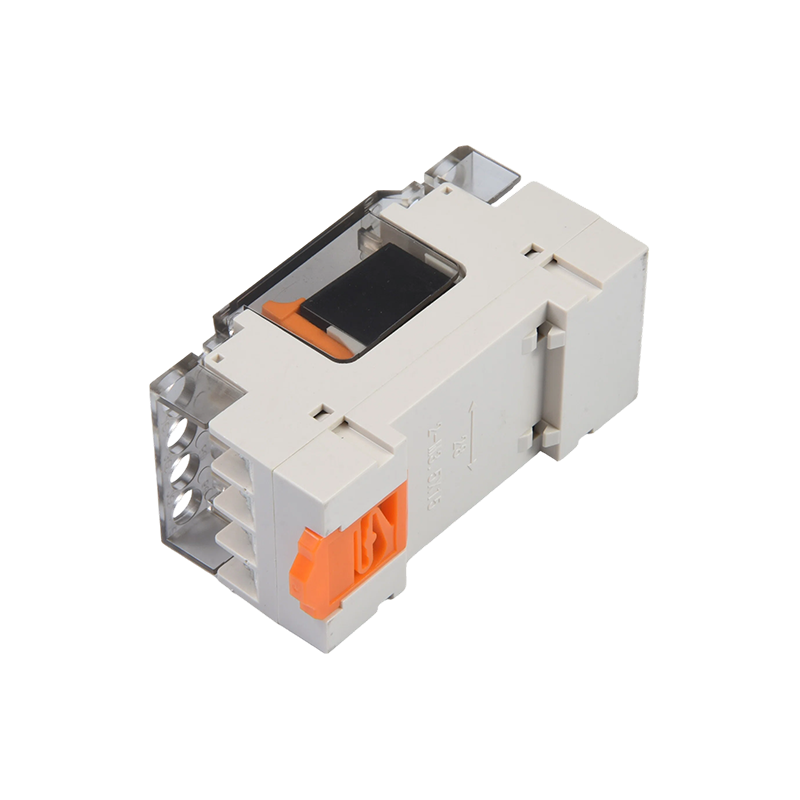

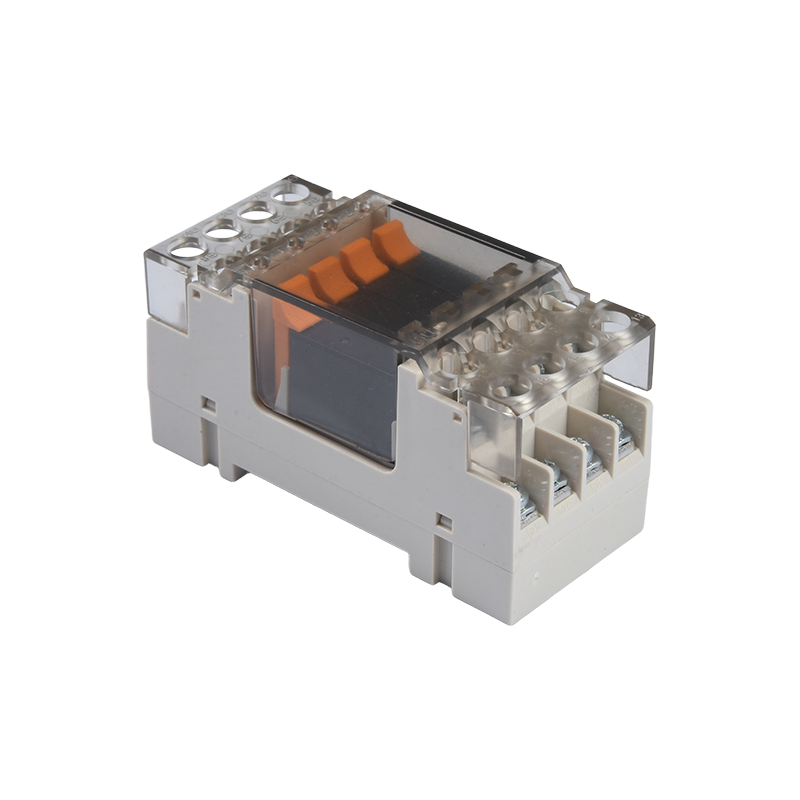

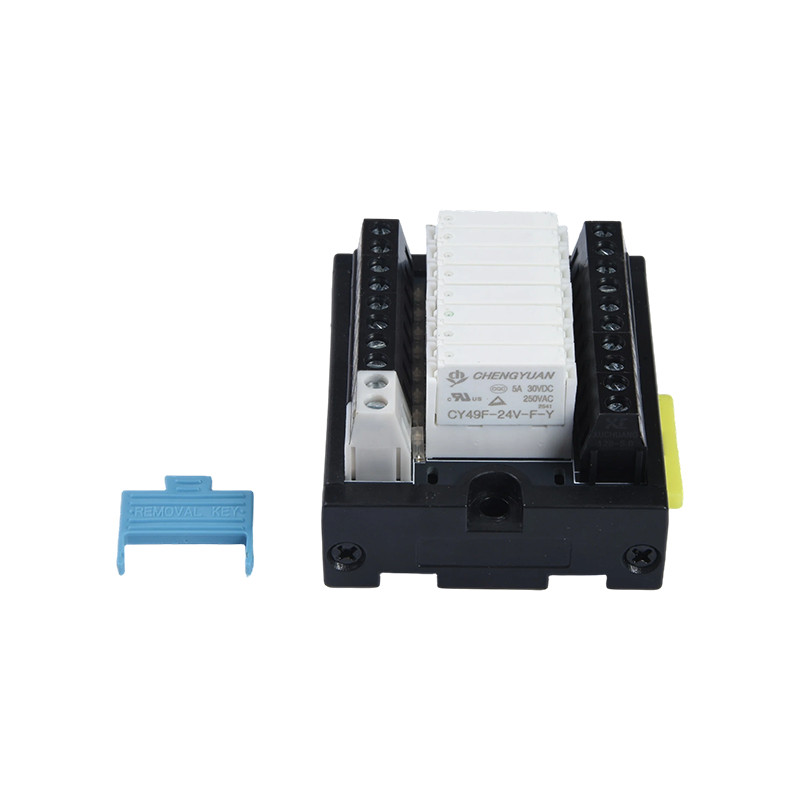

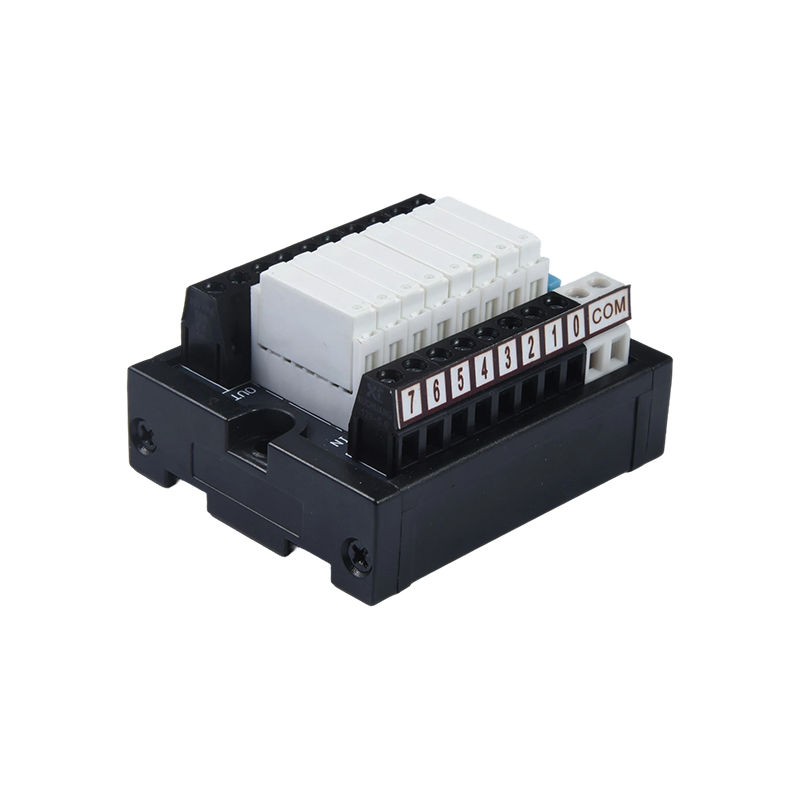

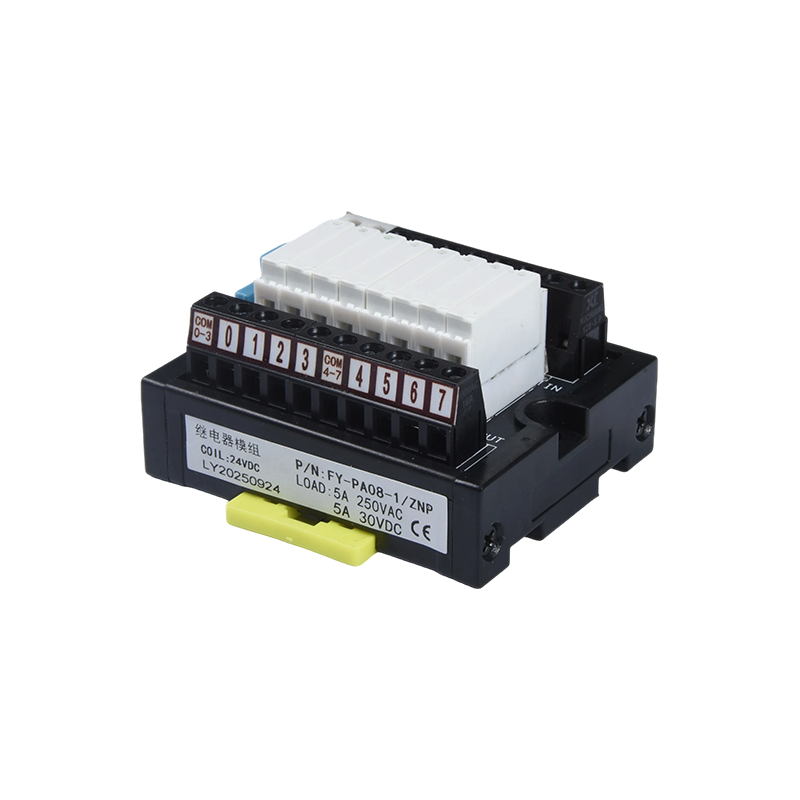

M49F Relay Module,49F Industrial Control Module,49F Relay Module,Relay combination module

In industrial control and automation system integration, the M49F Relay Module series provides a standardized, modular multi-channel relay solution. This series integrates multiple independent CY series power relays into a unified modular housing, enabling quick installation and maintenance through standard interfaces and terminals. This significantly simplifies the wiring complexity of multi-channel control circuits, achieving higher installation efficiency and a cleaner system layout compared to installing individual relays separately, especially in applications requiring centralized control of multiple high-power loads.

Contact Us
PREV：M41F Relay Module,41F Rail Relay Module,41F Slim Relay Module Protection Circuit 6A. NEXT：No next article
  • Product Details
  • FAQ

Advantages:
Modular Integrated Design: Provides standardized modules with various channel specifications, including single-channel, 4-channel, 8-channel, 16-channel, and 32-channel options, enabling centralized installation, unified power supply, and signal connection for multiple relays.
Convenient Installation and Maintenance:  Uses DIN rail mounting or screw fixing, and is equipped with integrated input/output terminal blocks and status indicators, greatly simplifying on-site wiring, debugging, and subsequent maintenance.
Strong System Compatibility: The module typically integrates drive circuits and protection components (such as freewheeling diodes and fuses), allowing direct connection to standard industrial control signal interfaces such as PLCs, DCSs, and microcontrollers.

Main Applications:
Industrial Automation Production Lines: Centralized control of various actuators on production lines, such as motors, cylinders, solenoid valves, heaters, and alarm lights.
Building Automation Systems: Used in smart buildings for group control of lighting circuits, air conditioning fans, water pumps, and sunshades.
Power Monitoring and Protection: In power distribution cabinets and smart grid systems, it enables remote switching and status feedback of multiple branch circuits.
Laboratory and Test Equipment: Integrated into automated test benches for sequentially switching power and signal paths of tested equipment or various test loads.

Single, 4 groups, 8 groups, 16 groups, 32 groups
