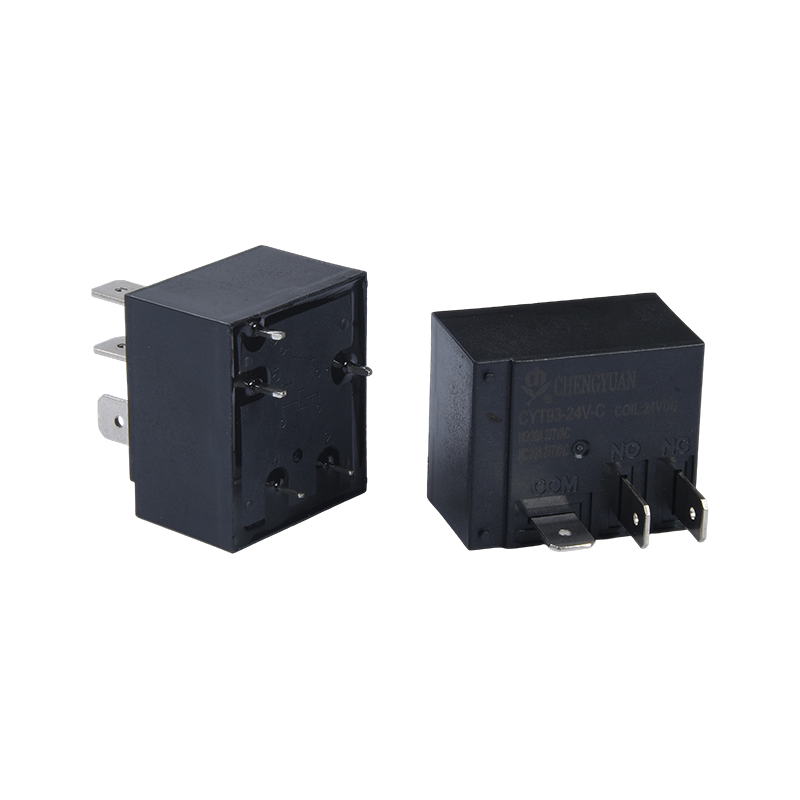

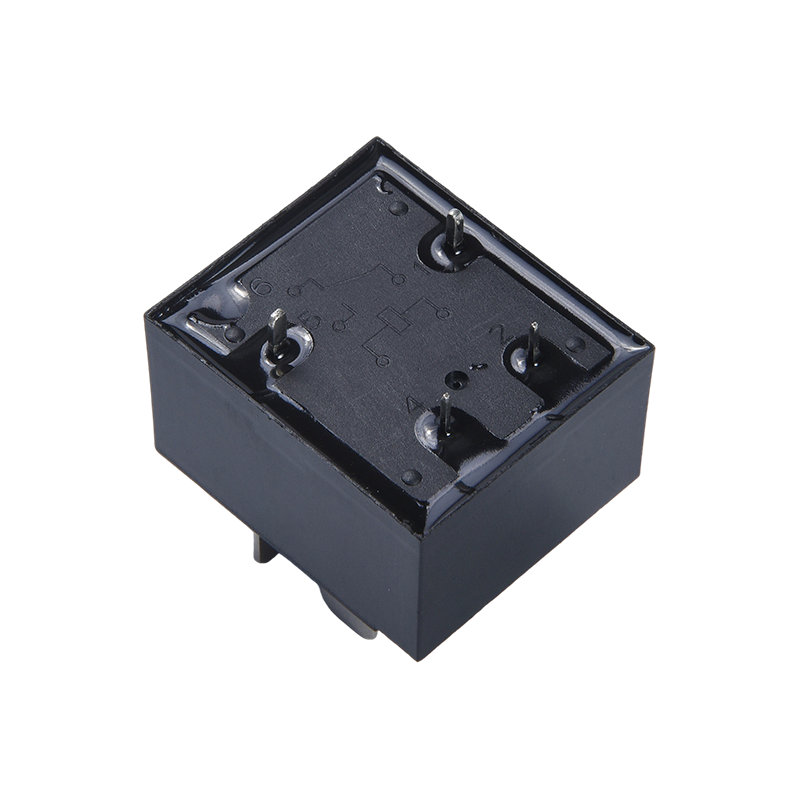

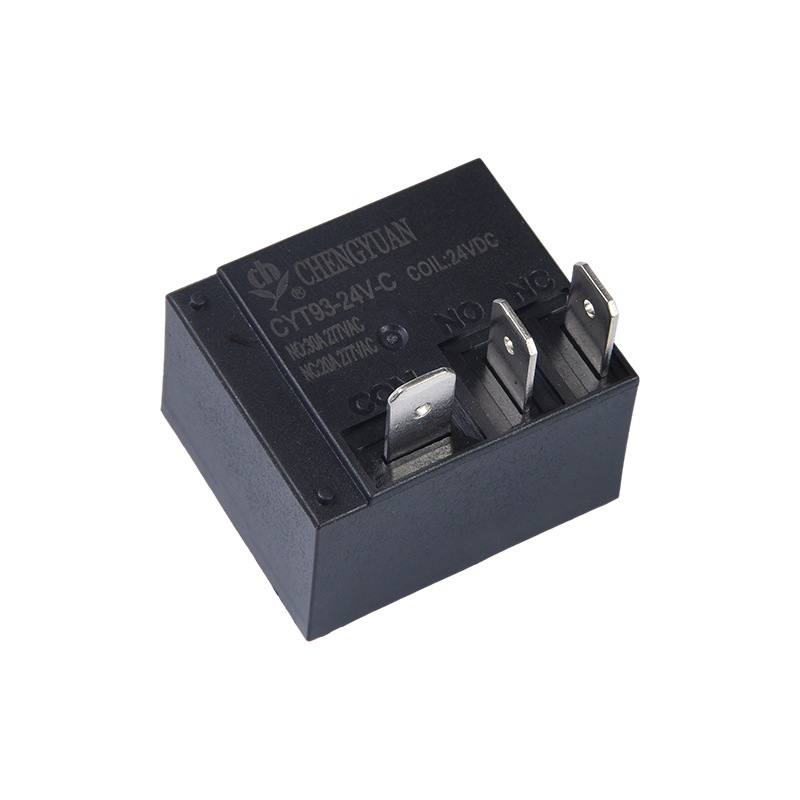

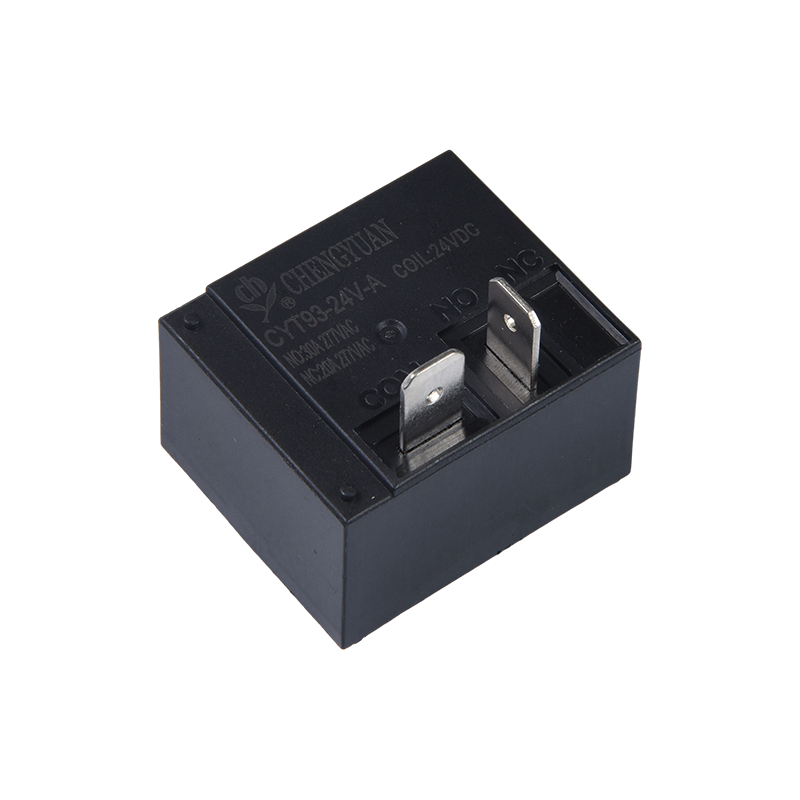

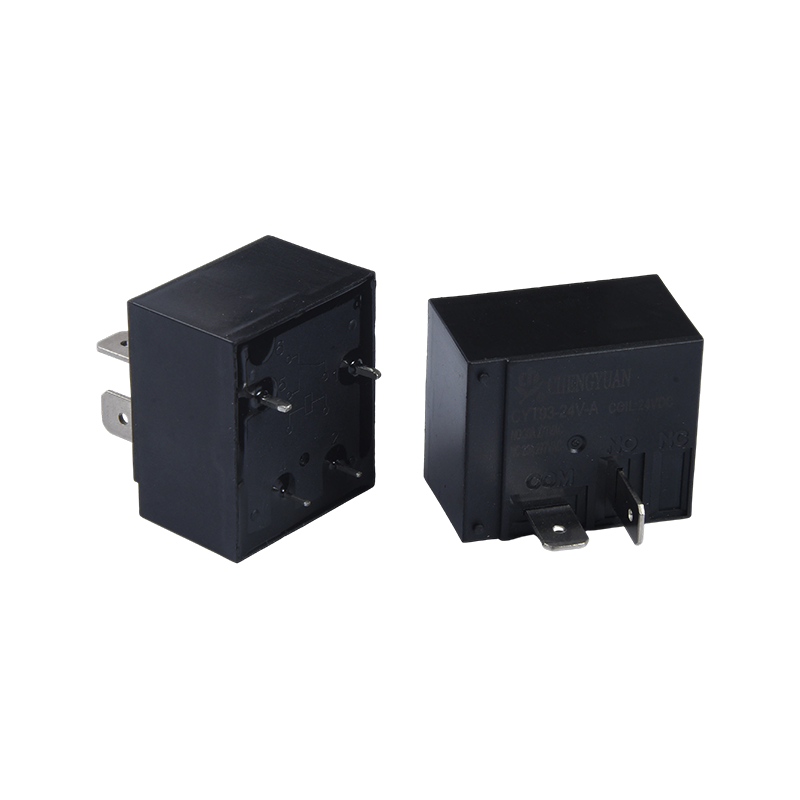

Product Features:
• High Load Switching Capacity: Supports a maximum switching load of 30 amps (some specifications up to 40A), capable of handling the control needs of high-power equipment.
• Compact Design: Small size, suitable for high-density installation in space-constrained electrical boxes or control panels.
• Low Power Consumption: Coil power consumption as low as 0.9W, effectively reducing system energy consumption and heat generation.
• Multiple Terminal Options: Copper terminal products are available to ensure excellent conductivity and contact reliability when handling high currents.
• Wide Voltage Range: Coil voltage covers 3VDC to 48VDC, compatible with various control system voltage levels.
Typical Applications:
• Automotive Electronics: Used for high-power load control in automobiles, such as heaters, fan motors, and lighting systems.
• Heating and Ventilation Equipment: Suitable for industrial and household HVAC equipment, controlling heating elements or ventilation fans.
• Home Appliances: Used for power switch control in high-power home appliances such as electric ovens and microwave ovens.
• Industrial Control: Used as an actuator in automation equipment requiring high current switching.
|
Contact Data
|
|
Type
|
CYT93
|
|
Contact material
|
Silver alloy
|
|
Contact resistance
|
100mΩ Max.(at 1A 6VDC)
|
|
Rated load (Resistive load）
|
20A/30A 250VAC
|
|
Max. switching current
|
20A/30A
|
|
Max. switching voltage
|
250VAC
|
|
Max. switching power
|
5000VA/7500VA
|
|
Characteristics
|
|
Operate time (at rated coil voltage)
|
15ms Max. ( No diode)
|
|
Release time
|
10ms Max. ( No diode)
|
|
Insulation resistance
|
Min. 1000MΩ (at 500VDC)
|
|
Dielectric strength
|
Between open contacts:1500VAC, 50/60Hz for 1min
|
|
Between coil and contact : 2500VAC , 50/60Hz for 1min
|
|
Vibration resistance
|
Destructive
|
10-55Hz ,at double amplitude of 1.5 mm
|
|
Functional
|
10-55Hz ,at double amplitude of 1.5 mm
|
|
Shock resistance
|
Functional
|
10G Min.
|
|
Destructive
|
100G Min.
|
|
Endurance
|
Mechanical endurance （10800ops./h)
|
10000000 ops.(at room temperature)
|
|
|
Electrical endurance (360ops./h)
|
100000 ops.(at room temperature)
|
|
Ambient atemperature
|
-40℃~+85℃( no condensation)
|
|
Weight
|
Approx.28g
|
Coil Data (at 20℃)
|
Nominal
voltage
(VDC)
|
Nominal
operating
current
±10%(mA)
|
Coil resistance
±10%(Ω)
|
Nominal operating
power
|
Operate voltage
(Max.)
|
Release voltage
(Min.)
|
Max. allowable voltage
|
|
5
|
180
|
27
|
Approx 0.9W
|
75% of nominal
voltage
|
5% of nominal
voltage
|
130% of nominal voltage
|
|
6
|
150
|
40
|
|
9
|
100
|
90
|
|
12
|
75
|
160
|
|
15
|
60
|
250
|
|
18
|
50
|
360
|
|
24
|
37.5
|
640
|
|
48
|
18.75
|
2560
|
The data shown above are initial values. Do not apple maximum allowable voltage on coil for more than 10 minutes to avoid overheating of thd coil.

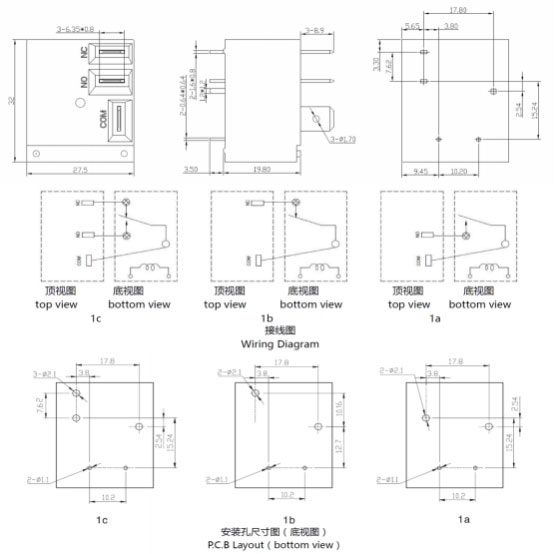

Outline dimension, Wiring diagram, PCB layout (Unit:mm)

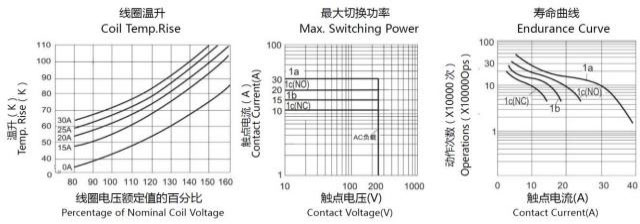

Characteristic Curves
Ordering Information
CYT93 - 1 - C - 12VDC - H - D - T - XX
1 2 3 4 5 6 7 8
1： Type： CYT93
2: Number of Poles: 1-1Pole
3: Contact Arrangement: : A Form A ; B Form B ; C Form C
4: Nominal Voltage: 5,6,9,12,15,18,24,48VDC
5: Enclosure Color: H-Black
6: Coil Pwor: D-0.9W
7: Protective Construction: S-Flux proofed,
SH- Sealed type washable
8: Special Parameter: Nil-Standard type
Letter or number-Special requirement
Flux-proof relays can not be used in the environment with pollutants like H2S, SO2, NO2, dust, etc.
Water cleaning or surface processing is not suggested after the flux-proof relays are assembled on the PCB.
