Product Features:
High Contact Switching Capacity: In addition to the standard 20A load, the contacts support switching up to 35 amps, capable of handling the instantaneous current surges during car starting or from high-power accessories.
Ultra-Low Power Consumption: Coil power consumption is only 0.6W/0.8W, helping to reduce the burden on the vehicle battery and aligning with the automotive industry's trend towards low energy consumption.
Excellent Mechanical Durability: Features high shock and vibration resistance, ensuring stable electrical connections even in bumpy driving conditions and engine vibrations.
Wide Coil Voltage Range: Available in various specifications from 3VDC to 48VDC, adapting to different types of automotive circuit voltages.
Compact Design: Optimized structure and small size facilitate dense installation in confined automotive electrical control boxes.

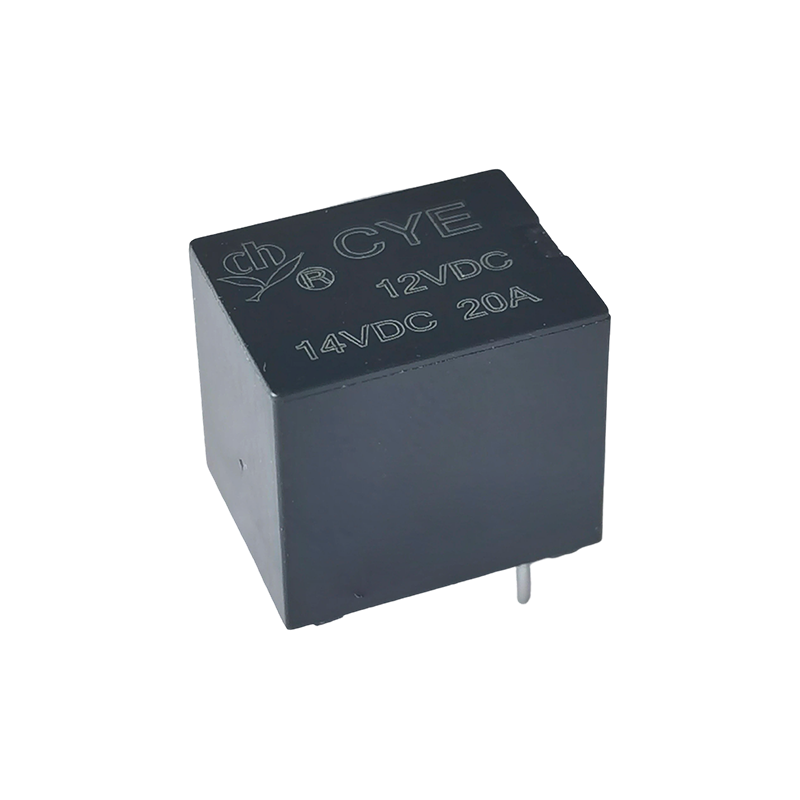

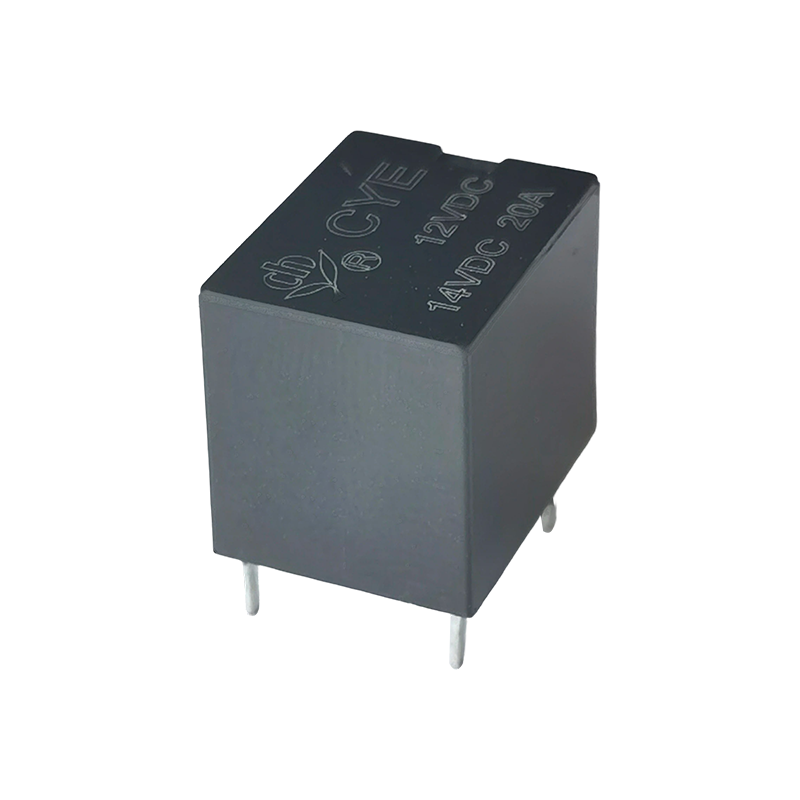

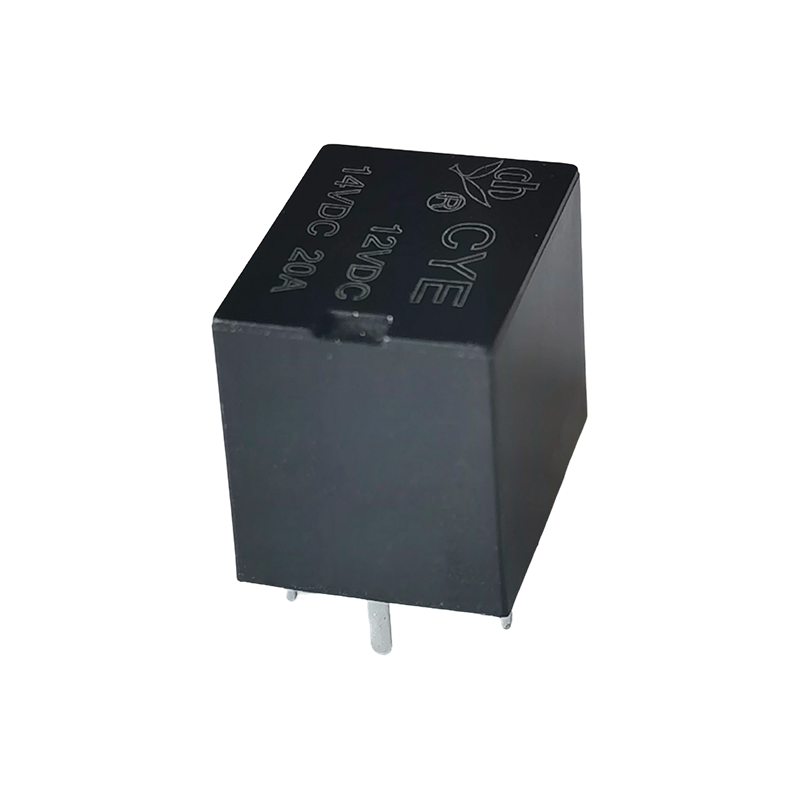

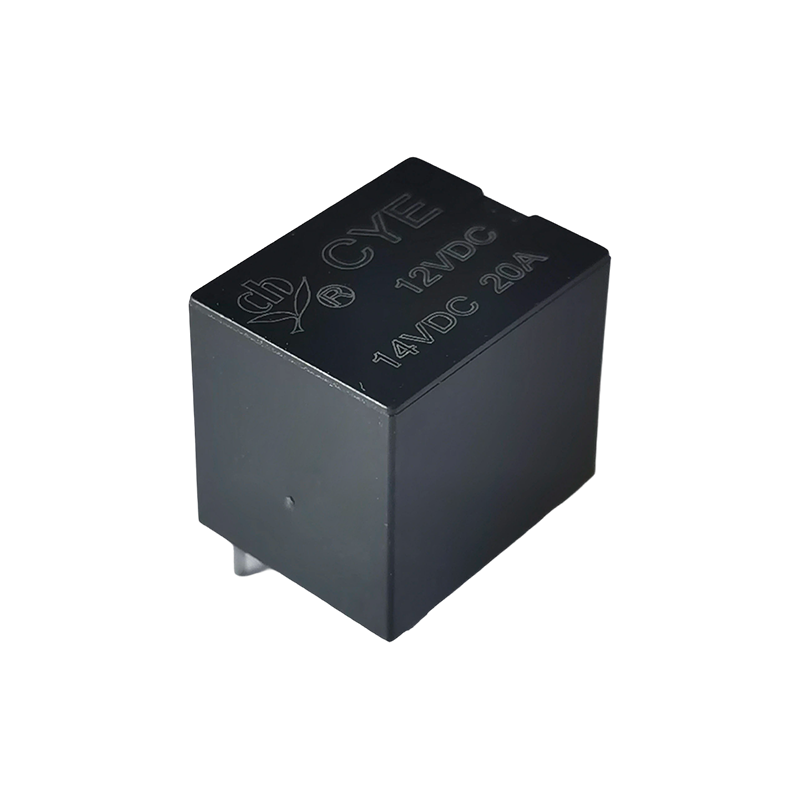

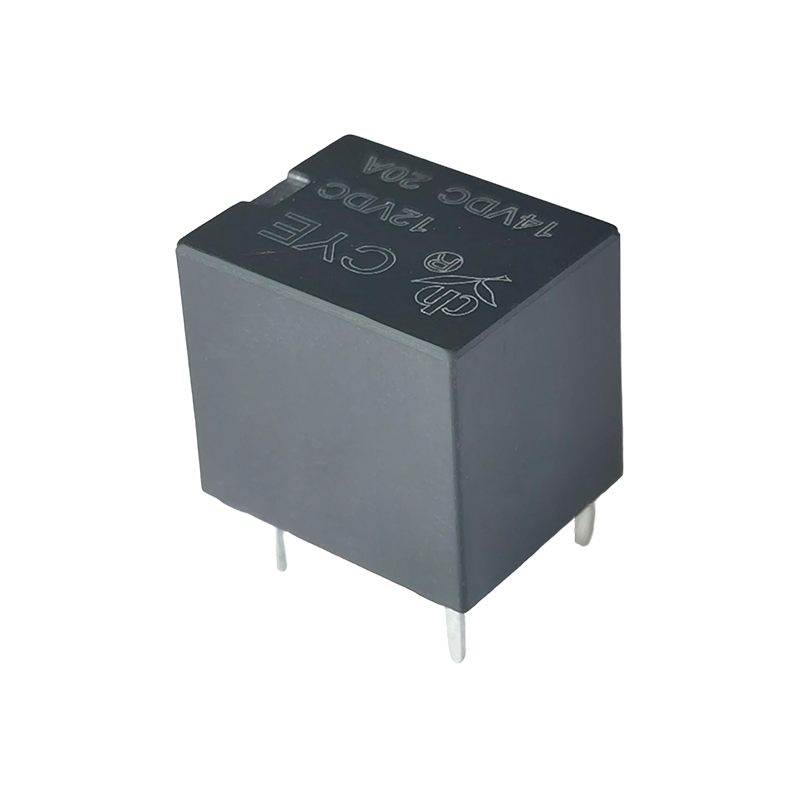

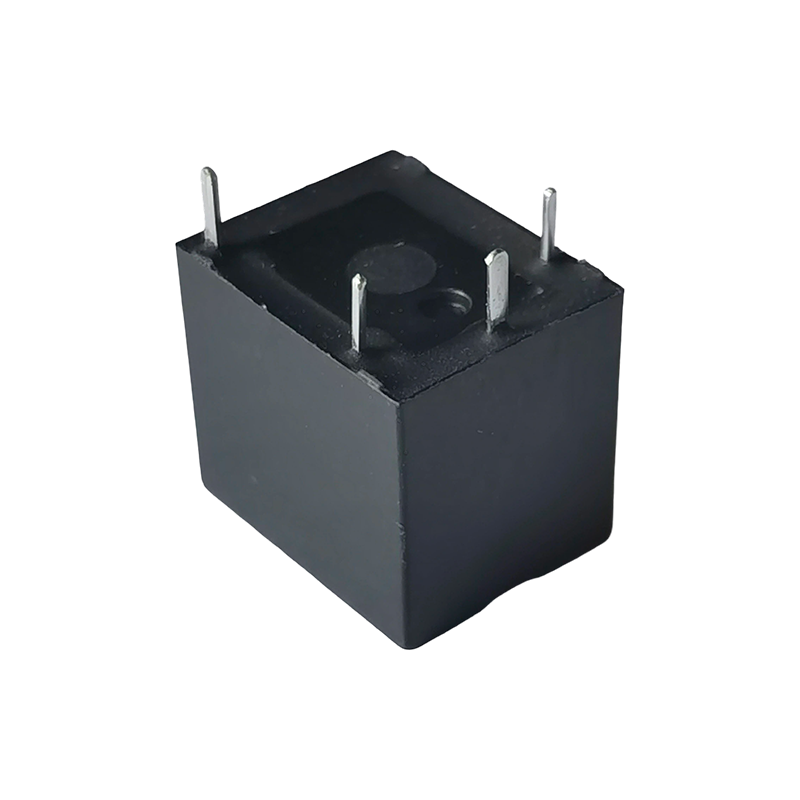

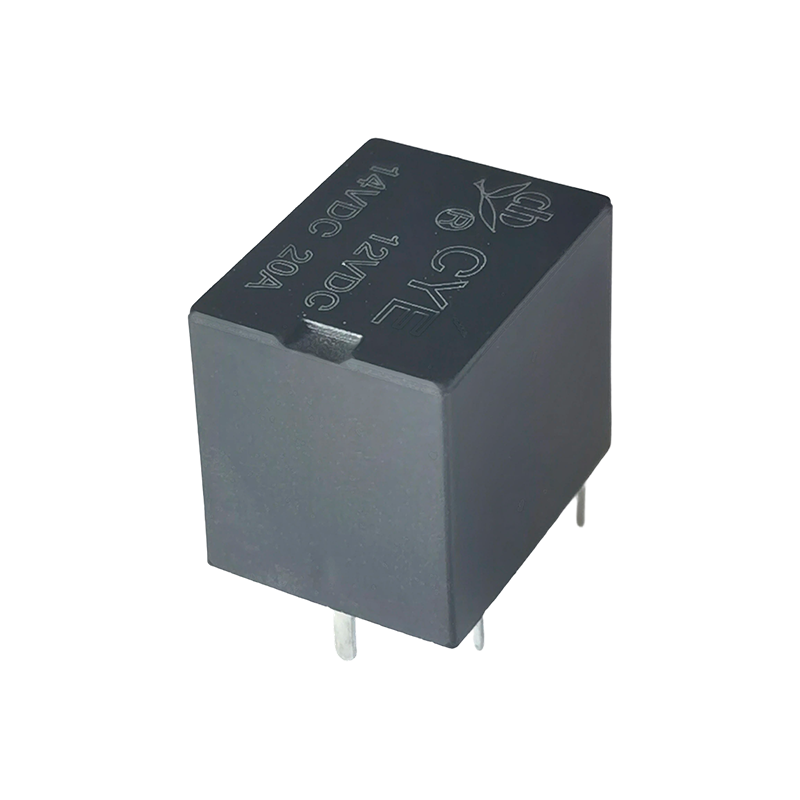

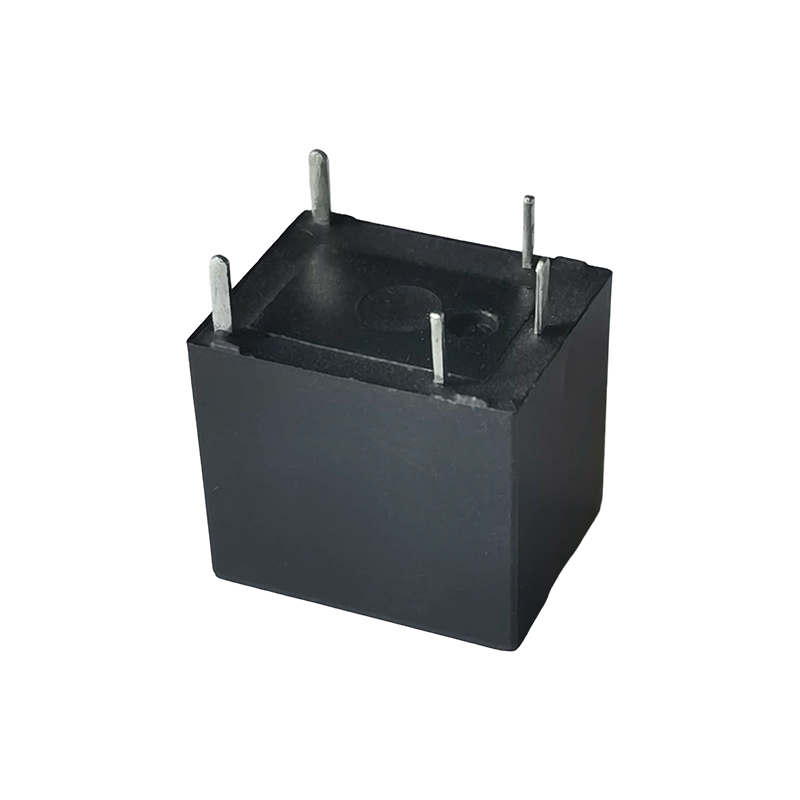

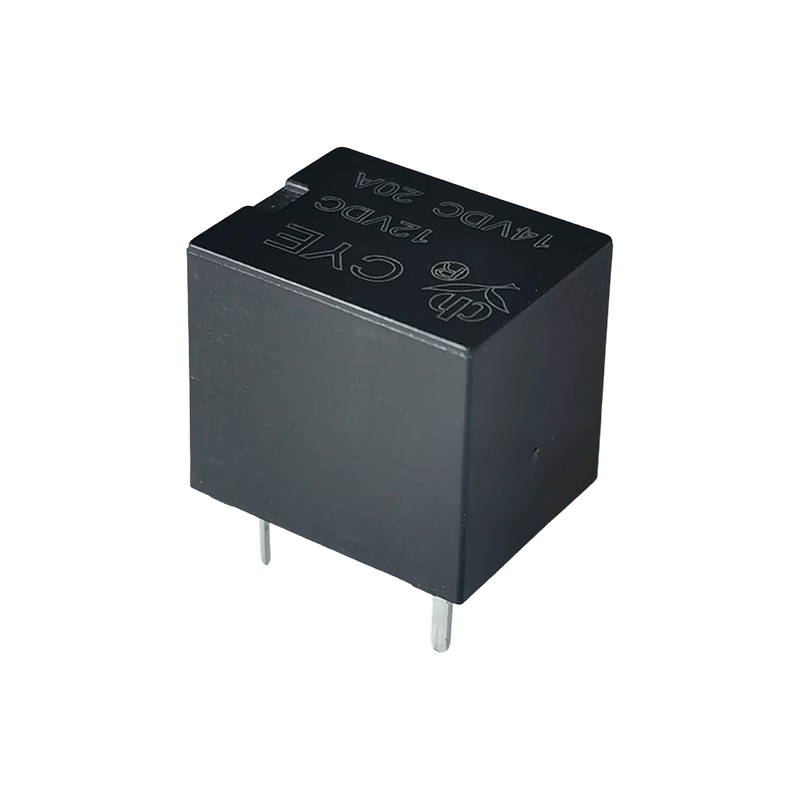

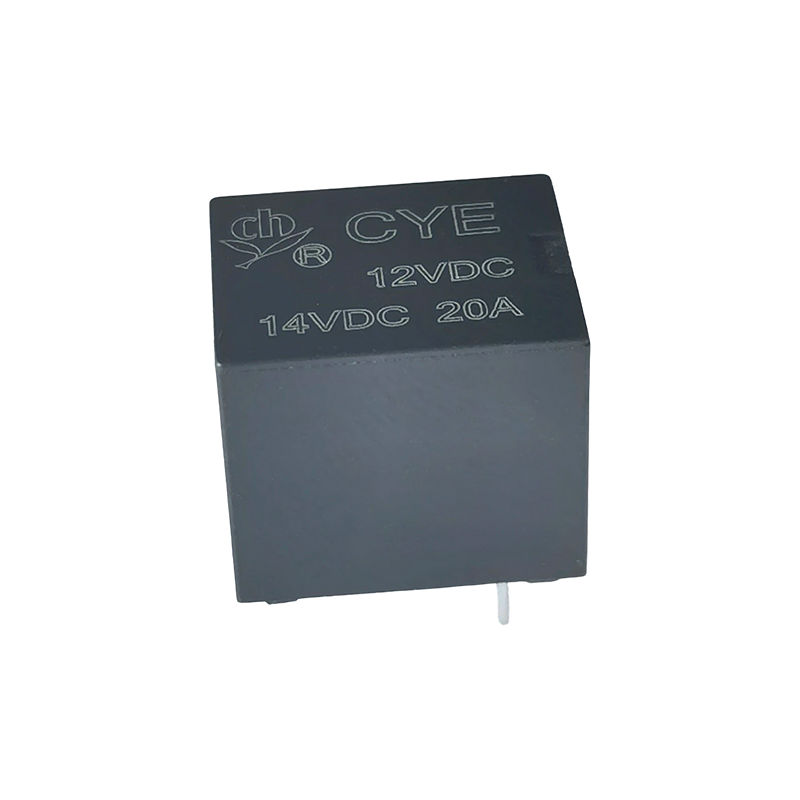

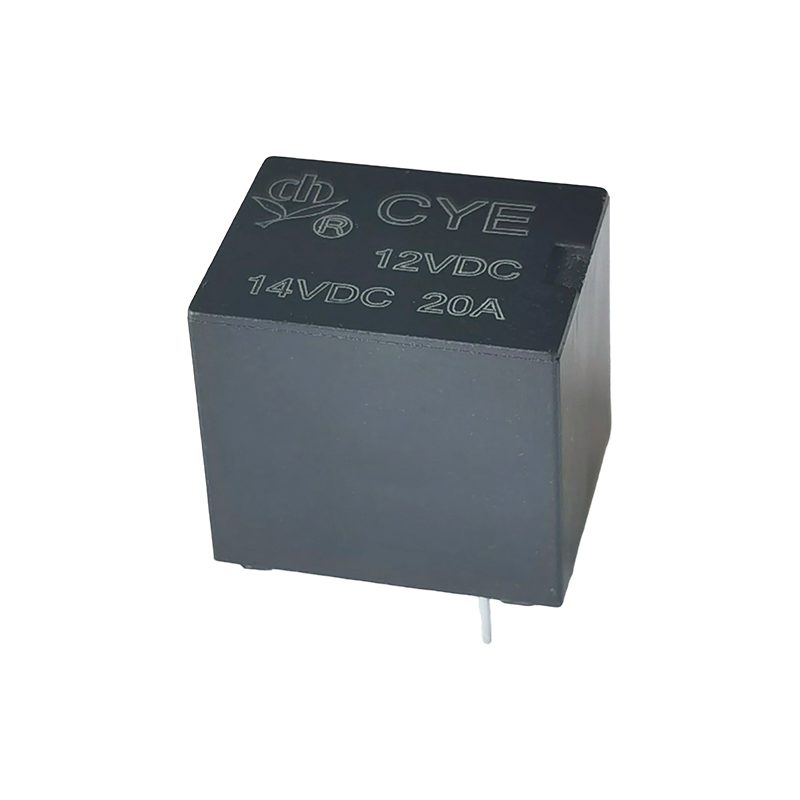

The CYE (T78) relay is an ultra-miniature high-power electromagnetic relay with a wide range of applications.
Its main uses include:
Automotive Sector: Commonly used in car door lock motor control, car anti-theft alarm systems, and signal switching and load control in automotive electronic equipment.
Home Appliances and Office Equipment: Suitable for power management or signal transmission in household appliances (such as air conditioners, washing machines) and office automation equipment.
Security and Alarm Systems: As a core component of automatic anti-theft alarms, it controls circuit switching.
Industrial Control and Automation: Used in industrial automation systems, instruments, and communication devices to control high-power loads with low-voltage signals.
Consumer Electronics and Emerging Technologies: Extended applications in smart homes, IoT devices, new energy equipment, and medical electronics.
Contact Data
|
Type
|
CYE
|
|
Contact material
|
Silver alloy
|
|
Contact resistance
|
100mΩ Max.(at 1A 6VDC)
|
|
Rated load (Resistive load）
|
20A 14VDC
|
|
Max. switching current
|
35A
|
|
Max. switching voltage
|
30VDC
|
|
Characteristics
|
|
Operate time (at rated coil voltage)
|
10ms Max. (No diode)
|
|
Release time
|
5ms Max. (No diode)
|
|
Insulation resistance
|
Min. 100MΩ (at 500VDC)
|
|
Dielectric strength
|
Between open contacts:500VAC, 50/60Hz for 1min
|
|
Between coil and contact : 500VAC , 50/60Hz for 1min
|
|
Vibration resistance
|
Functional
|
10-500Hz,NO-10G
|
|
10-500Hz ,NC-5G
|
|
Shock resistance
|
Functional
|
20g for NO/11ms.
5g for NC/11ms.
|
|
Destructive
|
100G Min.
|
|
Endurance
|
Mechanical endurance （10800ops./h)
|
10000000次
10000000 ops.(at room temperature)
|
|
Electrical endurance (360ops./h)
|
100000 ops.(at room temperature)
|
|
Ambient atemperature
|
-40℃~+125℃( no condensation)
|
|
Weight
|
Approx.6g
|
|
Nominal
voltage
(VDC)
|
Nominal
operating
current
±10%(mA)
|
Coil resistance
±10%(Ω)
|
Nominal operating
power
|
Operate voltage
(Max.)
|
Release voltage
(Min.)
|
Max. allowable voltage
|
|
6
|
100
|
60
|
Approx 0.6W
|
60% of nominal
voltage
|
10% of nominal
voltage
|
130% of nominal voltage
|
|
9
|
66.67
|
135
|
|
12
|
50
|
240
|
|
24
|
25
|
960
|
|
6
|
130
|
45
|
Approx 0.8W
|
57.5% of nominal
voltage
|
|
9
|
90
|
102
|
|
12
|
70
|
180
|
|
24
|
30
|
720
|
The data shown above are initial values. Do not apple maximum allowable voltage on coil for more than 10 minutes to avoid overheating of thd coil.

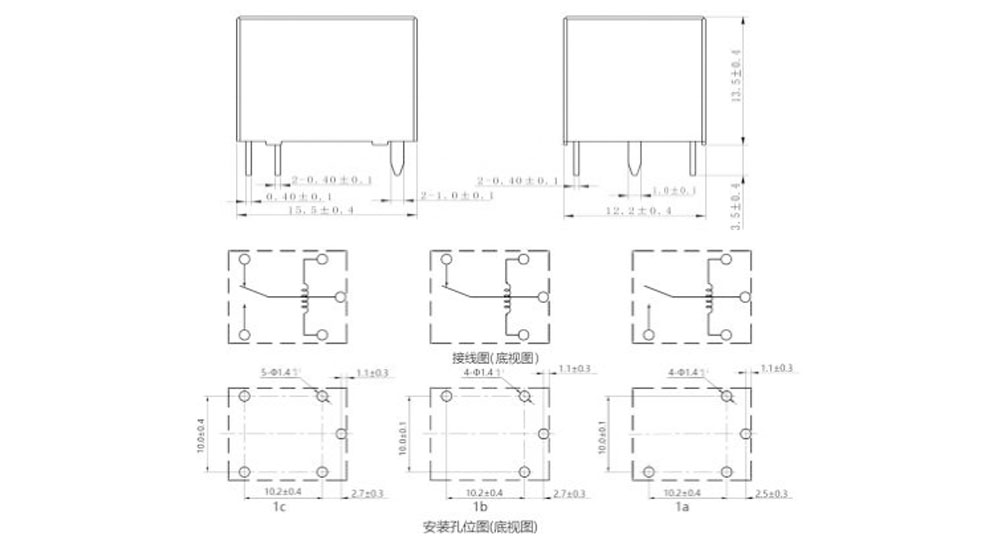

Outline dimension, Wiring diagram, PCB layout (Unit:mm)

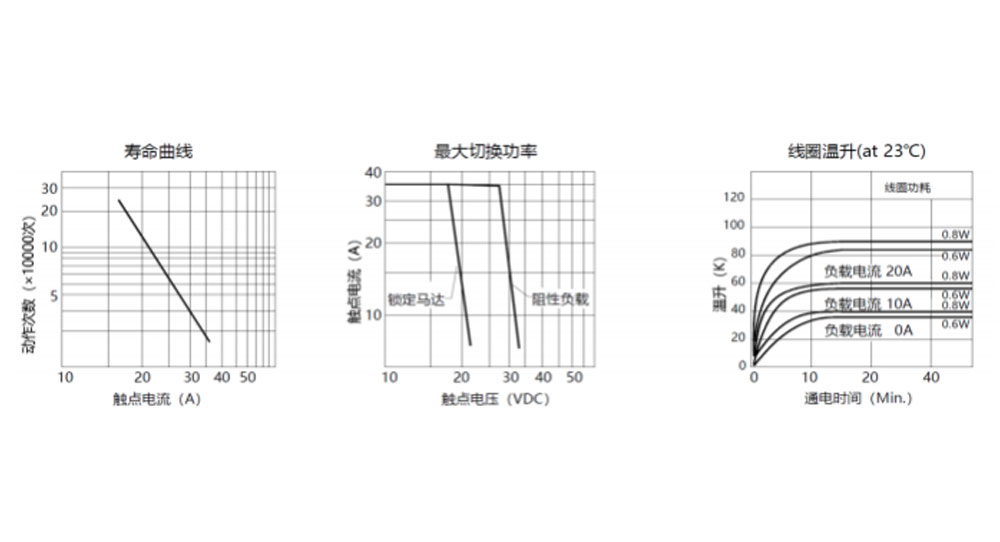

Characteristic Curves
Ordering Information
CYE - 1 - C - 12VDC - B - D - T - XX
1 2 3 4 5 6 7 8
1：Type：CYE
2: Number of Poles: 1-1Pole
3: Contact Arrangement: A-Form A ; B-Form B ; C-Form C
4: Nominal Voltage: 6,9,12,24VDC
5: Enclosure Color: B-Black
6: Coil Pwor: D-0.8W L-0.6W
7: Protective Construction: S-Flux proofed,
SH- Sealed type washable
8: Special Parameter: Nil-Standard type
Letter or number-Special requirement
Flux-proof relays can not be used in the environment with pollutants like H2S, SO2, NO2, dust, etc.
Water cleaning or surface processing is not suggested after the flux-proof relays are assembled on the PCB.
Disclaimer: The specification is for reference only. Specifications are subject to change without prior notice.
We could not evaluate all the performance and all the parameters for every possible application. Thus, the users should be in a right position to choose
Suitable product for their own application. For sealed relays, after installation and cleaning, please open the ventilation hole in the case before use. If there is any query, please contact Chengyuan for technical services. However, it is the user`s responsibility to determine which product should be used.
