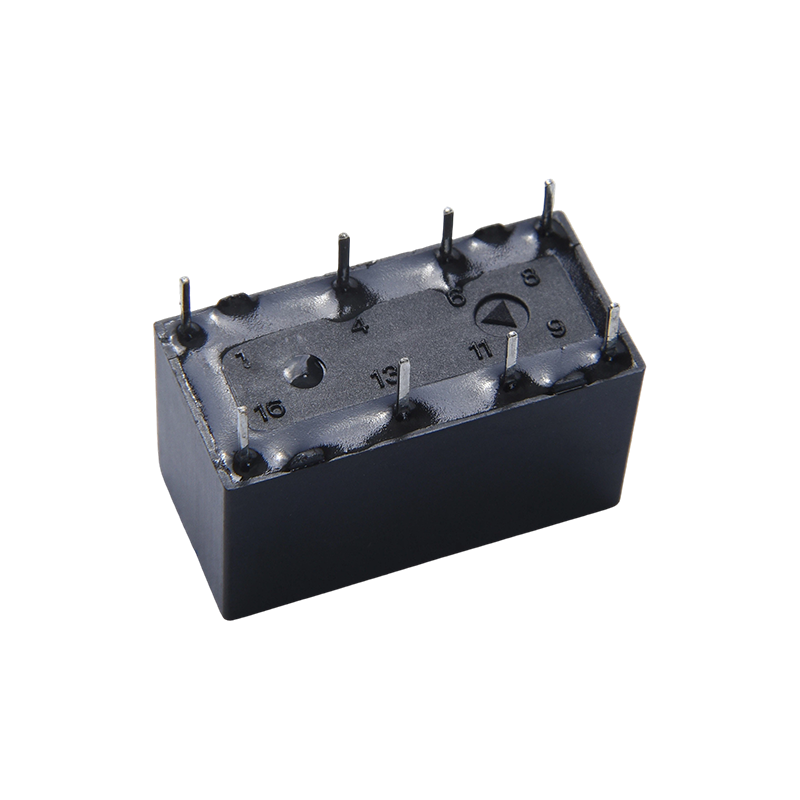

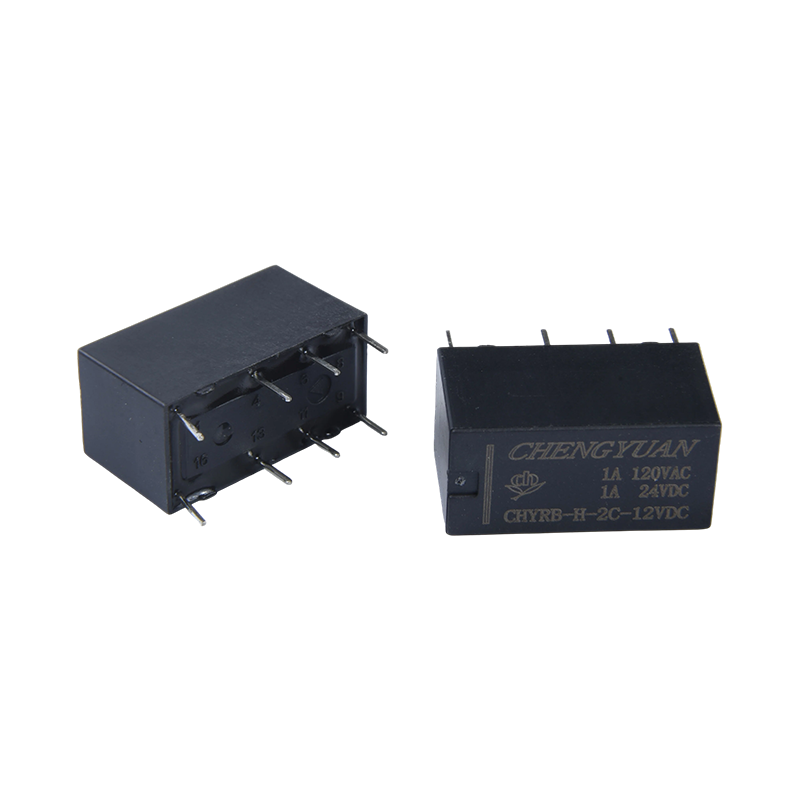

Key Features
Low Contact Resistance: The contact materials and structure are optimized for small signals, ensuring long-term stable conductivity and reducing signal attenuation.
High Isolation Voltage: High insulation voltage between the coil and contacts effectively prevents signal crosstalk and external interference.
Fast Response: The electromagnetic system design prioritizes operating speed, meeting the timing requirements for fast signal routing and switching in communication equipment.
Long Electrical Life: Provides excellent contact durability under rated load, ensuring the long-term reliability of the equipment.
Main Applications
Communication Equipment: Used for signal switching or power control in network switches, base stations, and other equipment to control the circuit on/off.
Office Equipment and Computer Peripherals: For example, printers, scanners, or UPS power supplies, controlling the start and stop of the main circuit via the relay.
Security Alarm Systems: As a switching element in alarm circuits, responding to control signals to trigger alarms or activate other devices.
Medical Equipment: Utilizes its electrical isolation characteristics to ensure patient and equipment safety, operating stably in diagnostic instruments or monitoring equipment.
Industrial Automation: Some models are suitable for PLC systems or motor control, enabling compact layouts through PCB soldering installation.
Contact Data
|
Type
|
CHYRB
|
|
Contact material
|
Silver alloy
|
|
Contact resistance
|
100mΩ Max.(at 1A 16VDC)
|
|
Rated load (Resistive load）
|
1A 120VAC
|
|
Max. switching current
|
2A
|
|
Max. switching voltage
|
277VAC
|
|
Max. switching power
|
554VA
|
|
Min. switching load
|
6V 1A
|
|
Characteristics
|
|
Operate time (at rated coil voltage)
|
7ms Max. (No diode)
|
|
Release time
|
4ms Max. (No diode)
|
|
Insulation resistance
|
Min 1000MΩ (at 500VDC)
|
|
Dielectric strength
|
Between open contacts:750VAC, 50/60Hz for 1min
|
|
Between coil and contact : 1000VAC , 50/60Hz for 1min
|
|
Vibration resistance
|
Destructive
|
10-55Hz ,at double amplitude of 1.5 mm
|
|
Functional
|
10-55Hz ,at double amplitude of 1.5 mm
|
|
Shock resistance
|
Functional
|
10G Min
|
|
Destructive
|
10G Min
|
|
Endurance
|
Mechanical endurance （10800ops./h)
|
10,000,000 ops.(at room temperature)
|
|
Electrical endurance (360ops./h)
|
100,000 ops.(at room temperature)
|
|
Ambient atemperature
|
-40℃ ~ +85℃( no condensation)
|
|
Weight
|
Approx.4.6g
|
|
Nominal
voltage
(VDC)
|
Nominal
operating
current
±10%(mA)
|
Coil resistance
±10%(Ω)
|
Nominal operating
power
|
Operate voltage
(Max.)
|
Release voltage
(Min.)
|
Max. allowable voltage
|
|
3
|
50
|
60
|
Approx 0.15W
|
75% of nominal
voltage
|
5% of nominal
voltage
|
130% of nominal voltage
|
|
5
|
30
|
167
|
|
6
|
25
|
240
|
|
9
|
16.6
|
540
|
|
12
|
12.5
|
960
|
|
24
|
6.25
|
3840
|
|
3
|
66.6
|
45
|
Approx 0.20W
|
|
5
|
40
|
125
|
|
6
|
33.3
|
180
|
|
9
|
22.2
|
405
|
|
12
|
16.6
|
720
|
|
24
|
8.3
|
2880
|
|
3
|
120
|
25
|
Approx 0.36W
|
|
5
|
72
|
69
|
|
6
|
60
|
100
|
|
9
|
40
|
225
|
|
12
|
30
|
400
|
|
24
|
15
|
1600
|
The data shown above are initial values. Do not apple maximum allowable voltage on coil for more than 10 minutes to avoid overheating of thd coil.

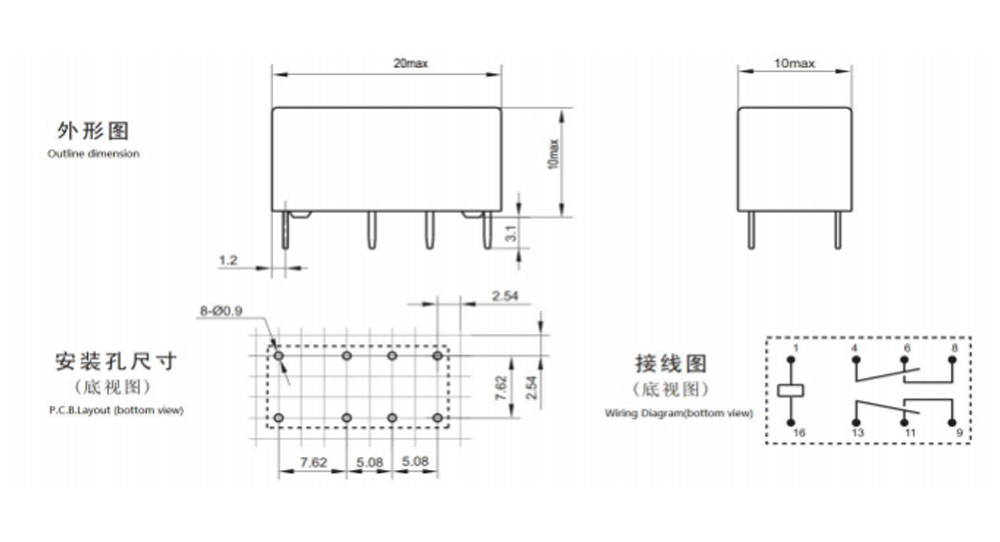

Outline dimension, Wiring diagram, PCB layout (Unit:mm)

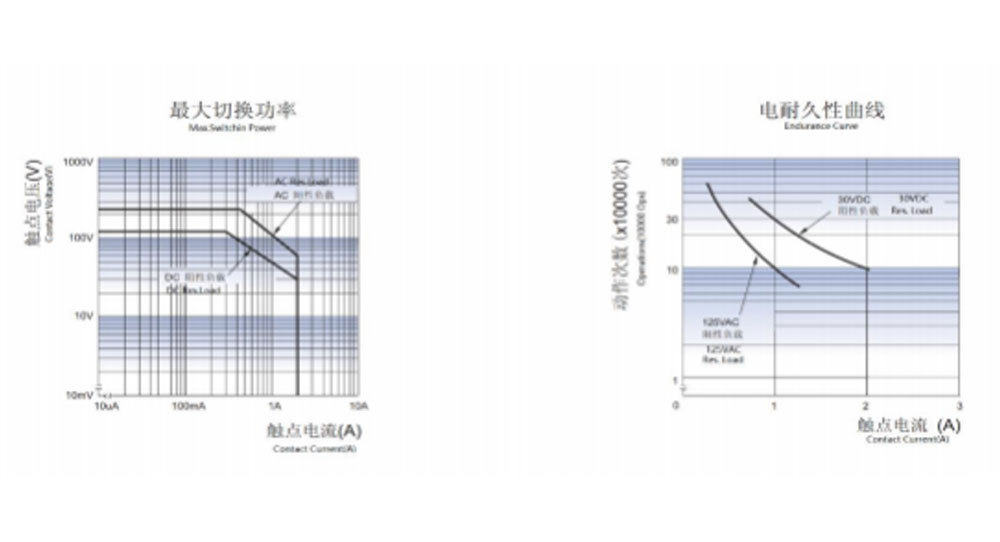

Characteristic Cuves
Ordering Information
CHYRB - 2 - C - 12VDC - H - D - S - XX
1 2 3 4 5 6 7 8
1： Type： CHYRB
2: Number of Poles: 2-2Pole
3: Contact Arrangement: C From C ; H From A ; B From B
4: Nominal Voltage: 3,5,6,9, 12, 18,24,48VDC
5: Enclosure Color, Y-Yellow; H-Black; L-Blue
6: Coil Pwor: D-0.36W H-0.2W
7: Protective Construction: S-Flux proofed,
SH- Sealed type washable
8: Special Parameter: Nil-Standard type
Letter or number-Special requirement
Flux-proof relays can not be used in the environment with pollutants like H2S, SO2, NO2, dust, etc.
Water cleaning or surface processing is not suggested after the flux-proof relays are assembled on the PCB.
A customized special suffix is available after being evaluated by CHENGYUAN.
Disclaimer: The specification is for reference only. Specifications are subject to change without prior notice.
We could not evaluate all the performance and all the parameters for every possible application. Thus, the users should be in the right position to choose
Suitable product for their own application. For sealed relays, after installation and cleaning, please open the ventilation hole in the case before use. If there is any query, please contact Chengyuan for technical services. However, it is the user`s responsibility to determine which product should be used.
